assembling _17
02 ASSEMBLING

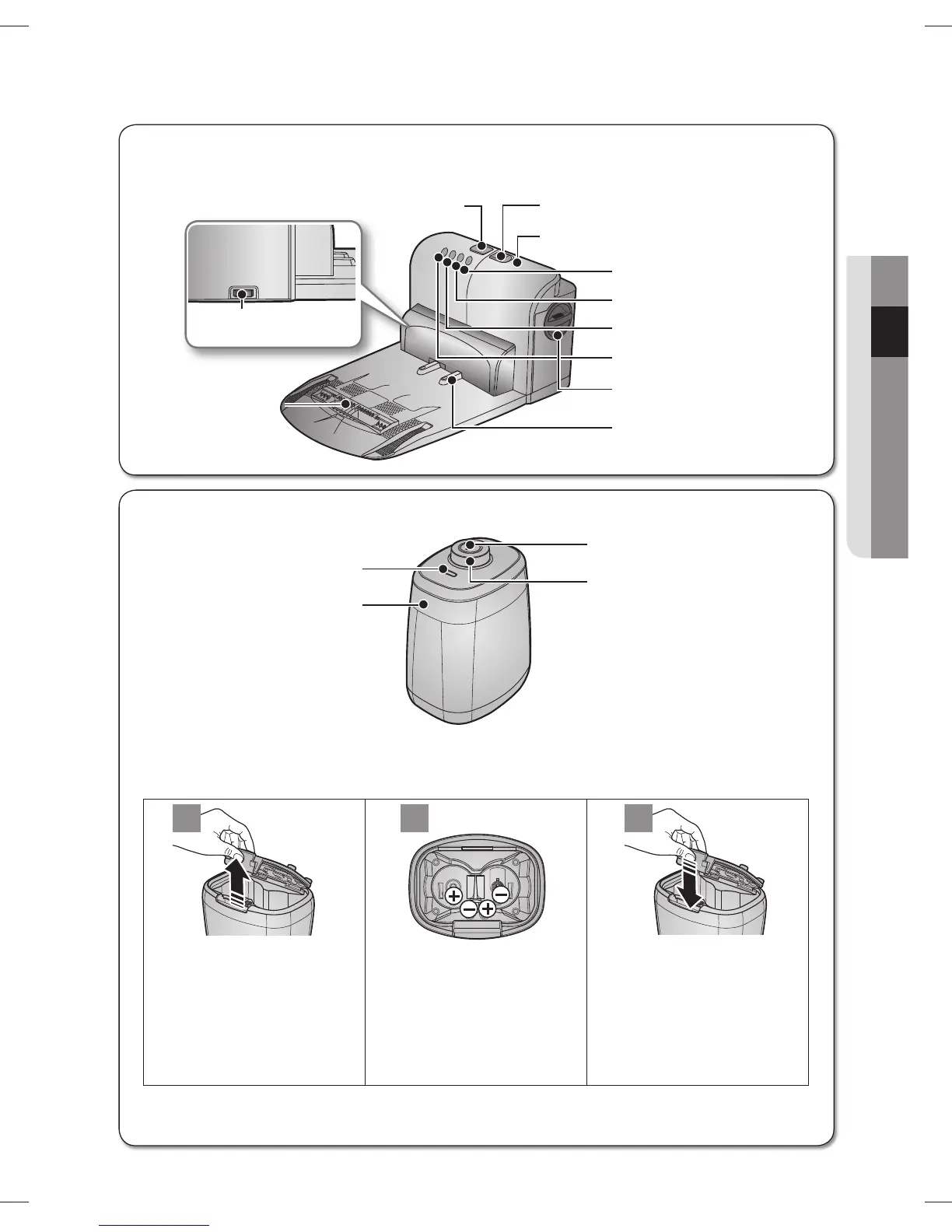

Charger (Station)
■
VIRTUAL GUARD
■
Power button
Dustbin removal button
Auto Empty On/Off Select button
Auto Empty On/Off Select button
Dust inlet of the
vacuum cleaning
robot dustbin
Dustbin
Full lamp (red)
Auto Empty lamp (red)
Charging lamp (green)
Power lamp (red)
Cyclone cap
Charging terminals
Distance Detection Sensor
Distance Detection Sensor
Lamp
Power Button
Main Body Detection Sensor
Main Body Detection Sensor
Installing the batteries
■
Batteries are not supplied with the product. You have to purchase the batteries separately. Install
the alkaline batteries (type D) before use.
1
2
3
Lift the cover of the VIRTUAL
GUARD while pressing the
locking tab.
Install the batteries into the
VIRTUAL GUARD as shown
by the fi gure below. (If the
batteries are installed with
the incorrect polarity, the
VIRTUAL GUARD will not
work.)
After inserting the tip of the
cover into the slot, push the
other end to close it until it
clicks into place.
Specifi cation: Alkaline Type D (LR20) batteries
❈
