Samwon Tech TEMI1000 Series - Pattern Graph Display

●Itconverttothe[Fig.6-2Graph&save#1screen],whenthe[Graph&Save]isselectedin[Fig.2-1Mainscreen].
●Thisscreendisplaysthetemperatureandhumidityoperationpatternandprogresstimeinprogramoperation.
●Itisascreentodisplaytheinputpatternin[Fig.7-2Patterneditingscreen].
●CanchangethestatusofTemperature•HumidityCheck,and,eveninthegraphscreen.
41
06. Setting graph display and save
4
2
3
5
6
7
7
1

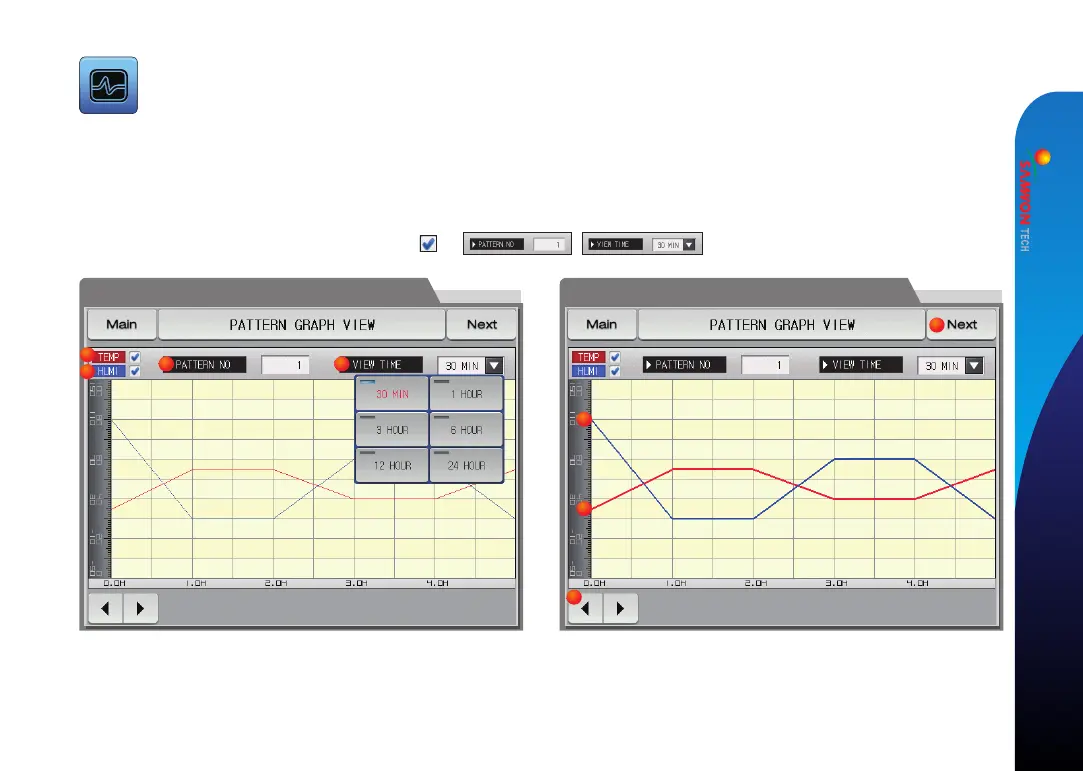

[Fig. 6-1] Graph & Save screen 1 (Program operation)
6-1. Pattern graph display
[Fig. 6-2] Graph & Save screen 1 (graph thinkness)
06. Setting graph display and save
