4th Edition of TEMI880 IM : Jan. 29. 2007 Page 20 / 119
2.2 Input Setting Value
▶ All of the Input value is setting by use setting value, pattern name and time signal input key.
▶ If user push setting value input button in the Table 1-1(General Setting Button), User can input
data value.
▶ For the Time Signal input key, See 2.10.4 Time Signal Setting Screen.
▶ For the Pattern Name input key, See 2.10.6 Pattern Name Setting Screen.

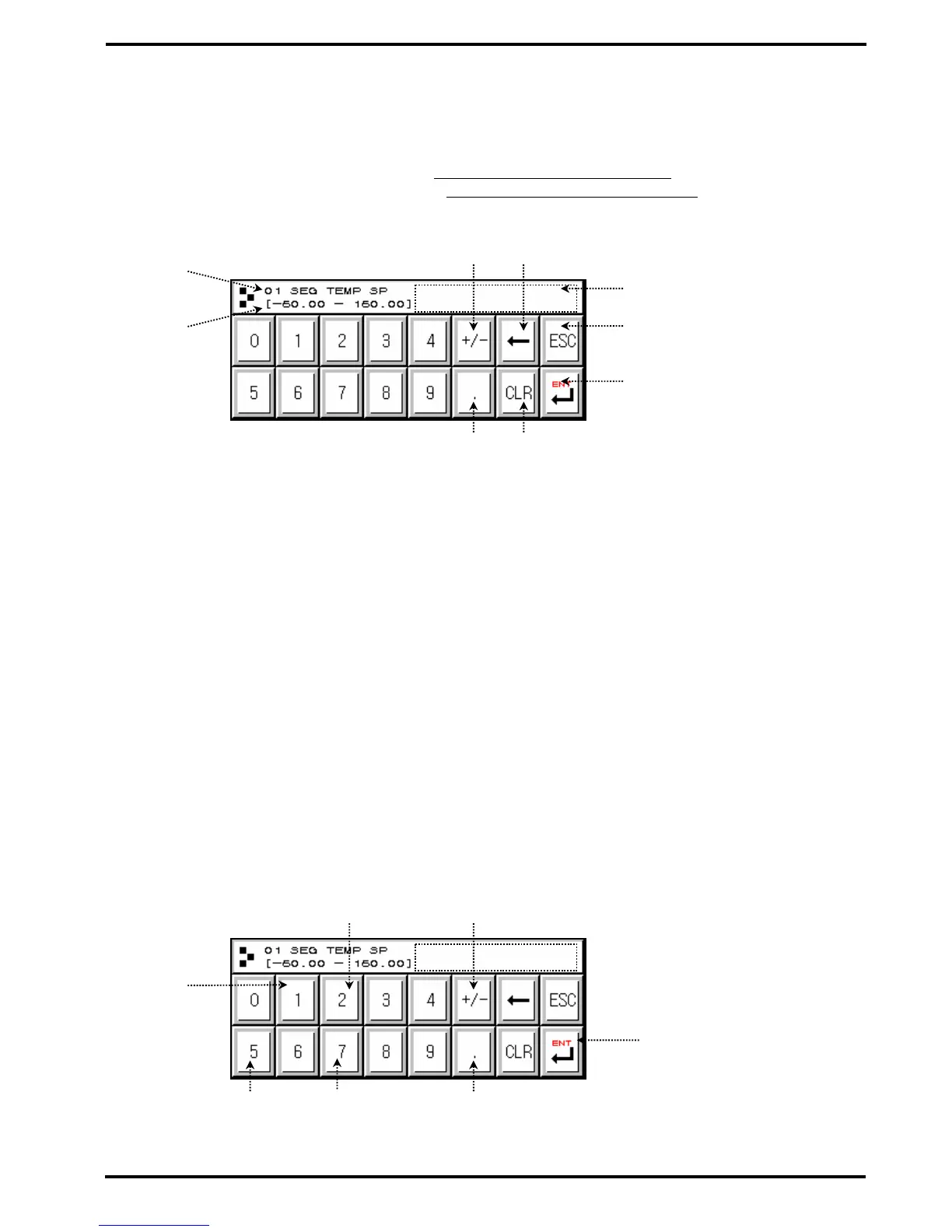

2.2.1 Function of setting value input key
○
1 Parameter.
○
2 Valid data range.
○
3 -LIMIT ERR display when user input invalid setting value.
○
4 Cancel input setting value.
○
5 Clear input data.
○
6 Decimal point.
○
7 Save input data and go to main page.
○
8 Modify the input data, delete one by one.
○
9 Input sign(+ or -).
2.2.2 Parameter Setting
▶ Following figure show how to change setting value -50.00 to -12.57.
→ Select setting value input button.
→ Input the value(
○
1→
○
2 →
○
3→
○
4→
○
5→
○
6 ) and ENT key(
○
7).
○
1
○
2
○
3
○
4
○
5
○
6
○
7
○
8
○
9
○
2
○
5
○
4
○
7
○
3
○
1
○
6
