2.12.7 Communication Setting Screen
▶ This is the screen about communication setting.

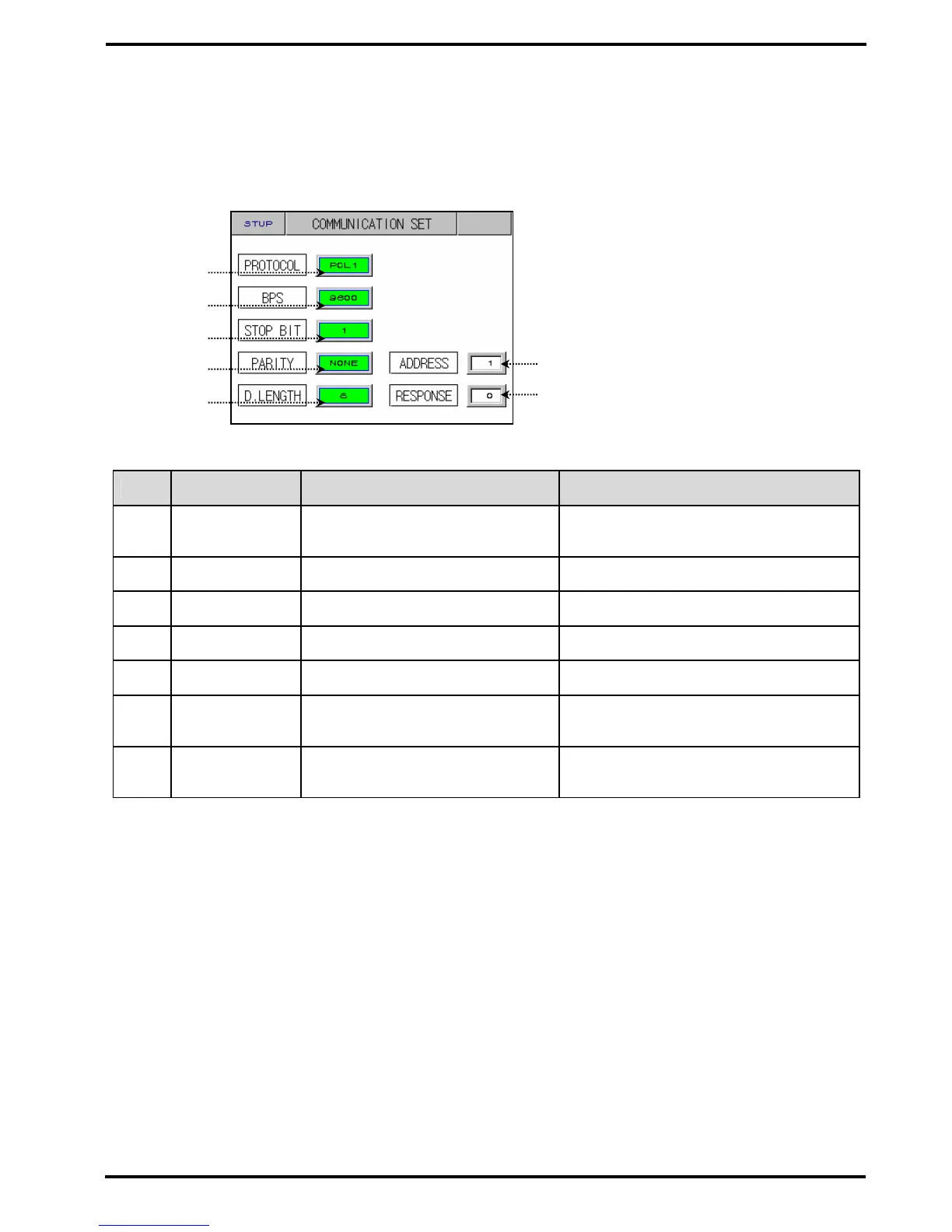

Figure 2-65. Communication Setting Screen
No. Contents Description Additional Description
○
1
PROTOCOL Set communication protocol.
▶ TEMI880 monitoring program uses
PC LINK1(Check Sum).
○
2
BIT PER SEC Set board rate.
○
3
STOP BIT Set stop bit.
○
4
PARITY Set parity
○
5
DATA LENGTH Set data length.
○
6
ADDRESS Set address. ▶ RS232C – 1:1, RS485C – 1:99
○
7
RESPONSE
TIME
Set response time
○
