2.12 System Setting Screen
▶ This is the screen about the initial setting.
▶ Set password : See 2.12.8 Initial Display and Status Display Lamp Setting Screen

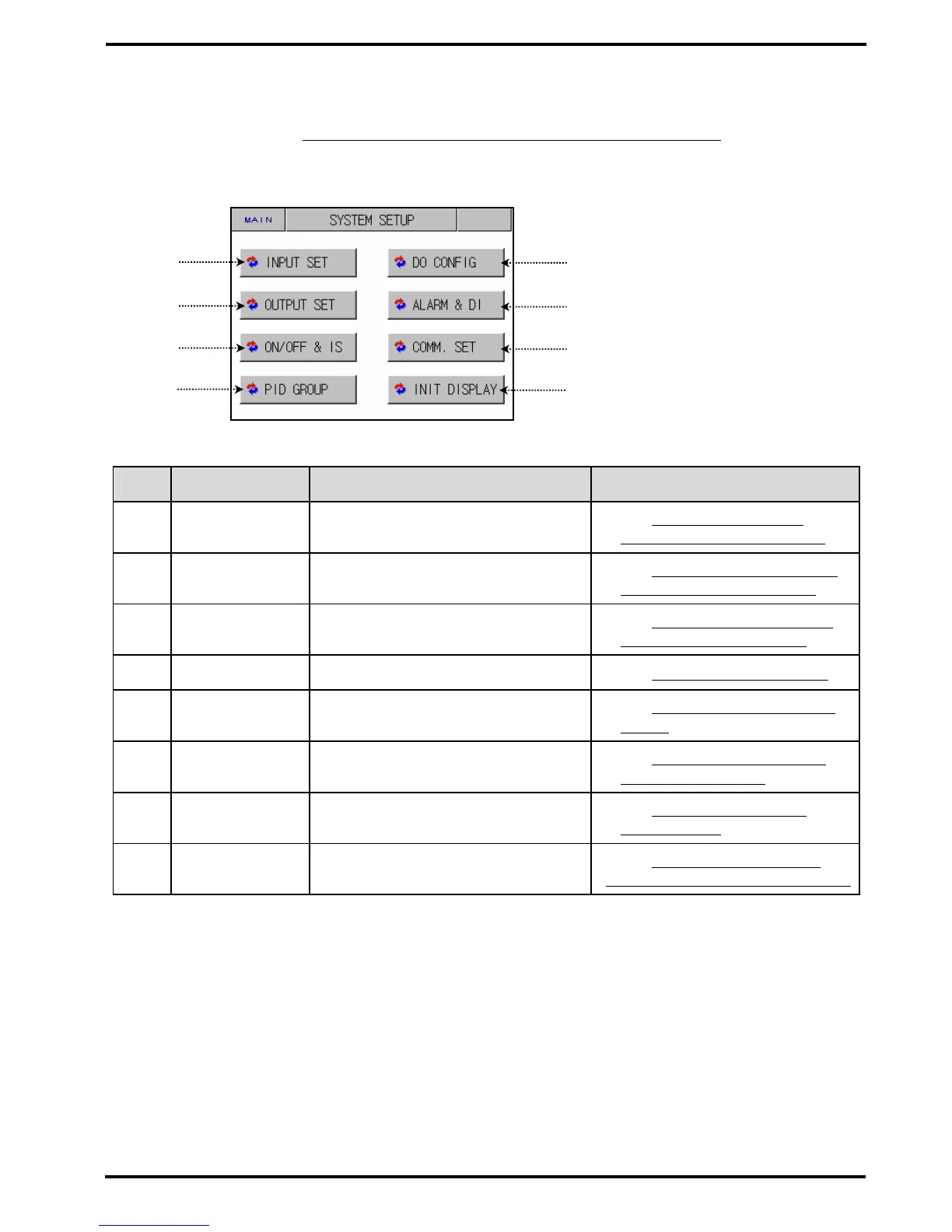

Figure 2-39. System Setting Screen
No. Contents Description Additional Description
○
1
INPUT SET
Move input and input compensation
setting screen.
▶ See 2.12.1 Input and Input
Compensation Setting Screen
○
2
OUTPUT SET
Move control output and transmission
setting screen.
▶ See 2.12.2 Control Output and
Transmission Setting Screen
○
3
ON/OFF & IS SET
Move ON/OFF signal and IS signal
setting screen.
▶ See 2.12.3 ON/OFF Signal and
Inner Signal Setting Screen
○
4
PID GROUP Move PID setting screen. ▶ See 2.12.4 PID Setting Screen
○
5
DO CONFIG Move DO CONFIG setting screen.
▶ See 2.12.5 DO CONFIG Setting
Screen
○
6
ALARM & DI Move alarm and DI setting screen.
▶ See 2.12.6 Alarm and DI Error
Name Setting Screen
○
7
COMM. SET Move communication setting screen.
▶ See 2.12.7 Communication
Setting Screen
○
8
INIT DISPLAY
Move initial display and status display
lamp setting screen.
▶ See 2.12.8 Initial Display and
Status Display Lamp Setting Screen
○
1
○
5
○
2
○
3
○
6
○
7
○
4
○
8
