▶ DELAY TIME is setting at Figure 2.12.5 DO CONFIG Setting Screen.
☞ DELAY TIME applys to Power On in the first place.
▶ LSP = LOW SP, MSP = MIDDLE SP, HSP = HIGH SP, NPV = NOW PV, NSP = NOW SP
▶ LD = LOW DIFFERENCE, HD = HIGH DIFFERENCE, T = ON/OFF SIGNAL
▶ ON/OFF Signal Action

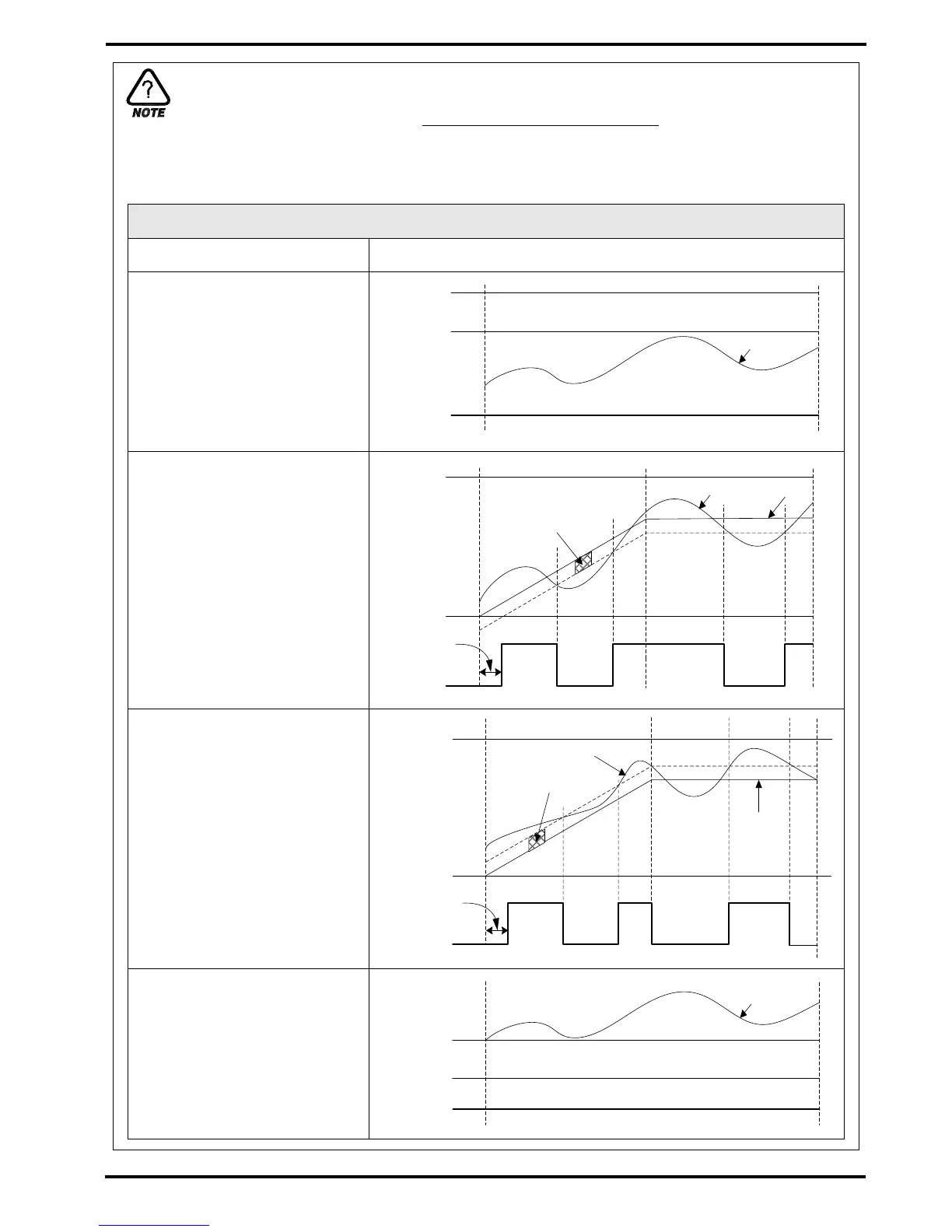

Setting ON/OFF Signal Action
○
1 NPV < LSP
▶ ALWAYS : OFF
○
2 LSP ≤ NPV < MSP
▶ NPV ≥ NSP – LD : ON
▶ NPV < NSP – LD ::: OFF
○
3 MSP < NPV ≤ HSP
▶ NPV ≥ NSP + HD : ON
▶ NPV < NSP + HD ::: OFF
○
4 NPV > HSP
▶ ALWAYS : OFF
ON/OFF Signal Action
MSP
LSP
T
OFF
NPV
MSP
LSP
T
NPV
DELAY TIME
NSP
ON
OFF
ON
OFF
ON
LD
HSP
MSP
T
NPV
DELAY TIME
NSP
ON
OFF
ON
OFF
ON
HD
