SAMWONTECH
4th Edition of TEMI880 IM : Jan. 29. 2007 Page 7 / 119

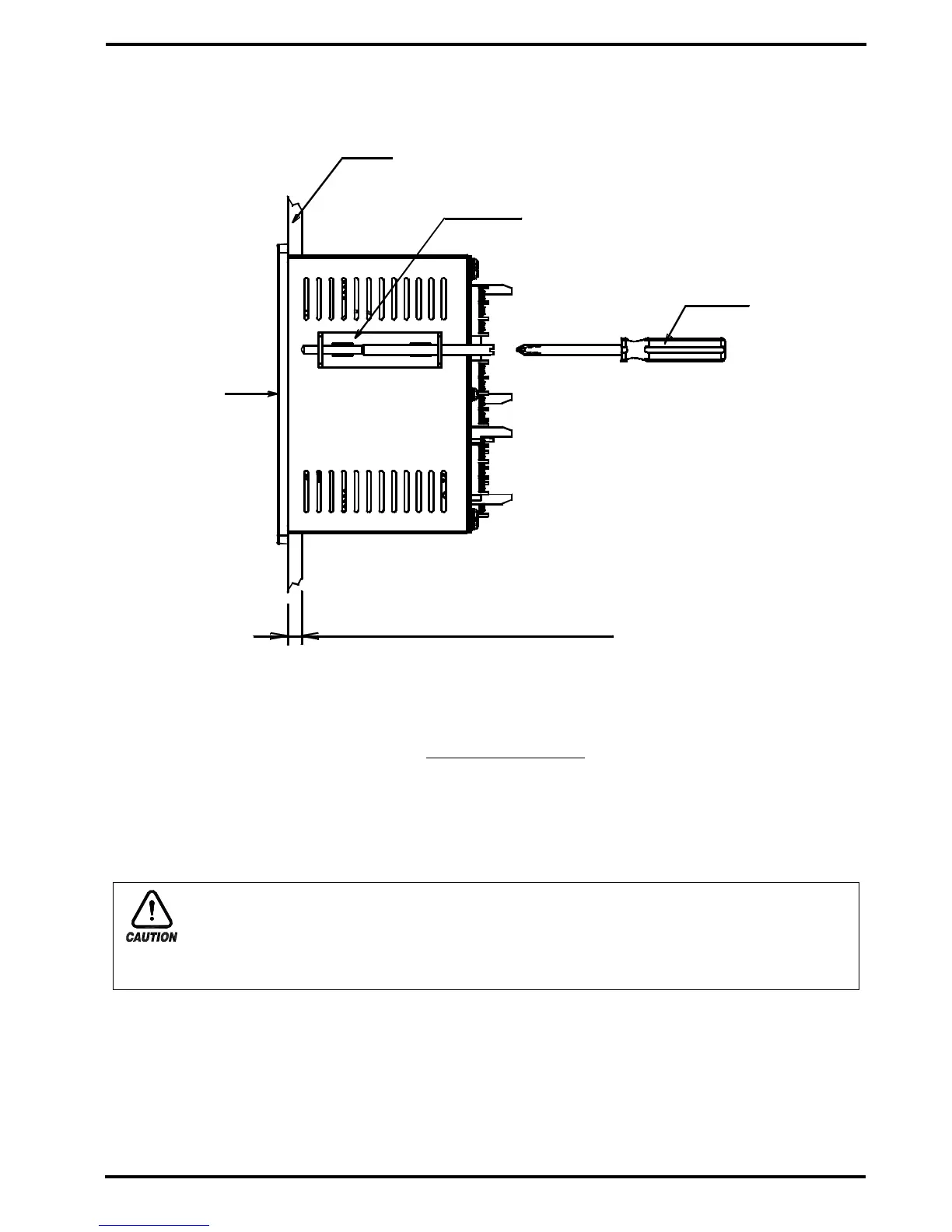

1.3.5 Installation (Mount)
○
1 Cut the mounting panel as Section.( See 1.3.4. PANEL CUTTING)
○
2 Insert the unit from its back terminal board side.
○
3 Attach the left and right brackets to the unit to fix the unit to the mounting panel. (use screwdriver)
▶ Do not tighten the mounting screw excessively, the unit case or bracket may be damaged.
CAUTION(Mount)
Panel Thickness: 1 (0.04) ~ 10 (0.39) mm
( ) : inch
Screwdriver
Mount
Insert
PANEL
To Next Page
