S&C IntelliCap 2000 - Page 10

Installing the Capacitor Control

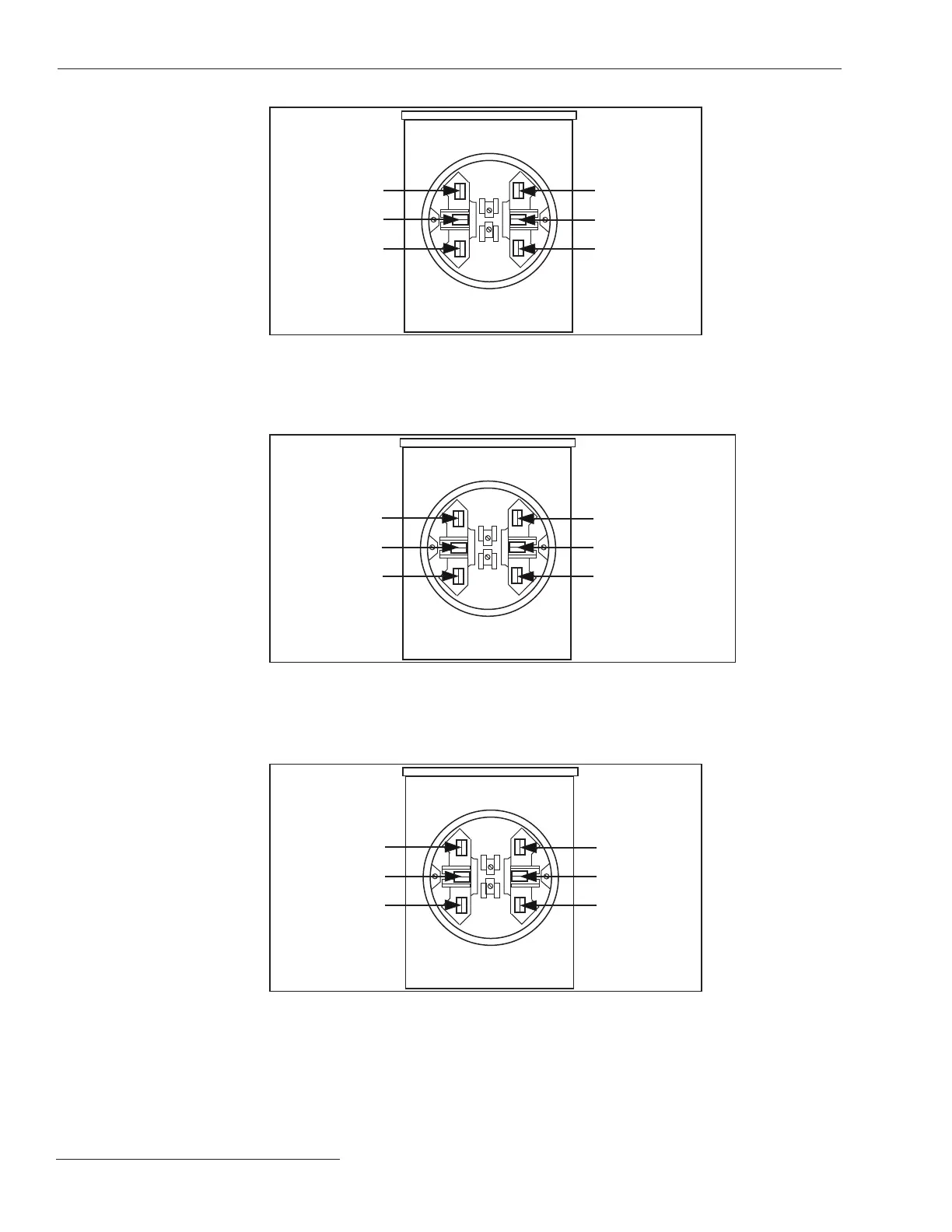

Figure 6. Six-jaw meter base socket configuration for capacitor controls with catalog
number suffix -J62.
Figure 7. Six-jaw meter base socket configuration for capacitor controls with catalog
number suffix -J63.
Ac line
Open
Ac neutral
Close
Current sensor
neutral
Current sensor hot
Ac line
Open
Ac neutral
Close
Current sensor
neutral
Current sensor
hot
Figure 5. Six-jaw meter base socket configuration for capacitor controls with catalog number
suffix -J61.
Ac line
Open
Ac neutral
Close
Current sensor
neutral
Current sensor
hot
10 S&C Instruction Sheet 1024-510
