S&C IntelliCap 2000 User Manual

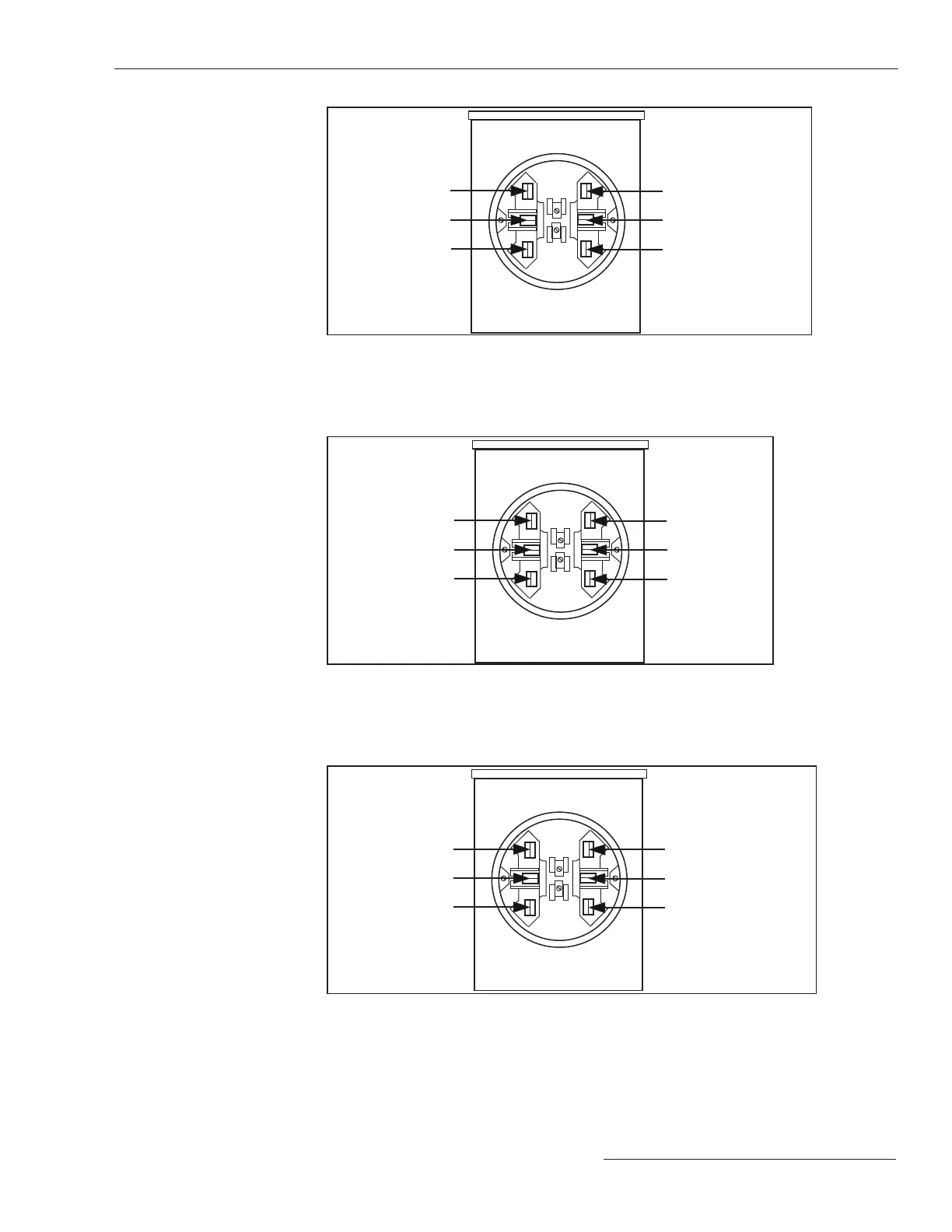

Figure 8. Six-jaw meter base socket configuration for capacitor controls with catalog
number suffix -J64.
Figure 9. Six-jaw meter base socket configuration for capacitor controls with catalog
number suffix -J65.
Figure 10. Six-jaw meter base socket configuration for capacitor controls with catalog
number suffix -J68.
Ac line
Open
Ac neutral & current
sensor neutral
Close
Current sensor
hot (alternate)
Current sensor
hot
Ac line
Open
Ac neutral
Close
Not connected
Not connected
Ac neutral
Close
Neutral sensor hot
Ac line
Open
Neutral sensor
return
Installing the Capacitor Control
S&C Instruction Sheet 1024-510 11
