S&C IntelliCap 2000 User Manual

STEP 2. Ground the control enclosure.
Use the ground lug on the bottom of the control enclosure to ground the enclo-
sure. See Figure 11 and Figure 12 on page 13. The ground lug will accommodate
up to #2 copper or aluminum, solid or stranded, wire. Ground impedance must be
25 ohms or less to properly protect the equipment.
WARNING
The control must be properly grounded. You must read and understand
all applicable grounding codes and requirements for your service area
before installing this device.

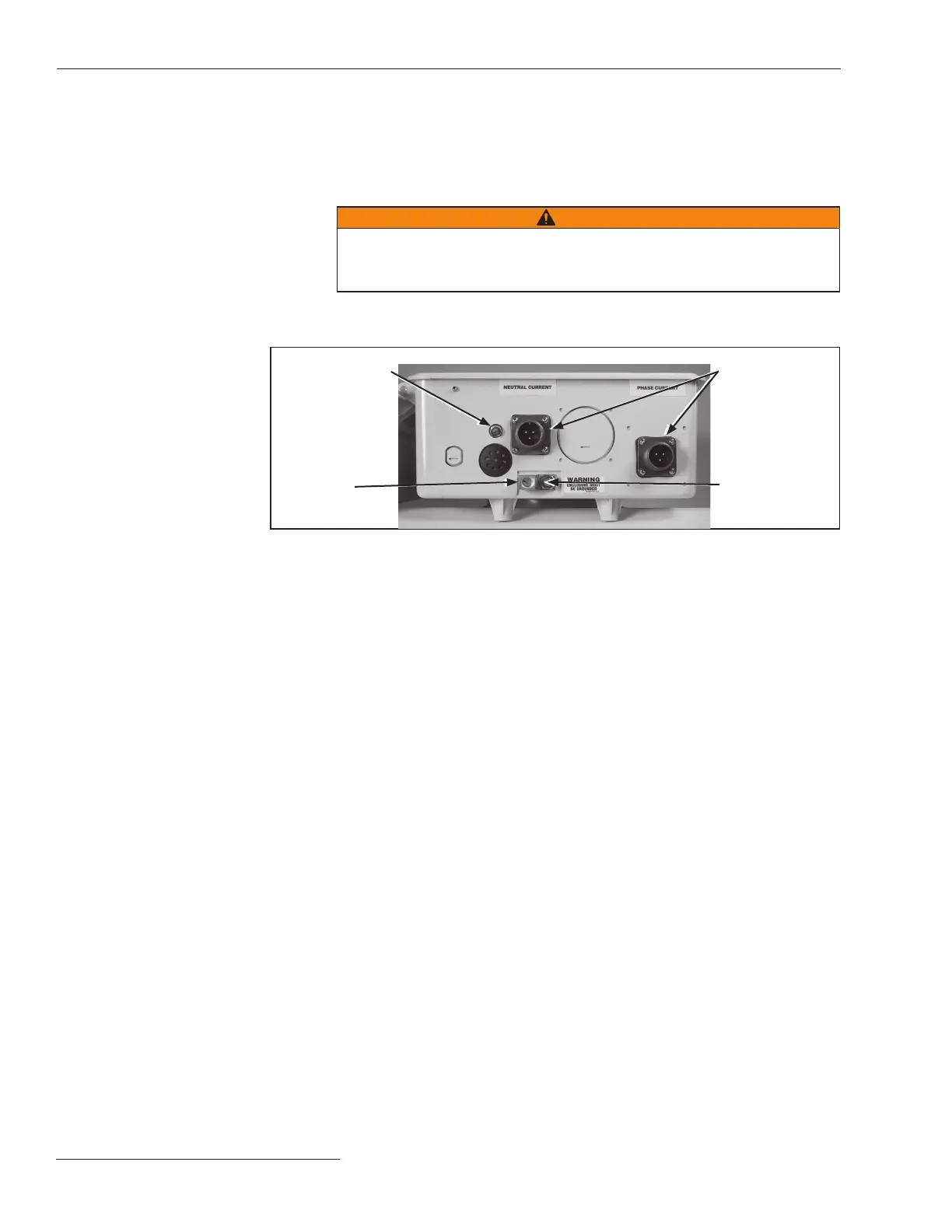

Figure 11. Ground lug on the bottom of the enclosure.
Installing the Capacitor Control
Neutral current/
neutral voltage
lockout
indicator LED
(optional)
Sensor input
connectors
Ground lug Temperature
sensor
12 S&C Instruction Sheet 1024-510
