S&C IntelliRupter PulseCloser Instruction Sheet

Communication Module

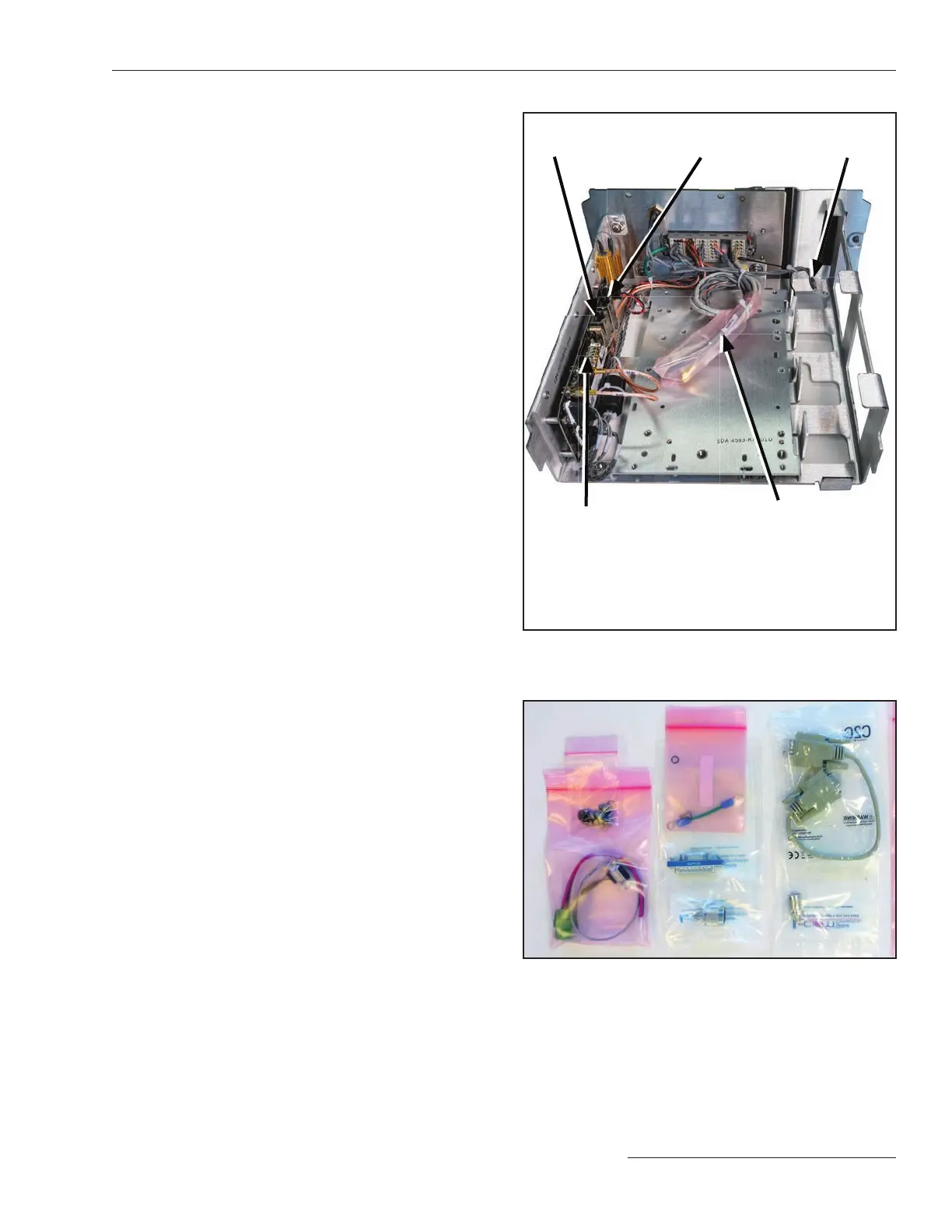

Figure 9. Radio tray mounting plate.
The radio tray mounting plate, with connections for
power, data, and antenna, will be accessible. See Figure 9.
STEP 4. Install the radio on the mounting plate using the
furnished hardware. See Figure 11 on page 12.
The Radio Ready option includes a bag of parts
for the radio ordered. Most bags include only a
power-adapter cable and the radio-mounting
screws. See Figure 10.
STEP 5. The wiring harness on most radios includes a
power plug and a serial or Ethernet data-port
connector. Insert the power plug in its
receptacle. If applicable, insert the control’s
Ethernet 1 connector in its receptacle and insert
the serial-to-Wi-Fi connector in its receptacle
on the radio and in the receptacle on the Wi-Fi
circuit board. See Figure 12 on page 12. The
connection to the Wi-Fi board is for maintenance
or programming of the communication device
over Wi-Fi, not for data transfer.
When the radio does not have an Ethernet
port, insert the serial connector in the pink
plastic bag in the transparent (main) serial
connector on the radio. Then, if applicable,
insert the serial-to-Wi-Fi connector in the LAN
(secondary) serial connector on the radio and in
the receptacle on the Wi-Fi circuit board.
Figure 10. Radio hardware and cables; catalog number
SDA-4747 is shown.
Battery
connector
Wi-Fi/GPS module
Ethernet 1
Wi-Fi/GPS module
Ethernet 2
Serial-to-Wi-Fi input
for communication
device configuration
The following will be found in
the connector bundle:
• Radio power plug
• Control Ethernet 1 connector
• Control Ethernet 2 connector
• Radio antenna connector
• Radio serial connector
S&C Instruction Sheet 766-520 11
