Sandpiper s05 User Manual

s05mdl1sm-REV0708 Model S05 Metallic Page 14
14
37
27
37
10
30
8
20
3
22
18
23
25
13
10
10
37
9
29
9
10
37
37
27
2
29
36
29
10
21
1
26
12
10
37
35
32
28
7
33
34
6
31
19
15
2
29
29
36
29
23
27
37
29
9
37
5
11
10
24
37
9
37
9
10
15
16
30
*OVERLAY OPTION
4
18
17

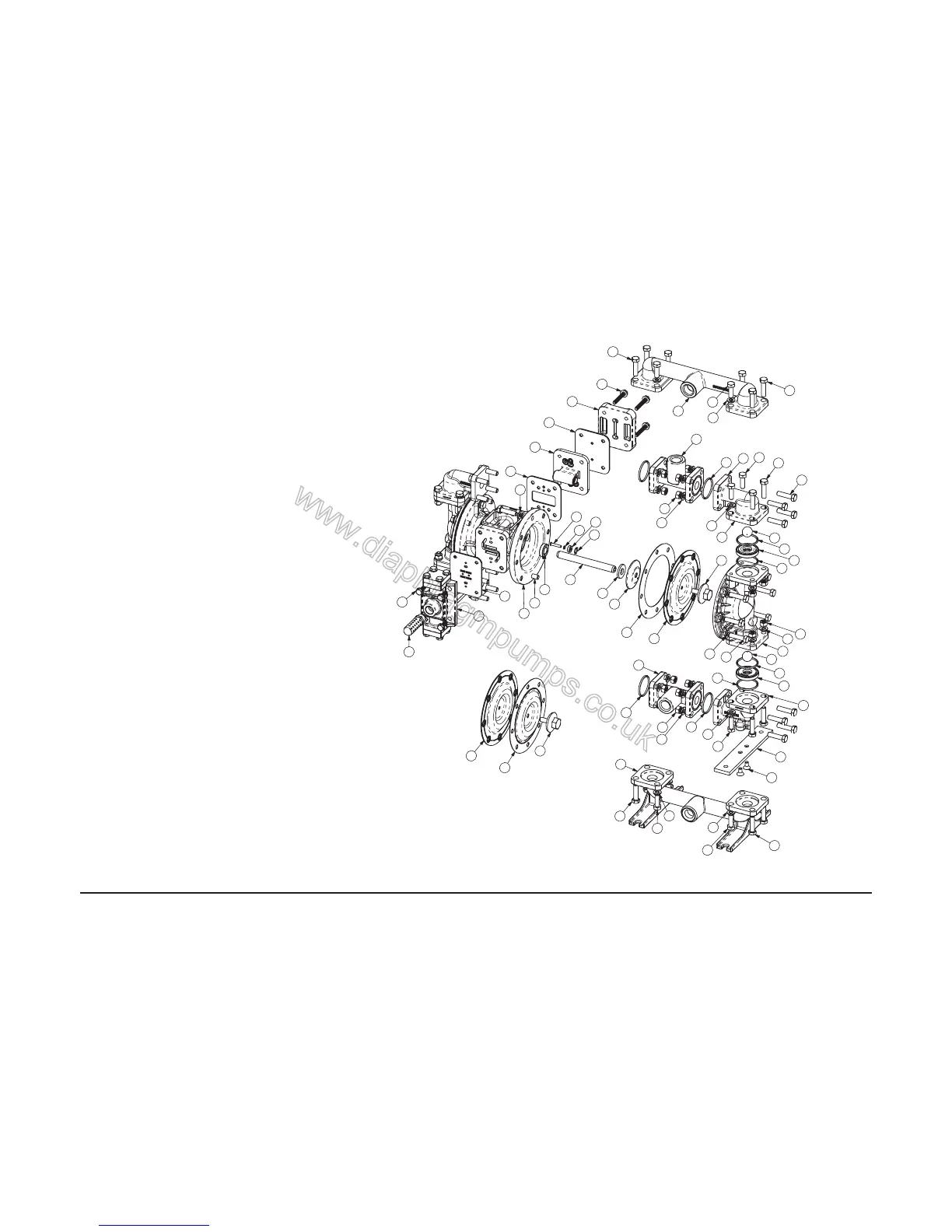

Composite Repair Parts Drawing
Available Service and Conversion Kits
PART NO. DESCRIPTION
476-239-000 AIR END KIT
Seals, O-rings, Gaskets, Bumpers, Retainers, Air Valve
Assembly and Pilot Valve Assembly.
476-240-000 AIR END KIT for pumps equipped with Stroke Indicator
(same components as above, except Air Valve Assembly
with pins replaces Air Valve Standard).
476-199-354 WETTED END KIT
Santoprene Diaphragm, Santoprene Check Balls,
UHMW Seats, Nitrile Spacer Gasket.
476-199-356 WETTED END KIT
Hytrel Diaphragm, Hytrel Check Balls, UHMW Seats.
476-199-360 WETTED END KIT
Nitrile Diaphragm, Nitrile Check Balls, UHMW Seats.
476-199-661 WETTED END KIT
EPDM Diaphragm, Santoprene Check Balls,
UHMW Seats.
476-199-365 WETTED END KIT
Neoprene Diaphragm, Neoprene Check Balls,
UHMW Seats.
476-199-633 WETTED END KIT
FKM Diaphragm, PTFE Check Balls, PTFE Seats.
476-199-650 WETTED END KIT
PTFE and Santoprene Diaphragm, PTFE Check Balls,
PTFE Seats.
476-199-654 WETTED END KIT
Santoprene Diaphragm, PTFE Overlay Diaphragm,
PTFE Check Balls, PTFE Seats.
476-199-659 WETTED END KIT
One-PIece Bonded PTFE/Nitrile Diaphragm,
PTFE Balls, PTFE Seats.
