Sandpiper s05 User Manual

s05mdl1sm-REV0708 Model S05 Metallic Page 16

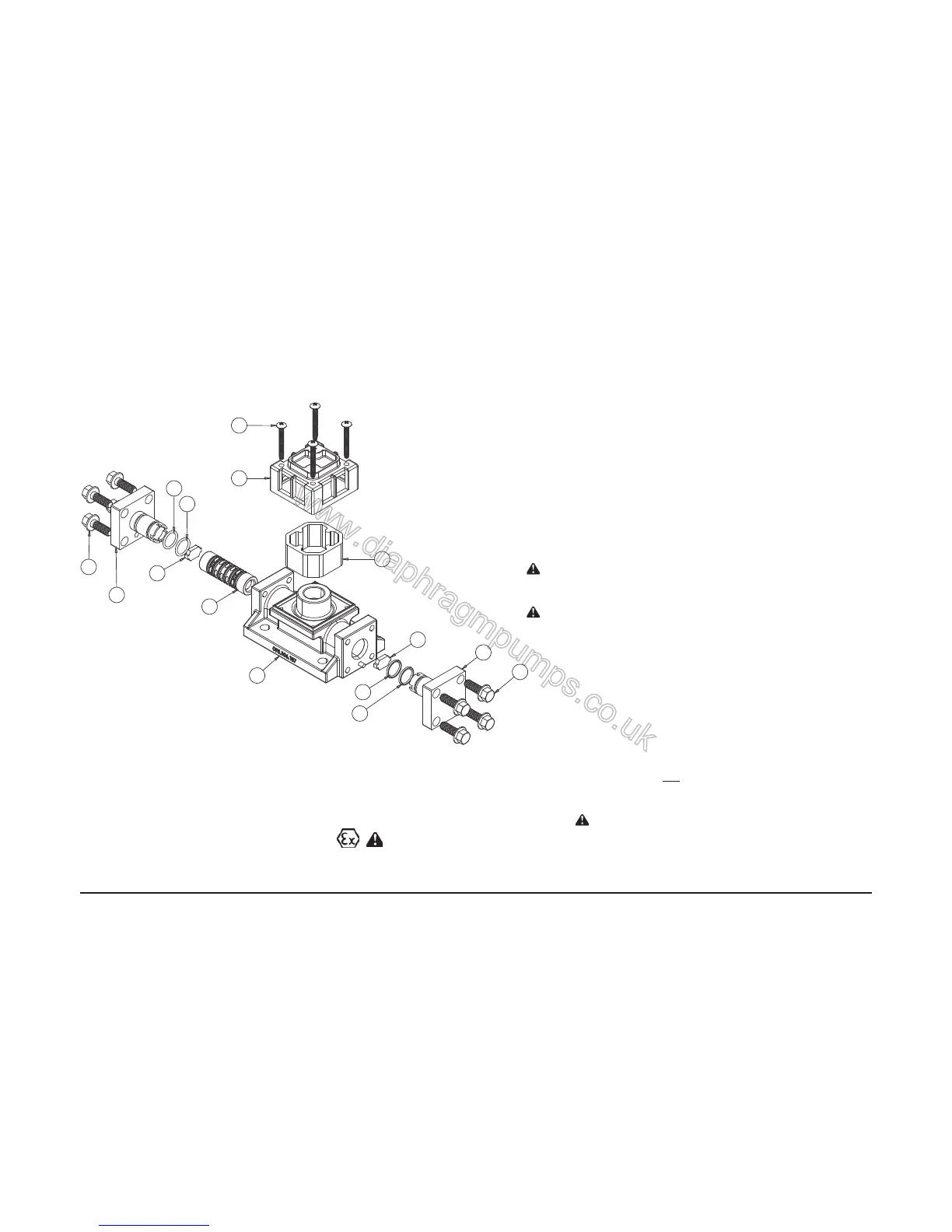

Distribution Valve Assembly Drawing
1-E
1-D
1-C
1-F
1-F
1-A
1-B
1-C
1-F
1-F
1-D
1-E
1-I
1-H
1-G
MAIN AIR VALVE ASSEMBLY PARTS LIST
ITEM PART NUMBER DESCRIPTION QTY
1 031-191-000 Valve Assembly 1
1-A 031-132-000 Sleeve and Spool Set 1
1-B 095-106-157 Valve Body 1
1-C 132-038-357 Bumper 2
1-D 165-128-157 End Cap 2
1-E 171-076-330 Hex Flange Capscrew 1/4-20 x .75 8
1-F 560-101-360 O-ring 4
1-G 530-031-550 Muffl er 1
1-H 165-109-551 Muffl er Cap 1
1-I 706-027-330 Machine Screw 4
ITEM PART NUMBER DESCRIPTION QTY
1 031-191-003 Valve Assembly 1
(same as above 031-191-003 except items 1-E, and 1-I)
1-E 171-076-115 Hex Flange Capscrew 1/4-20 x .75 8
1-I 706-027-115 Machine Screw 4
MAIN AIR VALVE ASSEMBLY PARTS LIST
ITEM PART NUMBER DESCRIPTION QTY
1 031-186-000 Valve Assembly 1
(Same as above 031-191-000 minus items 1-G, 1-H, and 1-I)
ITEM PART NUMBER DESCRIPTION QTY
1 031-186-003 Valve Assembly 1
(Same as above 031-186-003 except item 1-E)
1-E 171-076-115 Hex Flange Capscrew 1/4-20 x .75 8
Note: Atex Compliant
NOTE: Pumps equipped with this valve
assembly are ATEX compliant when a metal
muffl er is used.
NOTE: Pumps equipped with integral
muffl ers are not ATEX compliant.
*
*
*
