Sandpiper S07 - Air Distribution Valve Assembly

s07nmdl1sm-rev0817
sandpi p erpump .com
12 • Model S07 Non-Metallic
Air Distribution Valve Assembly
ATEX Compliant
**Note: Pumps equipped with this valve assembly are not
ATEX compliant.
IMPORTANT
Read these instructions completely, before installation
and start-up. It is the responsibility of the purchaser
to retain this manual for reference. Failure to comply
with the recommendations stated in this manual will
damage the pump, and void factory warranty.

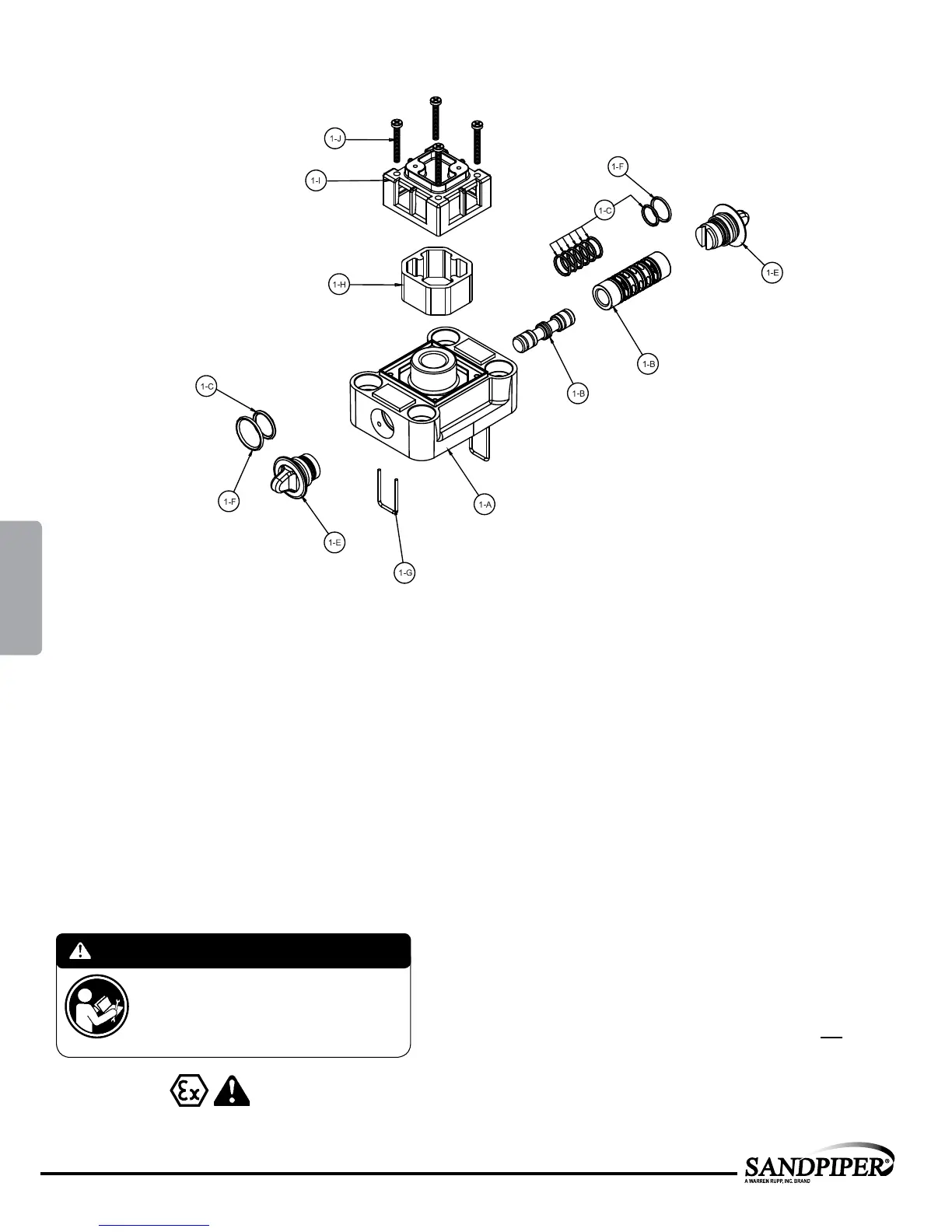

MAIN AIR VALVE ASSEMBLY PARTS LIST
Item Part Number Description Qty
1 031-166-000 Air Valve Assembly 1
1-A 095-106-551 Body, Air Valve 1
1-B 031-132-000 Sleeve and Spool Set 1
1-C 560-101-360 O-Ring 8
1-E 165-122-551 End Cap 2
1-F 560-026-360 O-Ring 2
1-G 675-062-115 End Cap Retainer 2
1-H 530-031-550 Mufer 1
1-I 165-109-551 Mufer Cap 1
1-J 710-011-115 Self-Tapping Screw 4
For Pumps with Virgin PTFE coated hardware:
1 031-166-002 Air Valve Assembly 1
1-G 675-062-308 End Cap Retainer 2
1-J 710-011-308 Self Tapping Screw 4
(Includes all other items used on 031-166-000 above)
For Pumps with alternate Mesh or Sound Dampening Mufers or Piped
Exhaust:
1 031-168-000 Air Valve Assembly 1
(Includes all items used on 031-166-000 above minus 1-H, 1-I and 1-J)
4: AIR END
