Model S07 Non-Metallic • 5
S07 Non-Metallic-Metric
Dimensions in inches (mm dimensions in brackets). Dimensional Tolerance:±1/8" (± 3mm)
The dimensions on this drawing are for reference only. A certied drawing can be requested if physical dimensions are needed.

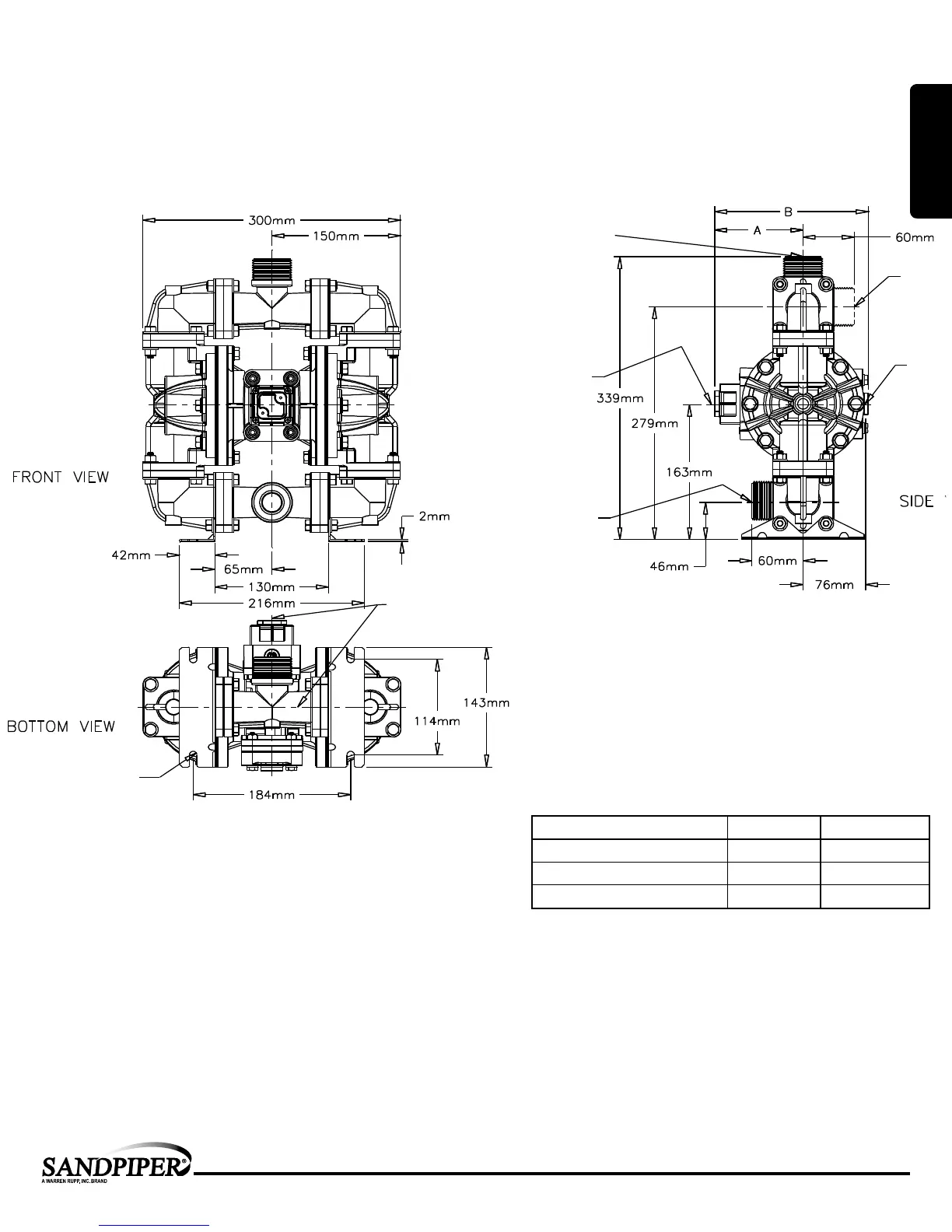

Dimensional Drawings
*Both Suction and Discharge
Ports are Available In:
¾" BSPT (Tapered) (Internal)
1½" BSPT (Tapered) (External)
Air Inlet ¼" NPT
Manifold Can Rotate 90°
From Vertical Centerline.
*Discharge Port
¾" NPT (Internal)
1½" NPT (External)
Standard
Encapsulated Muffler:
3/8" NPT Exhaust Port
For Optional Muffler
Styles or Piping Exhaust
Air in Submerged
Applications.
*Suction Port
¾" NPT (Internal)
1½" NPT (External)
Bolt Pattern
is Symmetrical
About Centerlines
*Both Suction and
Discharge Ports are
Available In:
¾" BSPT (Tapered) (Internal)
1½" BSPT (Tapered) (External)
*Suction Port
¾" NPT (Internal)
1½" NPT (External)
Standard
Encapsulated Muffler:
3/8" NPT Exhaust Port
For Optional Muffler
Styles or Piping Exhaust
Air in Submerged
Applications.
*Discharge Port
¾" NPT (Internal)
1½" NPT (External)
Manifold can Rotate 90°
From Vertical Centerline.
Air Inlet
¼" NPT
Bolt Pattern
Is Symmetrical
About Centerlines
R5/32"
4 Places
Dimension
Standard Pump
Pulse Output Kit
Mesh Mufer
A B
103mm
179mm
103mm
224mm
146mm 222mm
