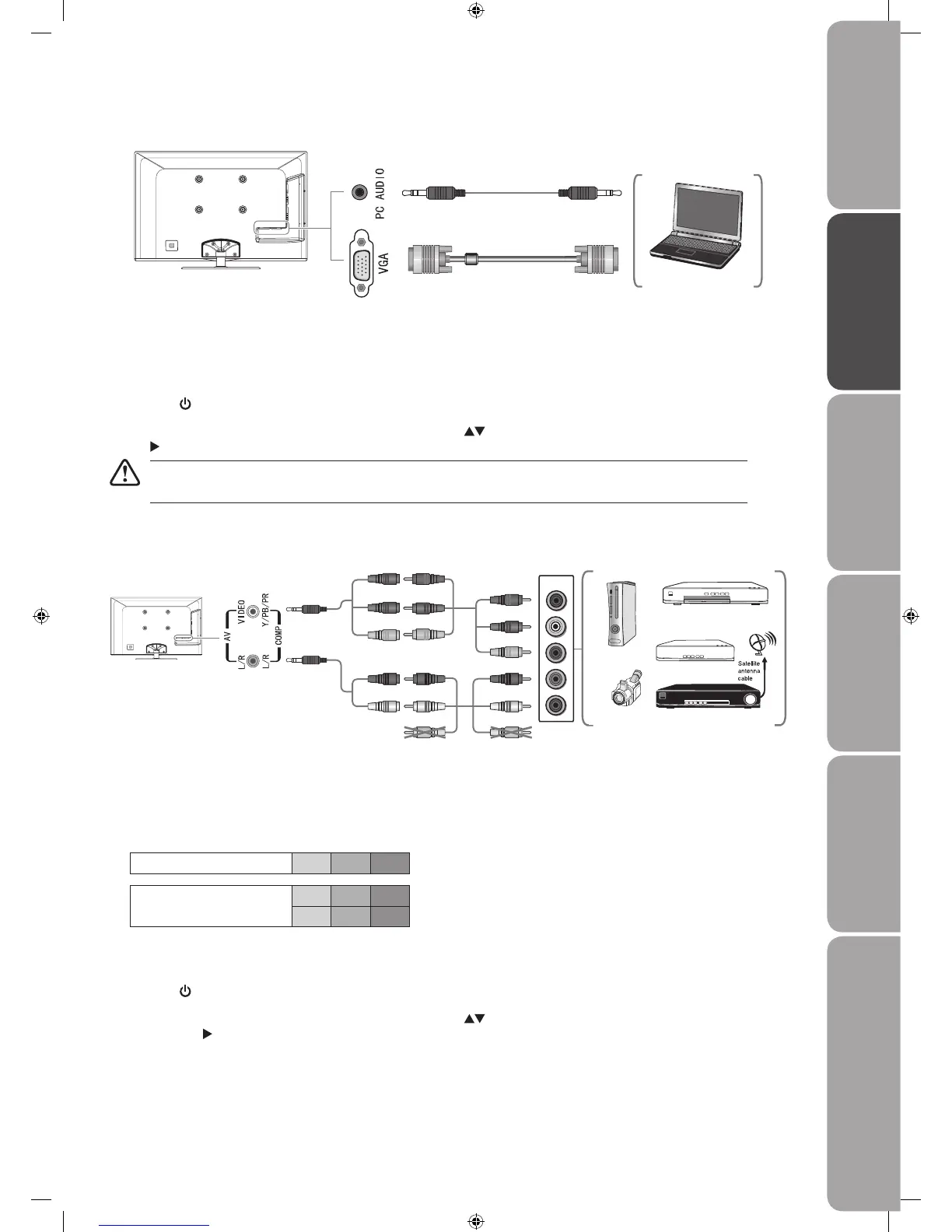

Connecting a Computer with a VGA Cable
Use a VGA cable to connect the TV’s VGA input socket to a computer’s VGA output socket. Use an audio cable to connect the 1.
TV's PC AUDIO input socket to the computer’s audio output socket.
Plug the connected devices into the mains socket before switching on the 2. I/O POWER ON/OFF switch at the bottom of the
TV.
Press the3.
button on the TV or on the remote control to turn on your TV.
Press the 4. Source button to display the input source list. Use the
buttons to select VGA and then press the OK button or
the
button to confirm.
VGA Cable
(not included)
Audio Cable
(not included)
Computer
Connecting an AV Device with a Component (YPbPr) Cable
Connect the included component adapter cable and a component cable to the TV’s YPbPr input socket to an external AV 1.
device’s component output sockets.
Connect the included audio adapter cable and an AV cable to the TV’s AUDIO(L/R) input socket to the external AV device’s 2.
component audio sockets. (Audio Left = white, and Audio Right = red)
Component port on the TV Y Pb Pr
Video output ports on DVD
player
Y Pb Pr
Y Cb Cr
Plug the connected devices into the mains socket before switching on the 3. I/O POWER ON/OFF switch at the bottom of the
TV.
Press the4.
button on the TV or on the remote control to turn on your TV.
Press the 5. Source button to display the input source list. Use the
buttons to select Component and then press the OK
button or the
button to confirm.
Satellite Receiver
AV Cable (not included)
Component Cable
(not included)
Audio Adapter
Cable
(included)
Component
Adapter Cable
(included)
Video Camera
Blu-ray Player / DVD Player /
Recorder
Set-top Box
Game Console
Yellow (VIDEO)Yellow (VIDEO)
Red (R)
Blue (Pb/Cb)
Red (Pr/Cr)
Y
Y
Pb/Cb
Pb/Cb
Pr/Cr
Pr/Cr
Red (R) Red (R)
White (L)
Green (Y)
White (L) White (L)
