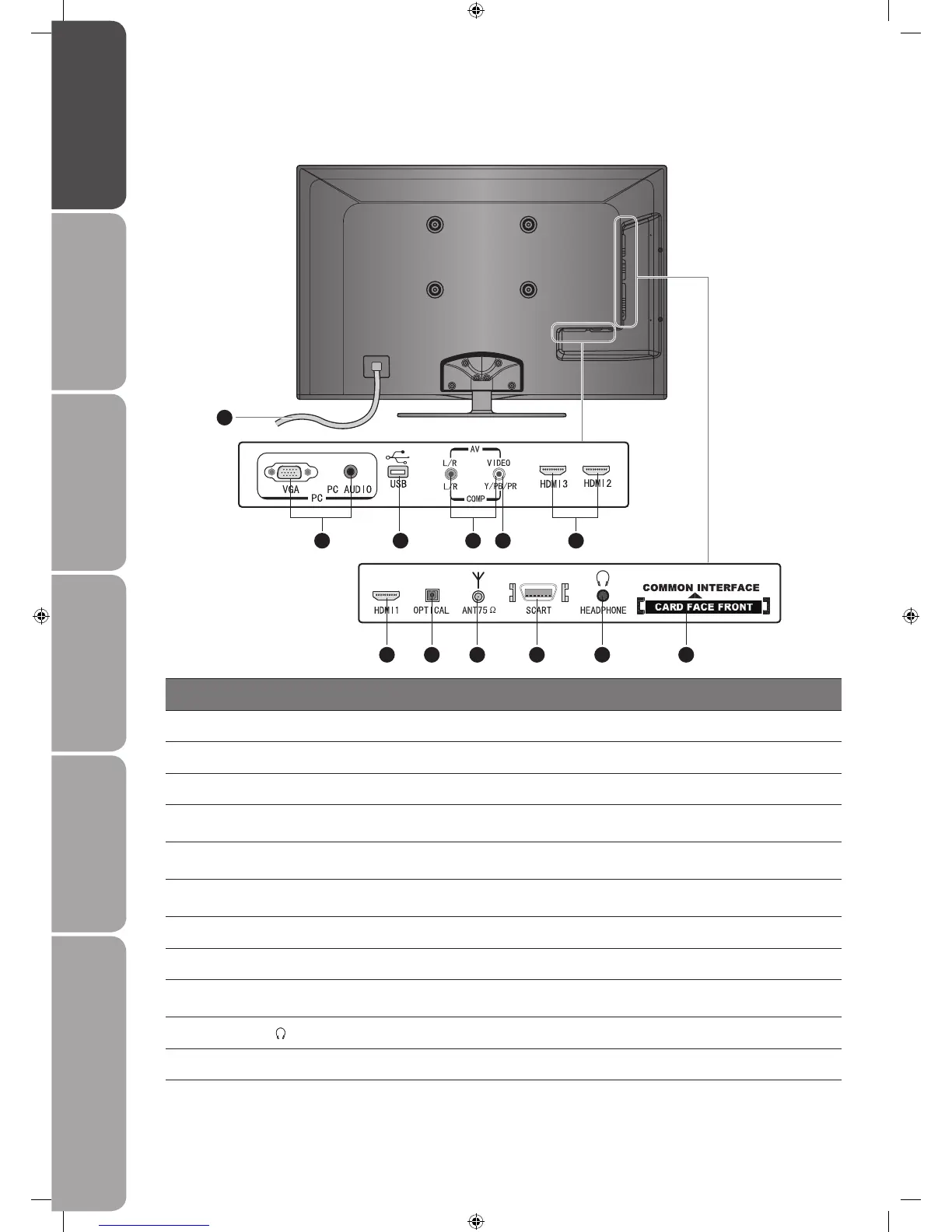

Rear View and Sockets
Item Description
1 MAINS CABLE Connect the mains cable to the mains socket.
2 VGA / PC AUDIO Connect to a computer or other devices with a VGA out / PC audio out interface.
3 USB port Allows the insertion of a USB storage device to play video, audio, photo (DMP Mode).
4 VIDEO / AUDIO (L/R)
Connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices by using the audio adapter cable provided.
5 Y, PB, PR
Connect to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets by using the component adapter cable provided.
6 HDMI1 / 2 / 3
Connect to a High-Definition (HD) signal output device, such as a set-top box, blu-ray disc
player, or AV receiver.
7 OPTICAL Provide digital audio out to an external digital audio amplifier device.
8 ANT 75 Ω Connect to the aerial socket on the wall with the RF coaxial cable.
9 SCART
Connect to a VCR, DVD Player, or other AV device with a SCART output socket by using
the SCART adapter cable provided.
10 HEADPHONE
Connect earphones for private listening.
11 COMMON INTERFACE Allows the insertion of a Common Access Module. (Refer to page 31 for details.)
