Connections to other equipment

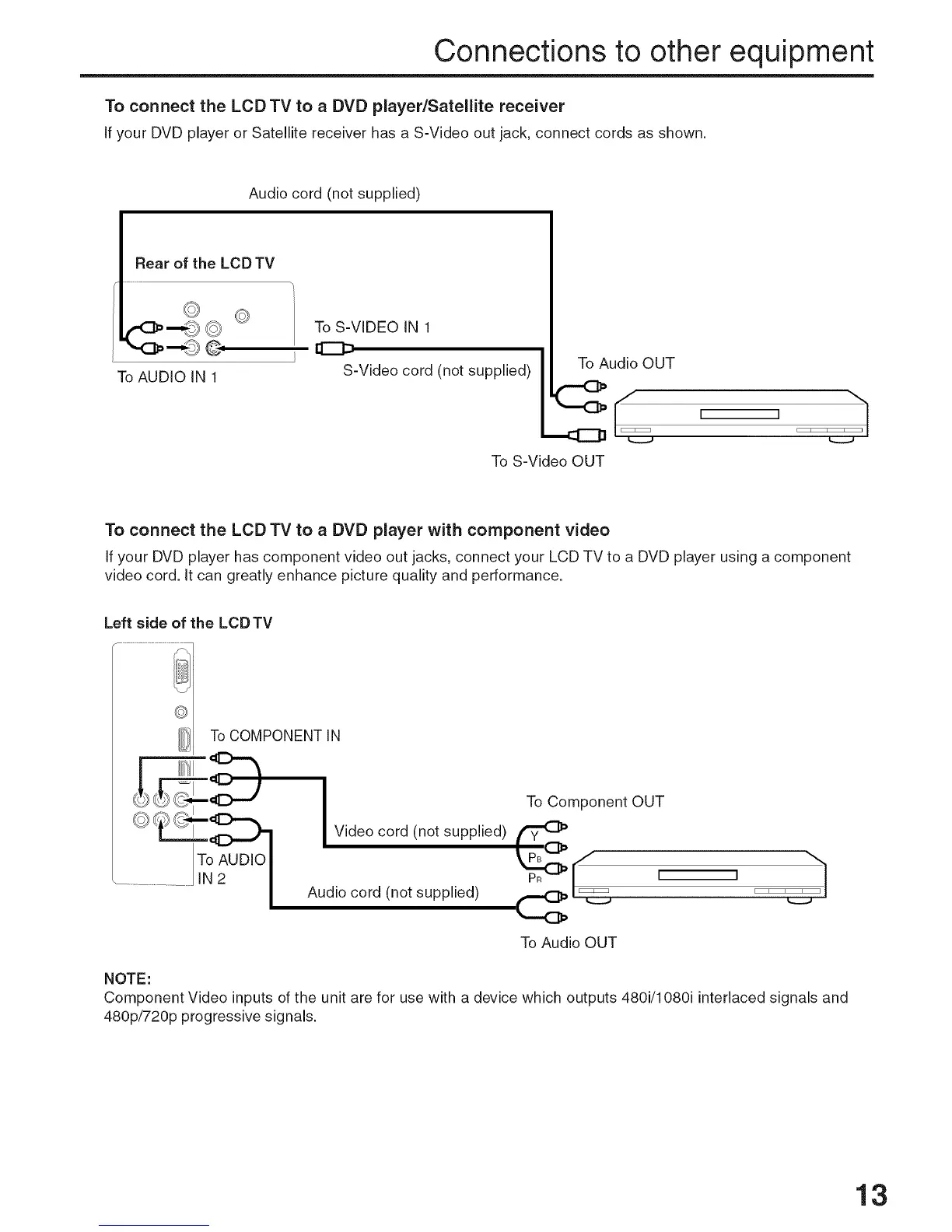

To connect the LCD TV to a DVD player/Satellite receiver
If your DVDplayer or Satellite receiver has a S-Video out jack, connect cords as shown.
Audio cord (not supplied)
Rear of the LCD TV
,(_'-_ ©
To AUDIO IN 1
©
To S-VIDEO IN 1
@
S-Video cord (not supplied)
To Audio OUT
] i i i i_
To S-Video OUT
To connect the LCD TV to a DVD player with component video
If your DVD player has component video out jacks, connect your LCD TV to a DVD player using a component
video cord. It can greatly enhance picture quality and performance.
Left side of the LCDTV
I To COMPONENT IN
..................... IN2 I
Audio cord (not supplied) _
To Audio OUT
NOTE:
Component Video inputs of the unit are for use with a device which outputs 480i/1080i interlaced signals and
480p/720p progressive signals.
