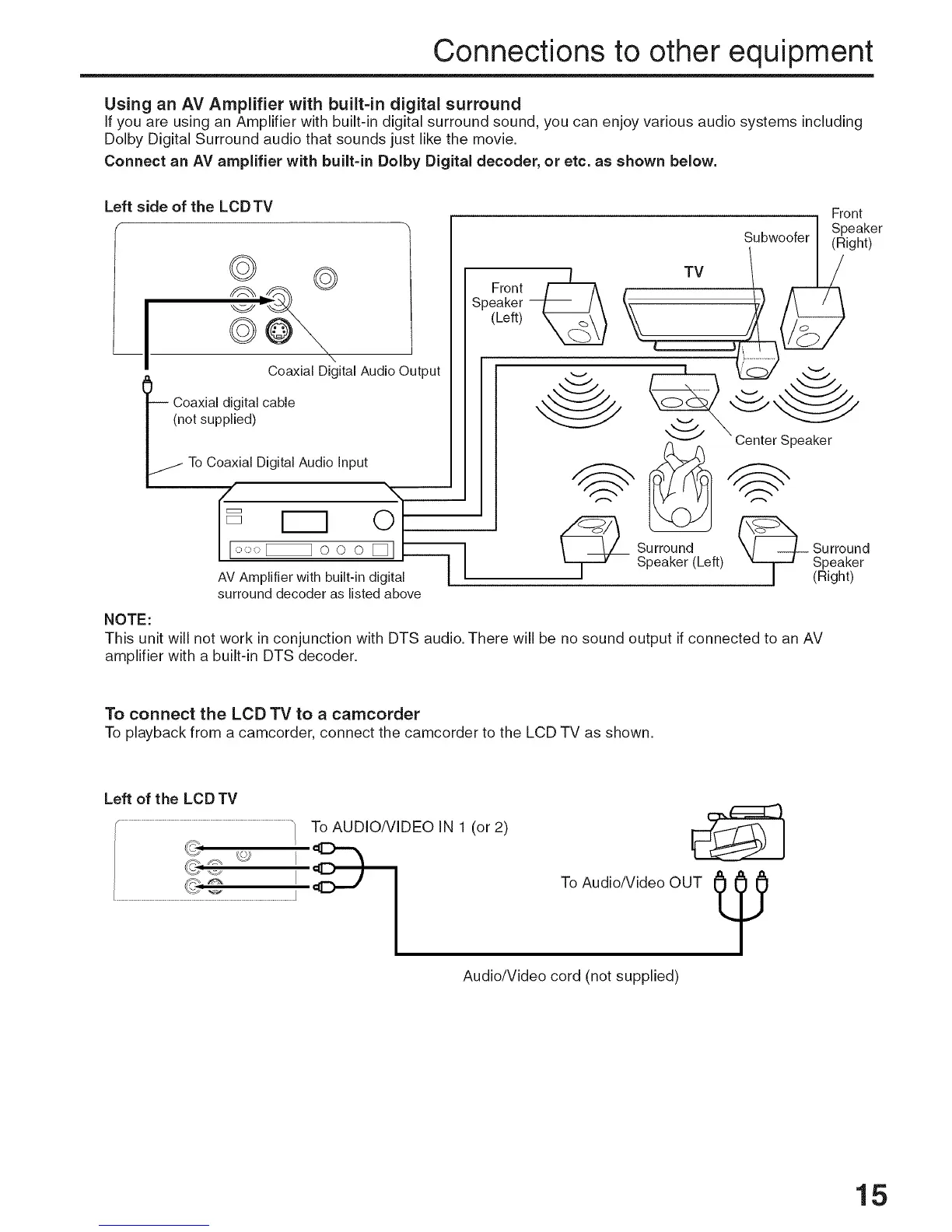

Connections to other equipment
Using an AV Amplifier with built-in digital surround
if you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including
Dolby Digital Surround audio that sounds just like the movie.
Connect an AV amplifier with built=in Dolby Digital decoder, or etc. as shown below.
Left side of the LCDTV
© ©
©@
Coaxial Digital Audio Output
-- Coaxial digital cable
(not supplied)
To Coaxial Digital Audio Input
,--1 •
AVAmplifier with built-in digital I i
surround decoder as listedabove
Front _
Speaker
(Left)
(
TV
Front
Speaker
Subwoofer (Right)
_(_ Speaker
_ Surround _ Surround
Speaker (Left) 'c--T-J Speaker
(Right)
NOTE:
This unit will not work in conjunction with DTS audio. There will be no sound output if connected to an AV
amplifier with a built-in DTS decoder.
To connect the LCD TV to a camcorder
To playbackfrom a camcorder, connect the camcorder to the LCDTV as shown.
Left of the LCD TV
C,
C _
u
To AUDIONIDEO IN 1 (or 2)
To Audio/Video OUT _)
Audio/Video cord (not supplied)
15
To Next Page
