Rear lower of the Plasma Display

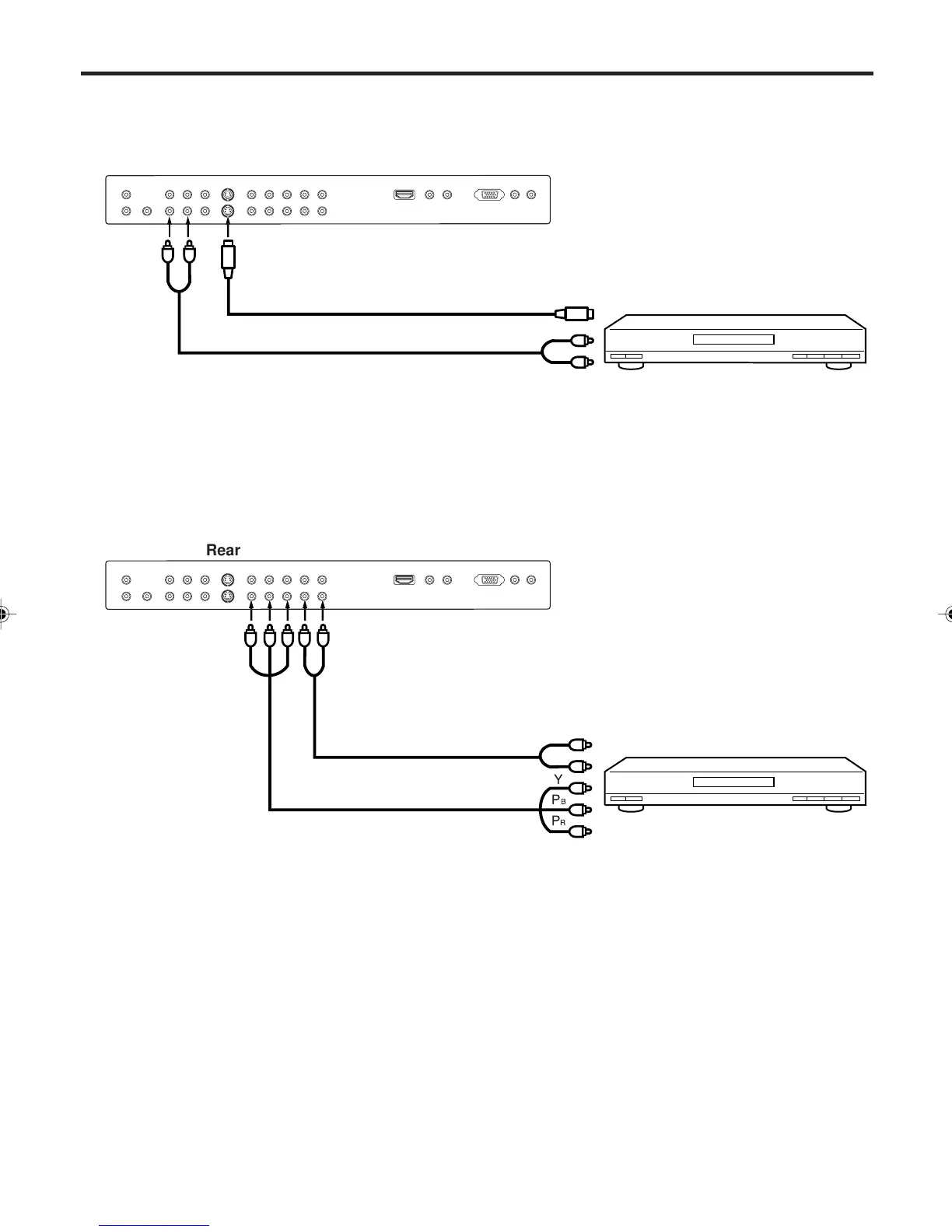

To connect the Plasma Display to a DVD player/Satellite receiver
If your DVD player or Satellite receiver has a S-Video out jack, connect cords as shown.
Rear lower of the Plasma Display
To S-Video OUT
Audio cord (not supplied)
To Audio OUT
S-Video cord (not supplied)
To S-VIDEO IN 1 (or 2)
To connect the Plasma Display to a DVD player with component video
If your DVD player has component video out jacks, connect your Plasma Display to a DVD player using a
component video cord. It can greatly enhance picture quality and performance.
To Component OUT
To Audio OUT
Audio cord (not supplied)
Video cord (not supplied)
To AUDIO
IN 1 (or 2)
To COMPONENT IN 1 (or 2)
NOTE:
Component Video input of this unit are for use of device which output 480i/1080i interlaced signals and 480p/
720p progressive signals.
