Range Number Optical Power Range (mW) Output Voltage Coefcient

(V/mW)
0
100-
0.004
1
20to100
0.02
2
4to20
0.1
3
0.8to4
0.5
4
0.16to0.8
2.5
5
0.032to0.16
12.5
6
0.006to0.032
62.5
7
-0.006
312.5

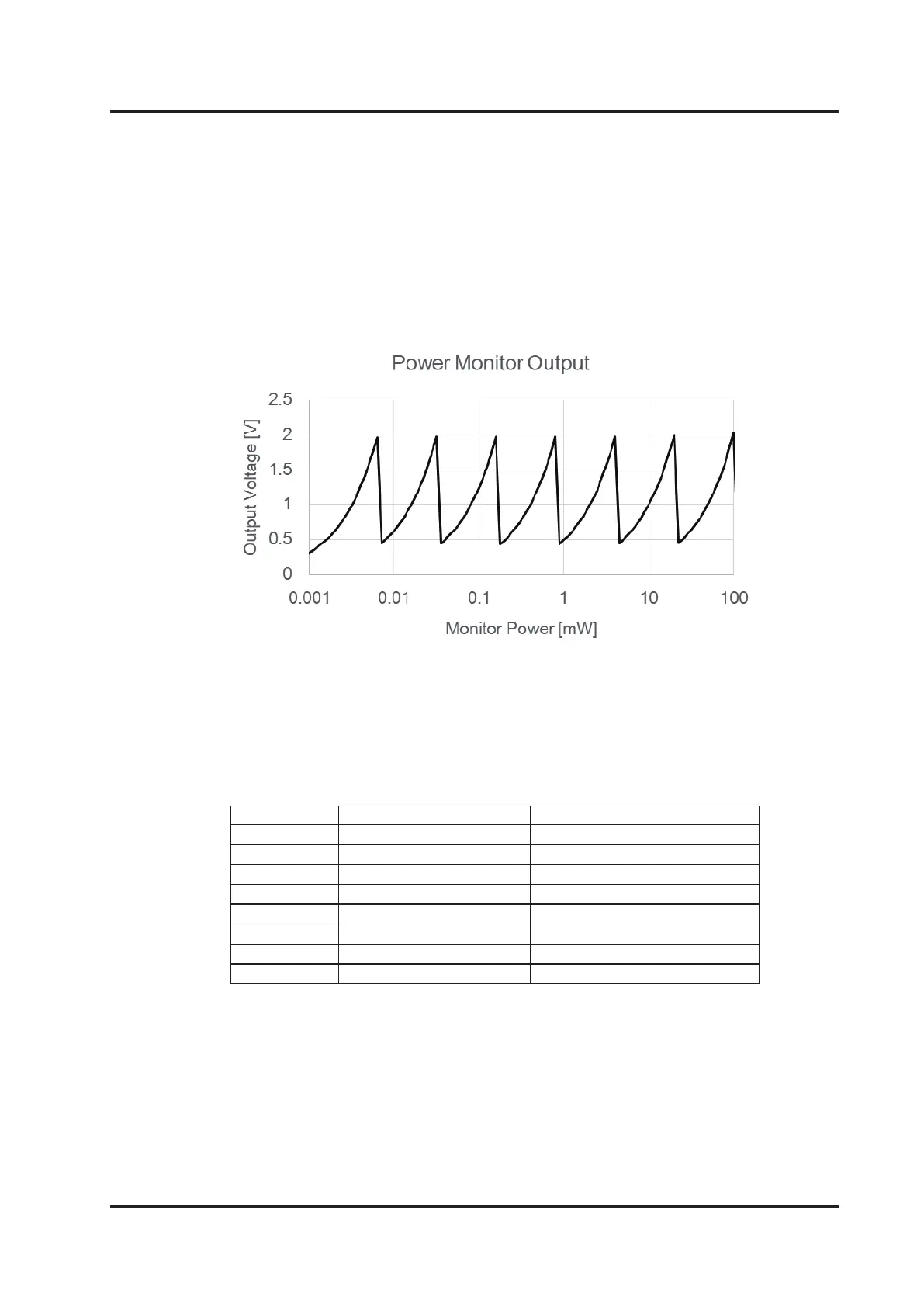

Figure 5-5.
Output voltage characteristics with respect to optical power (Typical value)
Table 5-5.
Coefcients between optical power and ouput voltage (Typical value)
