Santec PCU-110 - PCU-110 Status System

Polarization Control Unit PCU-110
5-17
1) Status System Structure Overview
2) Status Byte Register (STBR)
The status is read out by serial poll, or *STB? command.
7 6 5 4 3 2 1 0
Figure 5-4.

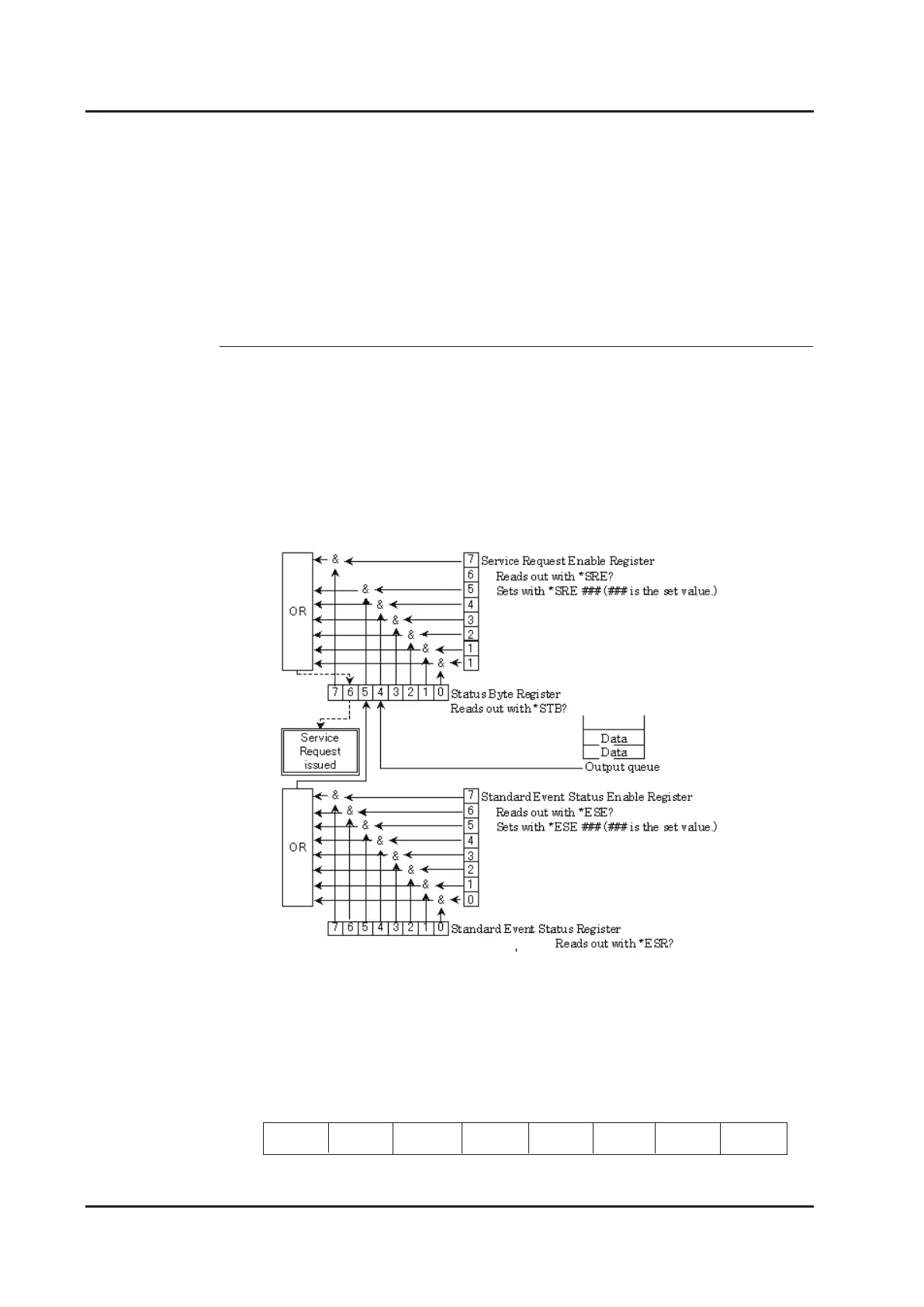

Status System Schematic Diagram
■
5-6-2
PCU-110 Status System
The following status systems with four registers are provided.
I. Status Byte Register (STBR)
II. Service Request Enable Register (SRER)
III. Standard Event Status Register (SESR)
IV. Standard Event Enable Register (SEER)
Not used Not used Not used Not used Not usedRQS ESB MAV
