PowerMonitor
5-7 Power Monitor Signal Output

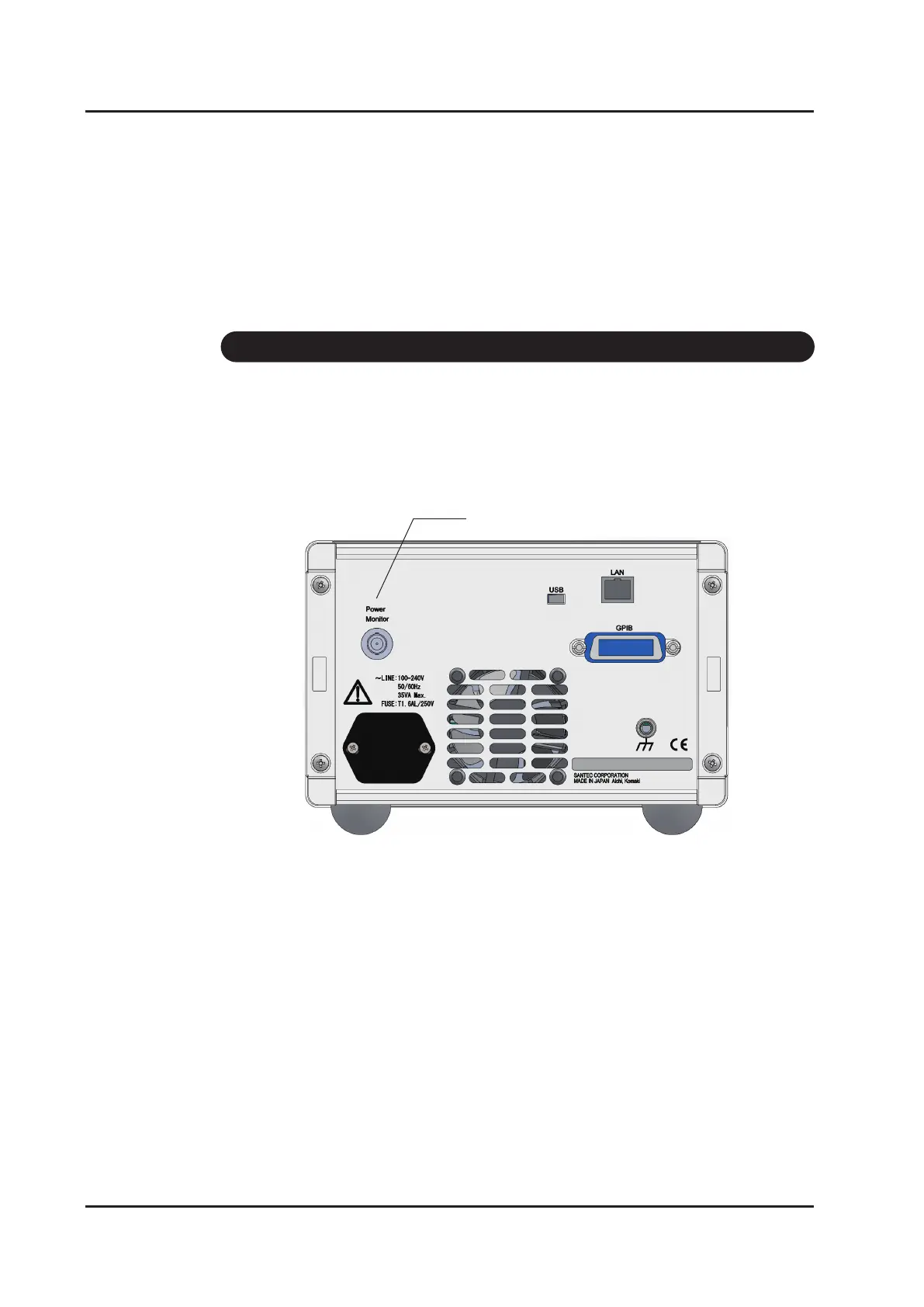

This feature outputs the voltage according to integrated power monitor.
It can be used to compensate output power uctuation in real time, for example.
(This feature is best recommended to be used with Santec’s power meters (MPM
series) as WDL/PDL measurement solution, Santec’s Swept Test System)
Output voltage changes according to measurement range of power monitor, as shown
below. Measurement range is adjusted automatically. Output voltage value against
optical output power is not calibrated. Typical voltage over output power correlation for
each measurement range is shown below. These values in Figure 5-5 and Table 5-5
are not guaranteed values.
