6.0 MULTIPLE INSTALLATIONS
6.1 When larger volumes of water are required than can be provided by one heater,
multiple installations can be made by connecting a number of heaters in
PARALLEL of the cold feed manifold (See Figure 6). This is the ONLY
method that is recommended, provided all water heaters recieve acceptable
ow rates (2.5ltr/min recomended). DO NOT plumb these heaters in series.
6.2 To set the heaters in this arrangement use the appropriate procedure as
described previously. Each heater in parallel must be set individually.
6.3 In this application restrictors capable of closing ow completely should be
used so that as each heater is set in turn, the other heaters in the installation
may be isolated.
NOTE - In this application it is advisable, especially where low ow rates exist, to
plumb the cold manifold in 22mm pipe with 15mm pipe spurs to each heater.

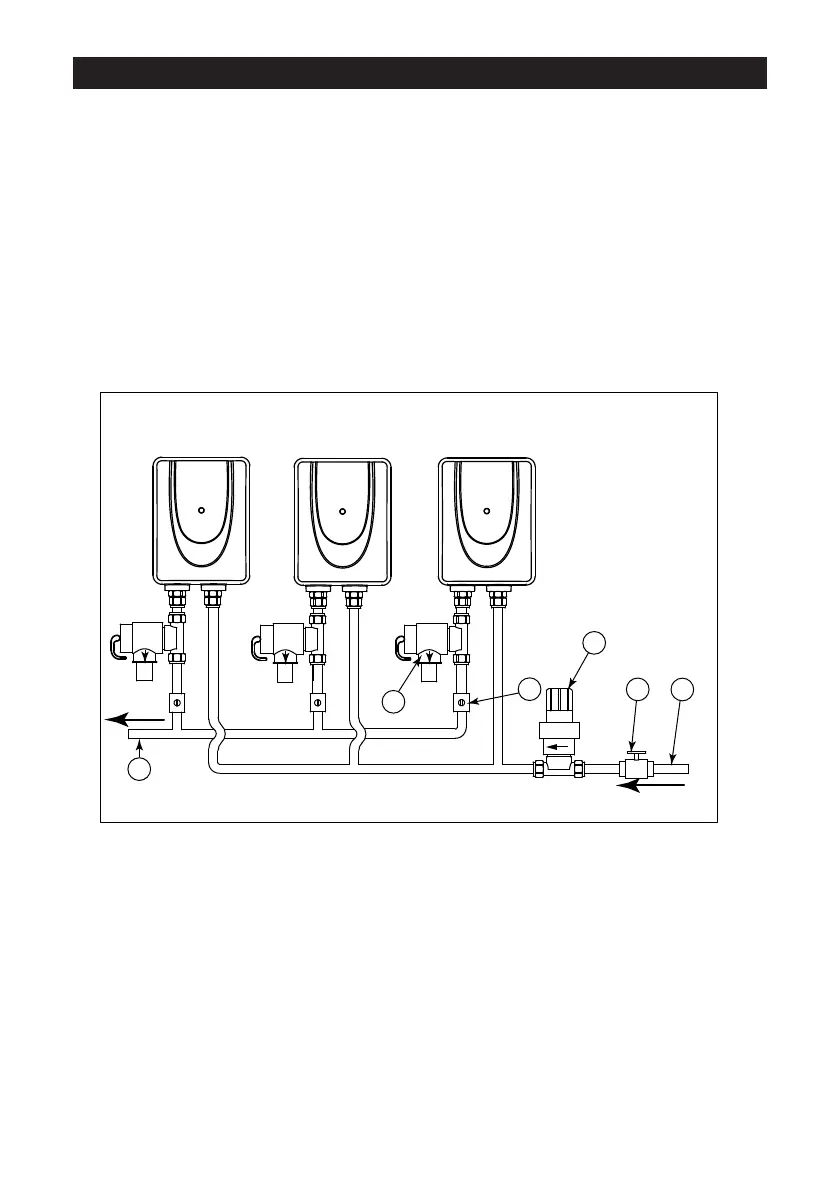

B - RESTRICTORS F - PRESSURE REDUCING VALVE (FITTED FOR 7kW VERSION ONLY)
D - EXPANSION RELIEF VALVES G - COLD WATER SUPPLY MANIFOLD
E - SERVICE STOP VALVE H - HOT WATER SUPPLY MANIFOLD
B
D
E
G
H
Figure 6
F
