Santon PowerPack - Rated Pressure; Materials; Dimensions; Standards and Approvals

Multipoint
3
3
RATED PRESSURE
7kW
Minimum supply pressure 0.1Mpa (1bar)
Maximum supply pressure 0.25Mpa (2.5bar)
9/12kW
Minimum supply pressure 0.1Mpa (1bar)
Maximum supply pressure 0.7Mpa (7.0bar)
MATERIALS
Backplate, cover - ABS
Element(s) - Copper sheathed rod type.
DIMENSIONS
Height - 210mm
Width - 160mm
Depth - 104mm
STANDARDS AND APPROVALS
Complies with the requirement of EN 60335-2-35.
British Electro technical Approvals Board (BEAB) approved.
Complies with European Community Directives (CE).
Complies with UK water regulations, kiwa approved.
red
red
N
L
black
green/yellow
Terminal
block
Pressure
switches
Inner
container
red
red
red
red
7kW / 9kW / 12kW

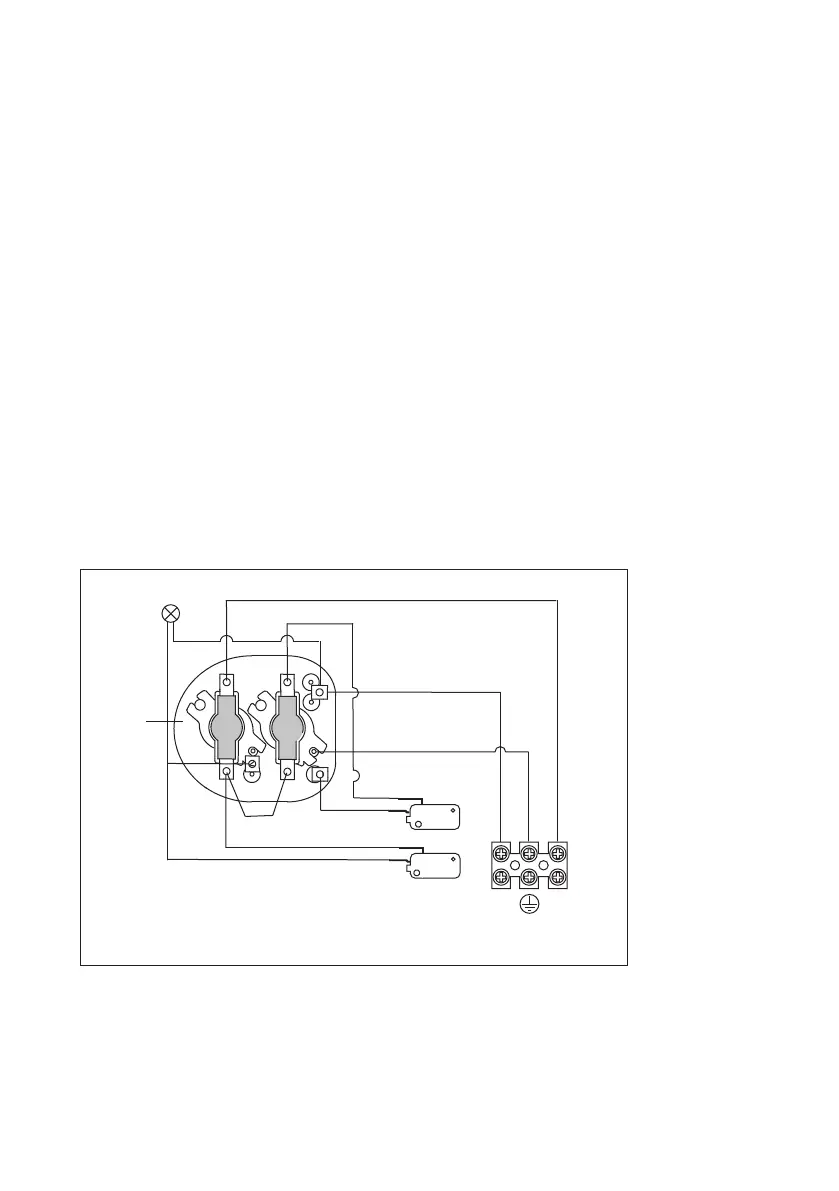

Figure 1 - Wiring Diagram
Neon
