D-1034-143 PC5000a（E）
DRAWING No. PC5000a 07-0812 2040 6010
5-6 Current / %4-20mA Measurement
—
23
—
5-6-1 Current Measurement: 10A
DCA: Maximum rating input value 10ADC
ACA: Maximum rating input value 10AAC
(AC+DC)A: Maximum rating input value 10A AC/DC
1) Applications
DCA: Current in batteries and DC circuits is measured.
ACA: Current in AC circuits is measured.
2) Measuring ranges
2 ranges for 5.000A, 10.00A

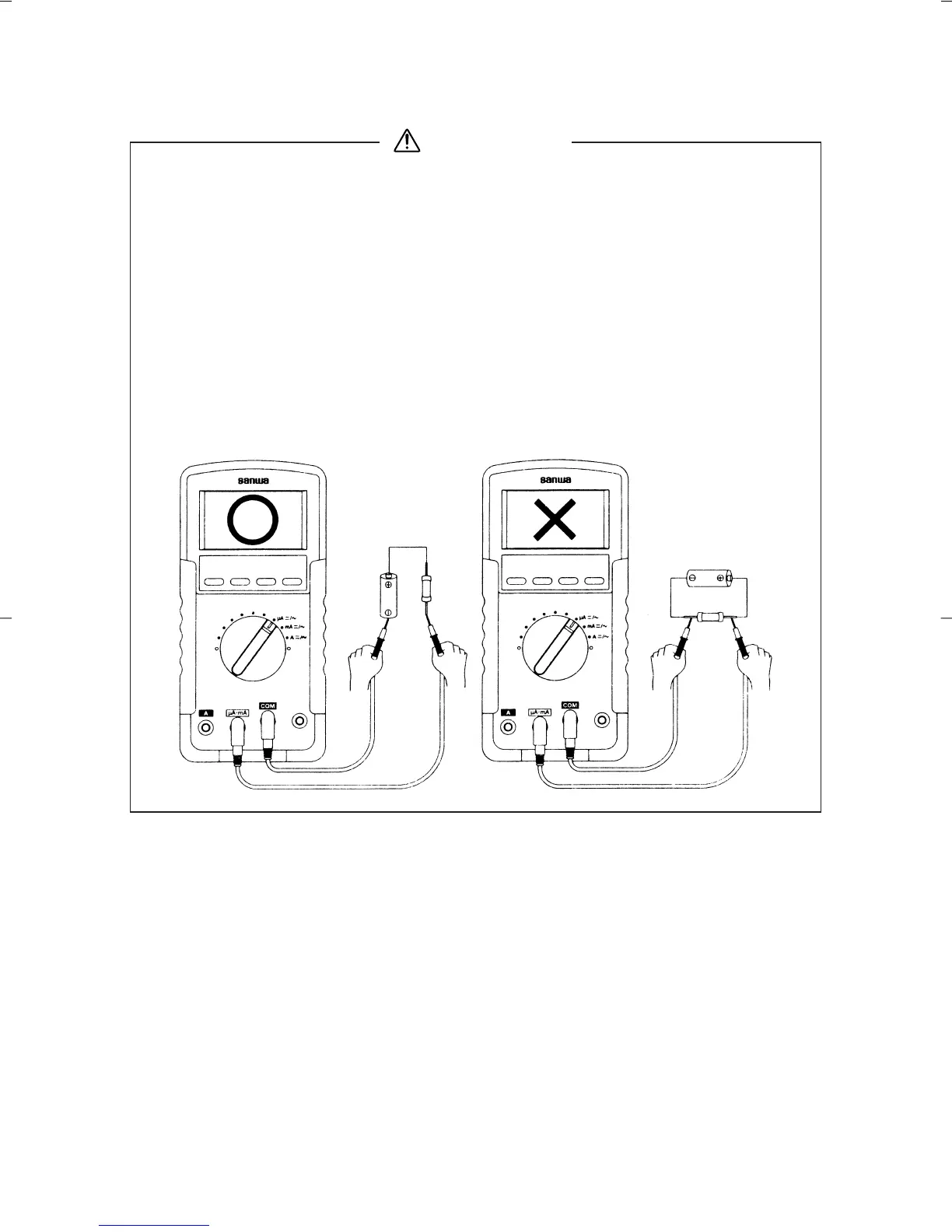

1. Never apply voltage to the input terminals.
2. Be sure to make a series connection via load.
3. When measuring 3-phase system, special attention should be
paid to the phase-to-phase voltage which is significantly higher
than the phase to earth voltage.
4. Do not apply an input exceeding the maximum rated current to
the input terminals.
5. Before starting measurement, turn OFF the power switch of
the circuit to separate the measuring part, and connect the
test leads firmly.
WARNING
To Next Page
