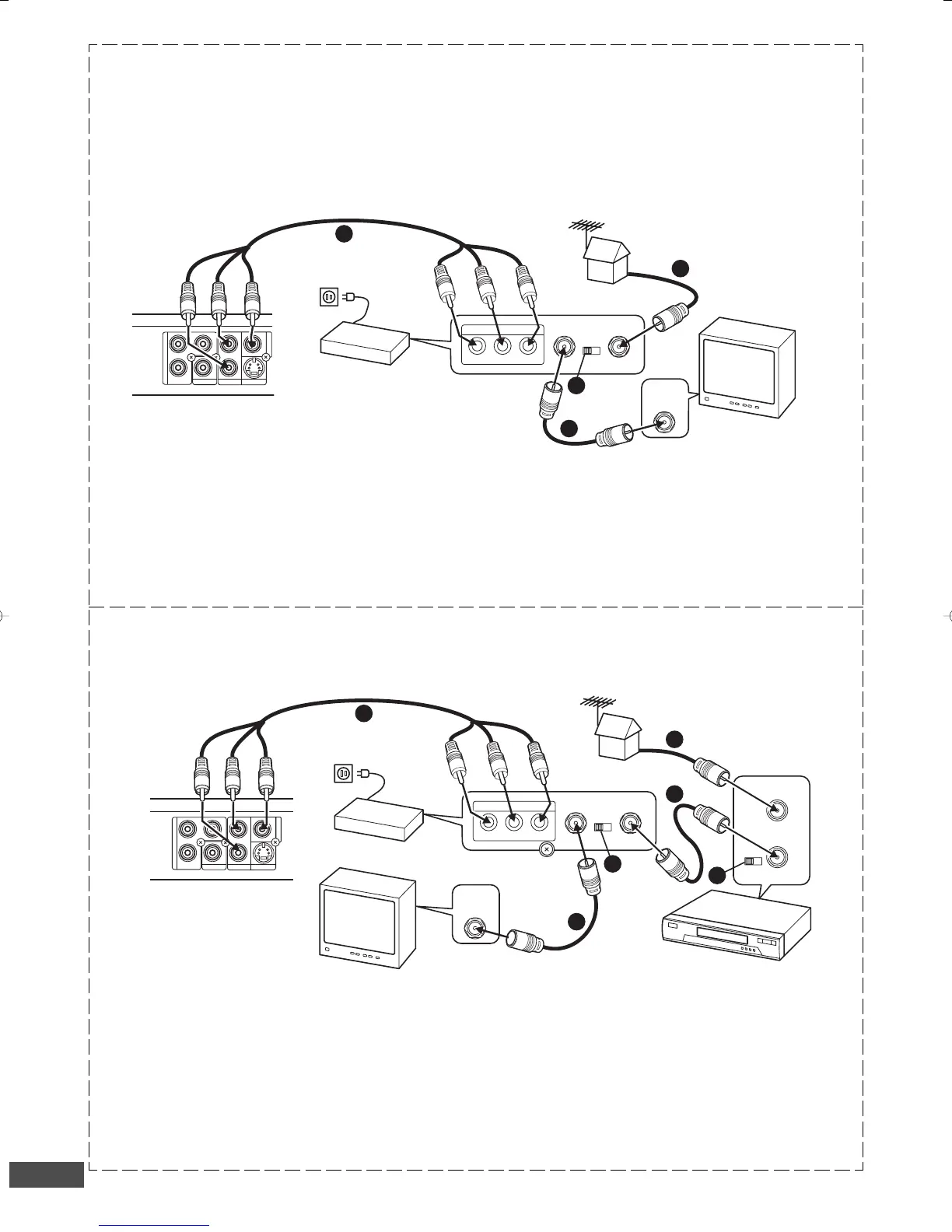

Using RF Modulator
If your TV does not have a Video input jack and has an an-
tenna terminal only, please purchase the *RF Modulator (not
supplied).
(*Please consult your audio/video dealer.)
Example: DVD video player, TV and RF Modulator connec-
tions
Audio/Video cable (supplied)
To audio input
jacks
To AUDIO
OUT jacks
DVD video player
1. Connect the antenna cable (not supplied) to the ANT. IN
terminal of the RF Modulator.
2. Connect the 75-ohm coaxial cable (not supplied) between
the TO TV terminal of the RF Modulator and the VHF/
UHF ANTENNA IN terminal of the TV.
3. Connect the Audio/Video cable (supplied) between the
AUDIO OUT and VIDEO OUT jacks of the DVD video
player and the AUDIO INPUT and VIDEO INPUT jacks
of the RF Modulator.
4. Turn on the TV, and set the channel number (CHANNEL3
or CHANNEL4) on both TV and RF Modulator, which-
ever is not used for regular broadcast in your area.
Note:
For more details, please refer to the instruction manual of
the RF Modulator.
Example: DVD video player, VCR, TV and RF Modulator connections
1. Connect the antenna cable (not supplied) to the VHF/
UHF FROM ANT IN terminal of the VCR.
2. Connect the 75-ohm coaxial cable (not supplied) be-
tween the TO TV OUT terminal of the VCR and the ANT.
IN terminal of the RF Modulator.
3. Connect the 75-ohm coaxial cable (not supplied) be-
tween the TO TV terminal of the RF Modulator and the
VHF/UHF ANTENNA IN terminal of the TV.
4. Connect the Audio/Video cable (supplied) between the
AUDIO OUT and VIDEO OUT jacks of the DVD video
player and the AUDIO INPUT and VIDEO INPUT jacks of
the RF Modulator.
5. Turn on the TV, and set the channel number (CHANNEL3
or CHANNEL4) on all TV, VCR and RF Modulator, which-
ever is not used for regular broadcasts in your area.
Note:
For more details, please refer to the instruction manual of
the RF Modulator.
TV
(White) L
(Red) R
To video input
jack (Yellow)
To VIDEO OUT jack (Yellow)
(Red) R
(White) L
To AC
120V, 60Hz
TV
To AUDIO
OUT jacks
DVD video player
To VIDEO OUT jack (Yellow)
(Red) R
(White) L
To AC
120V, 60Hz
(White) L
(Red) R
To video input
jack (Yellow)
RF Modulator
RF Modulator
VCR
To audio input
jacks
Audio/Video cable (supplied)
R
34
CHANNEL
TO TV ANT. IN
R-AUDIO-LVIDEO
A/V INPUT JACKS
VHF/UHF
ANTENNA
IN
34
CHANNEL
VHF/UHF
FROM ANT.
IN
OUT
TO TV
3
1
2
5
5
4
AUDIO OUT
S-VIDEO OUT
COAXIAL
COMPONENT VIEDO OUT
VIDEO OUT
Pr
Y
L
Pb
