- 36 -
2

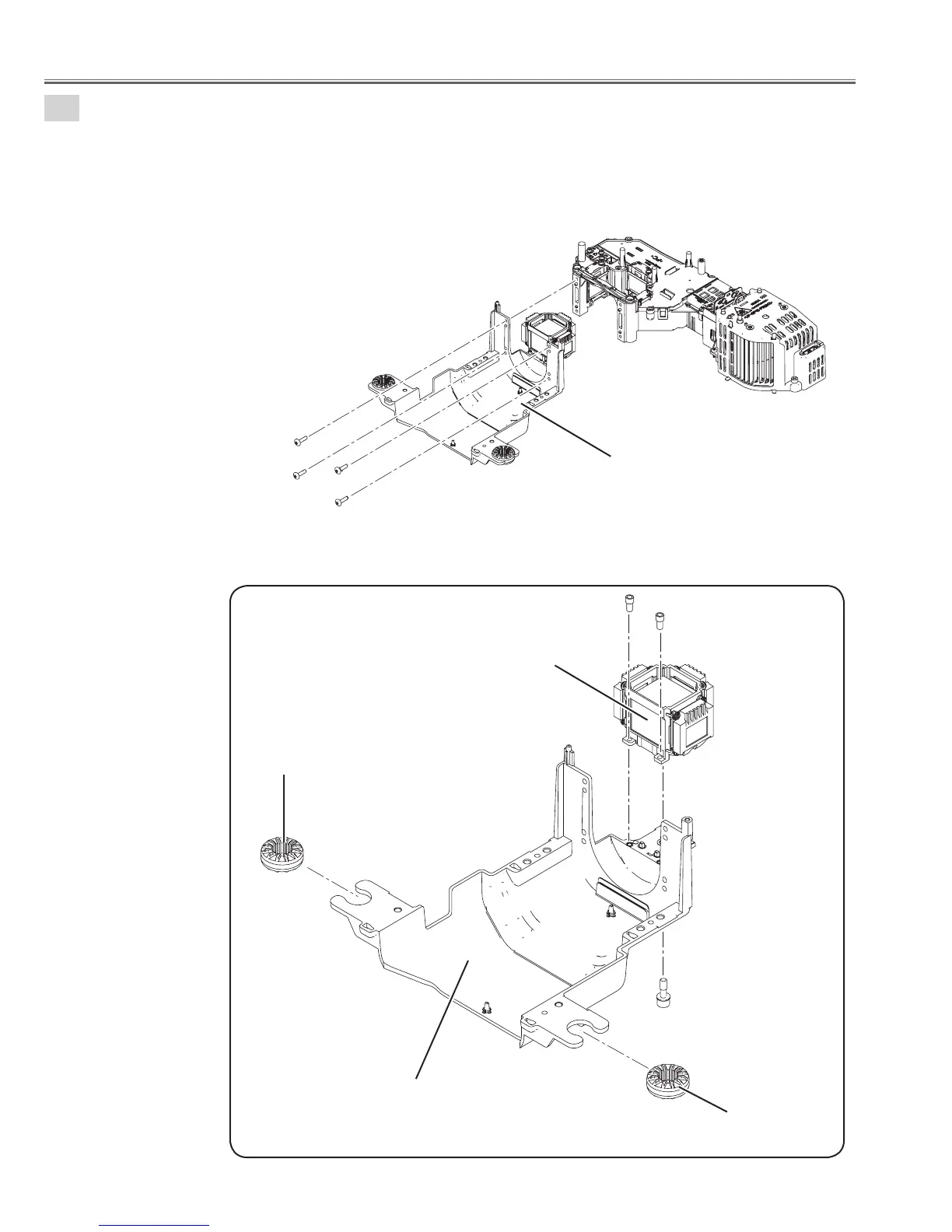

LCD panel/prism ass'y removal.
1. Remove the 4 screws-A (M2.5x8) and remove the LCD panel/prism unit.
2. Remove the 2 screws-B (M2.5x4), remove the screw-C (M3x10) and remove the LCD panel/prism ass'y.
A
A
A
A
LCD panel/prism unit
B
B
C
LCD panel/prism ass'y
Damper
Damper
Mounting prism
Optical disassemblies
