- 35 -
■Optical disassemblies
1
Projection lens removal.

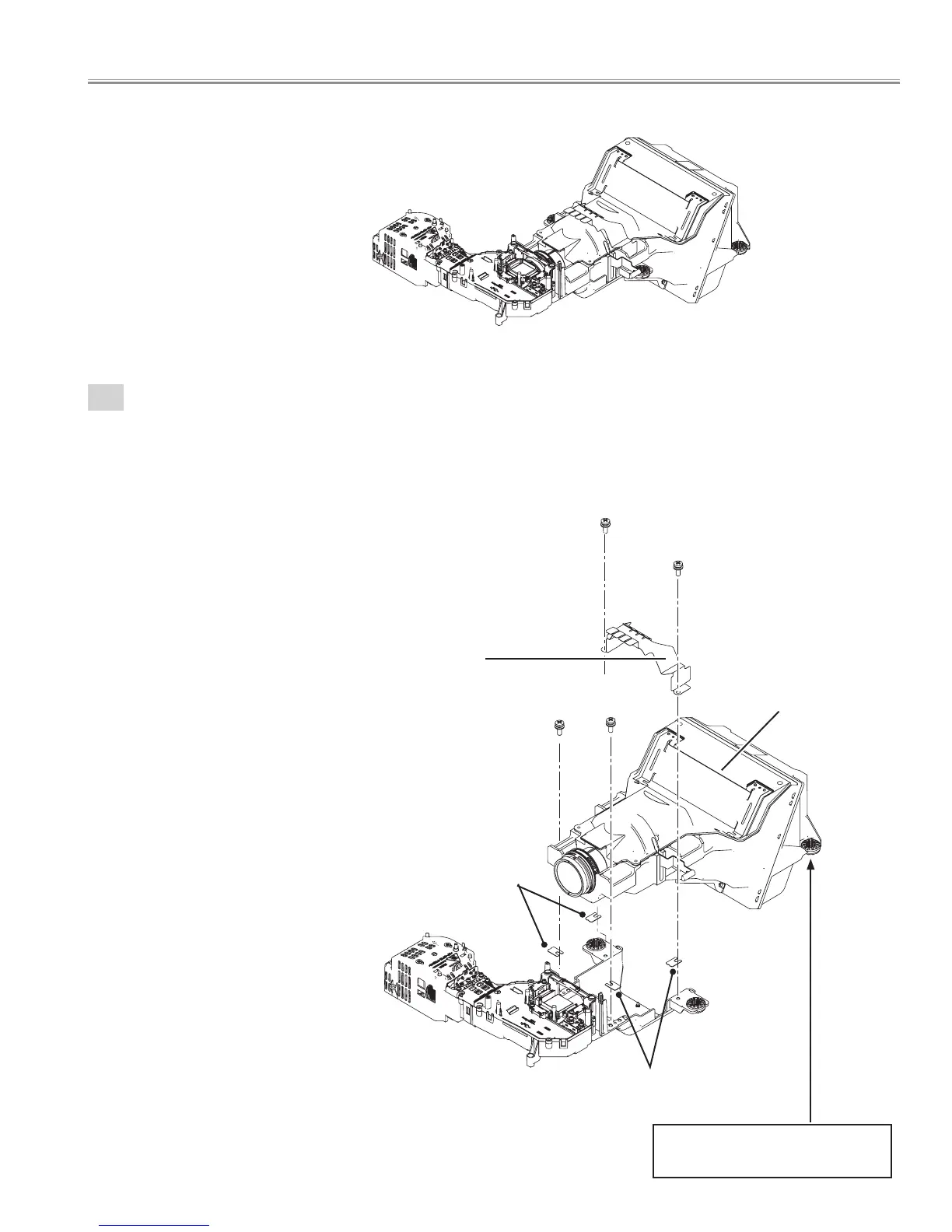

1. Remove the 4 screws (M4x12), remove the shield plate remove the 4 spacer and remove
the projection lens.
Optical unit
Projection lens
Shield plate
Caution ;
Do not lose these parts (damper).
Spacer
Spacer
