[Adjustment Condition]
 ● Input signal
Video signal ................................. 1.0Vp-p/75Ω terminated, 16 steps gray scale
(Composite video signal)
Component Video signal ........... 0.7Vp-p/75Ω terminated, 8 color 100% color
bar or 16 steps gray scale (Component video
signal)
Computer signal ........................... 0.7Vp-p/75Ω terminated, 16 steps gray scale
pattern
 ● Image control mode ............... “STANDARD” mode unless otherwise noted.
Note:
* Please refer to “Service Adjustment Menu Operation” for entering the service mode and adjusting the service data.
White 100%
Black 100%
Circuit Adjustments
CAUTION: The each circuit has been made by the fine adjustment at factory. Do not attempt to adjust the following adjust-
ments except requiring the readjustments in servicing otherwise it may cause loss of performance and product
safety.
Note: Before adjustment, turn on the projector more than 10 minutes.

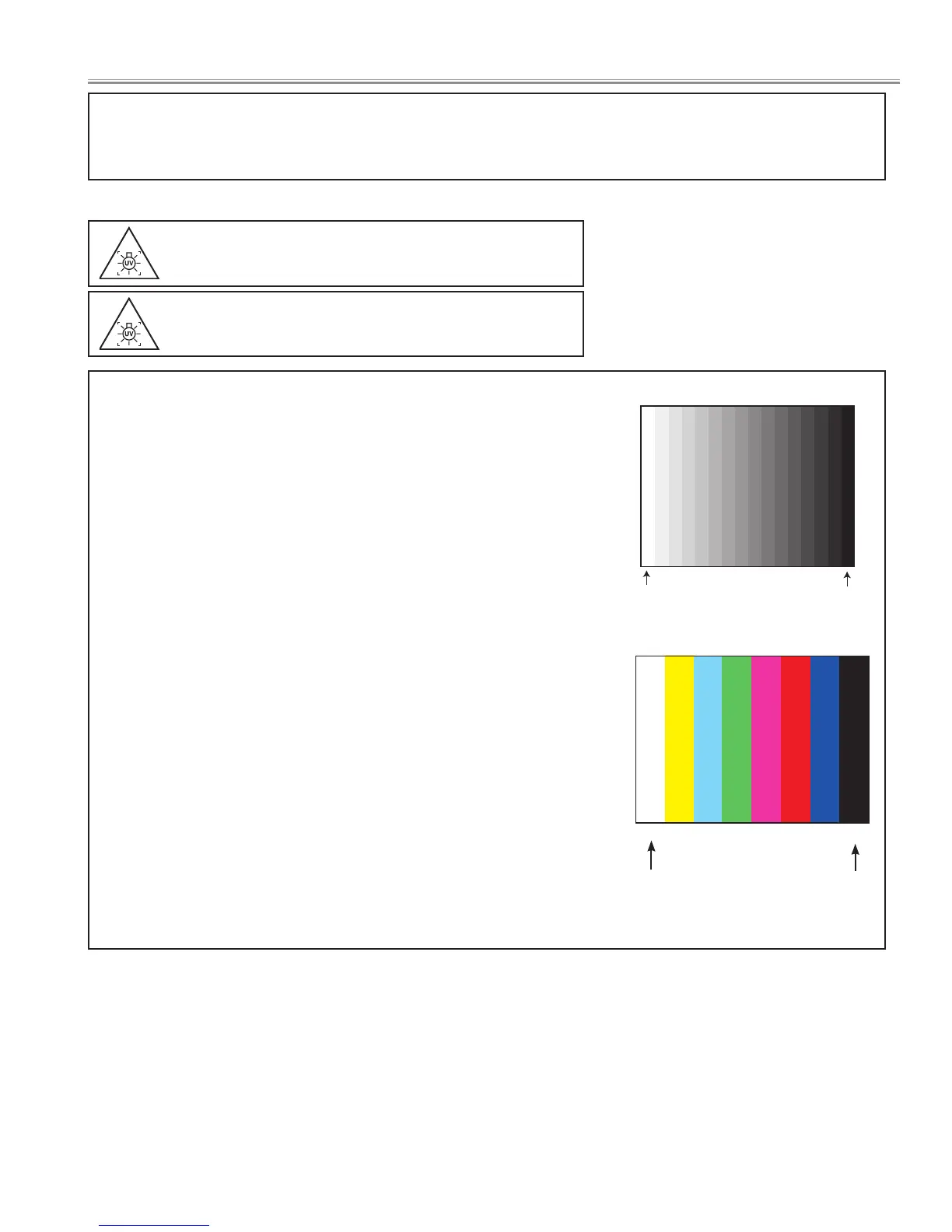

16 steps gray scale pattern
WARNING : USE UV RADIATION EYE AND SKIN PRO-
TECTION DURING SERVICING.
CAUTION:
To prevent suffer of UV radiation, those adjustments must be
completed within 25 minutes.
W
Y C
G
M
R
B
BLK
8 color 100% color bar
White 100% Black 100%
