Sanyo PLC-XL51A Service Manual

- 74 -

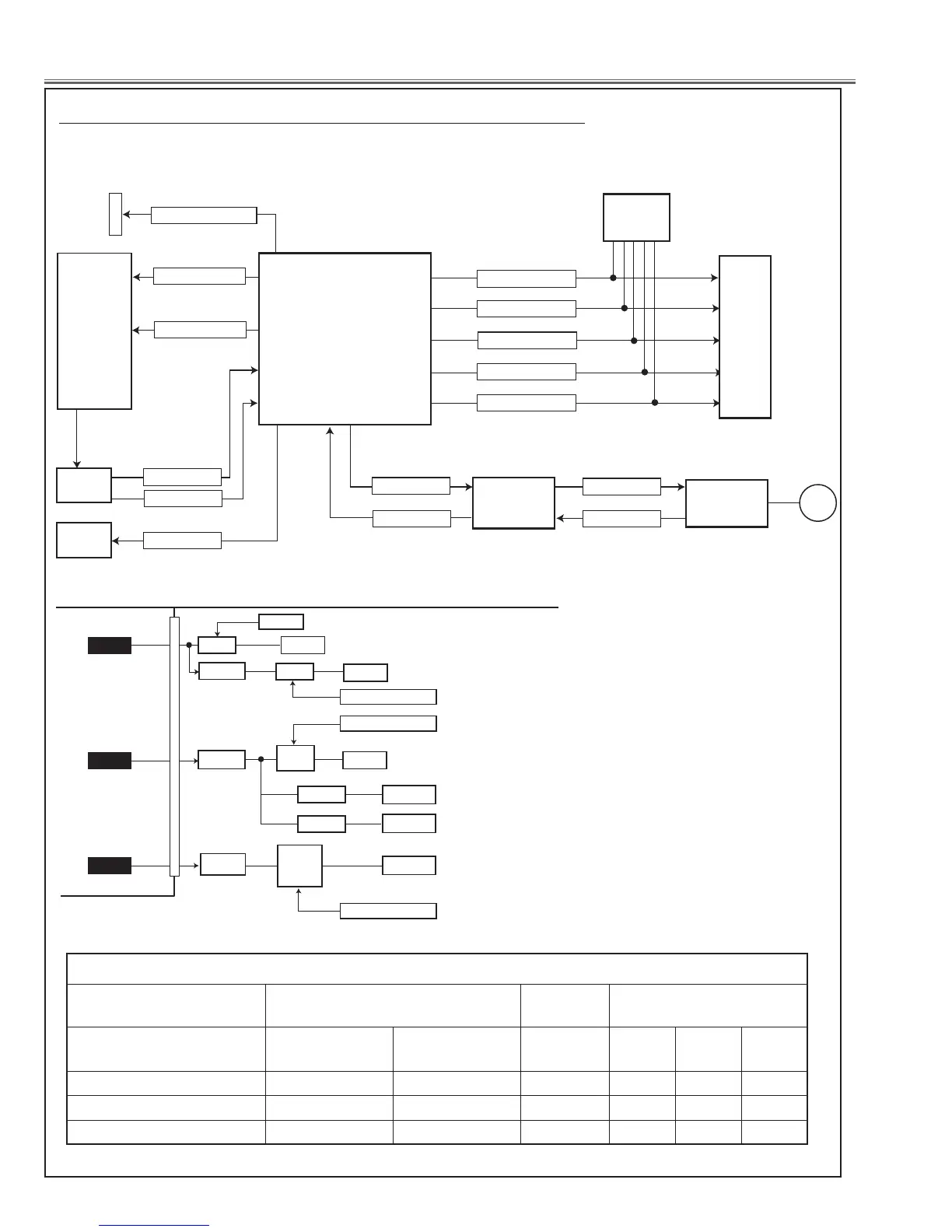

Chassis Block Diagrams
8
7
273
1
9
12
15
14
21
19
18
17
11
IC301
PW190
97
MCU_TEMP._LED
RC_MCU
MASTER_SDI
PW_MASTER_SD0
MCU_STAT
POWER_SW_MCU_A
MASTER_SCK
MCU_EX_UART
CPU_EX_UART
EX_CPU_UARTEX_MCU_UART
MCU_LAMP_LED
MCU_READY_LED
MCU_POWER_LED
MCU_FILTER_LED
IC4501
SUB-CPU
IC6961
Control
Port
IC6942
IC891
POWER
MAIN
K8R
POWER BOARD
IC3801
LED
K6R
K8R
S6V
S16V
S-5V
ON_DC
ES6V
ES3.3V
ES-5V
S-5V
ES16V
ES-5V
5
9
6
2
1
Q683
Q3611
IC4595
IC4581
Q3641
Q3642
Q3695
Q3694
Q3692
16V
S16V
S6V
POWER_SW_MCU
POWER_SW_MCU
POWER_SW_MCU
IC301
Eco-Standby (Sub -CPU)
TABLE FOR PROJECTOR STATE AND CONTROLSIGNAL
CONTROL SIGNAL
STANDBY-
POWER
POWER_SW_MCU LAMP_DC_ON ES6V S16V S6V S-5V
ECO-STANDBY STATE L L ON OFF OFF OFF
SERIAL-STANDBY STATE H H ON ON(OFF) ON ON
OPERATING STATE H H ON ON ON ON
