- 34 -

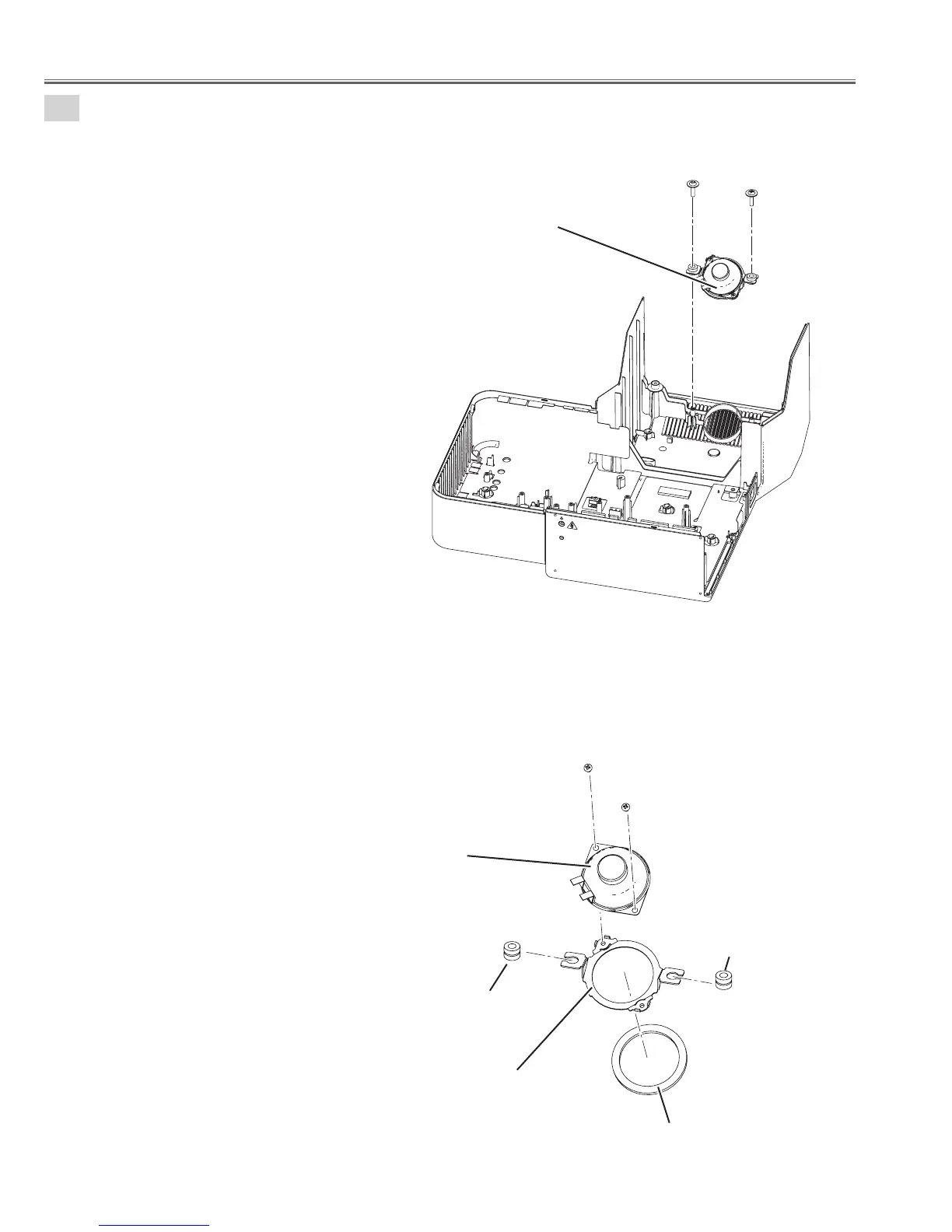

Speaker unit removal.

1. Remove the 2 screws-A (T3x12) and remove the speaker unit.

M3x4

Speaker unit

M3x4

Speaker

Damper

Holder

Spacer

Mechanical disassemblies
