- 33 -
10

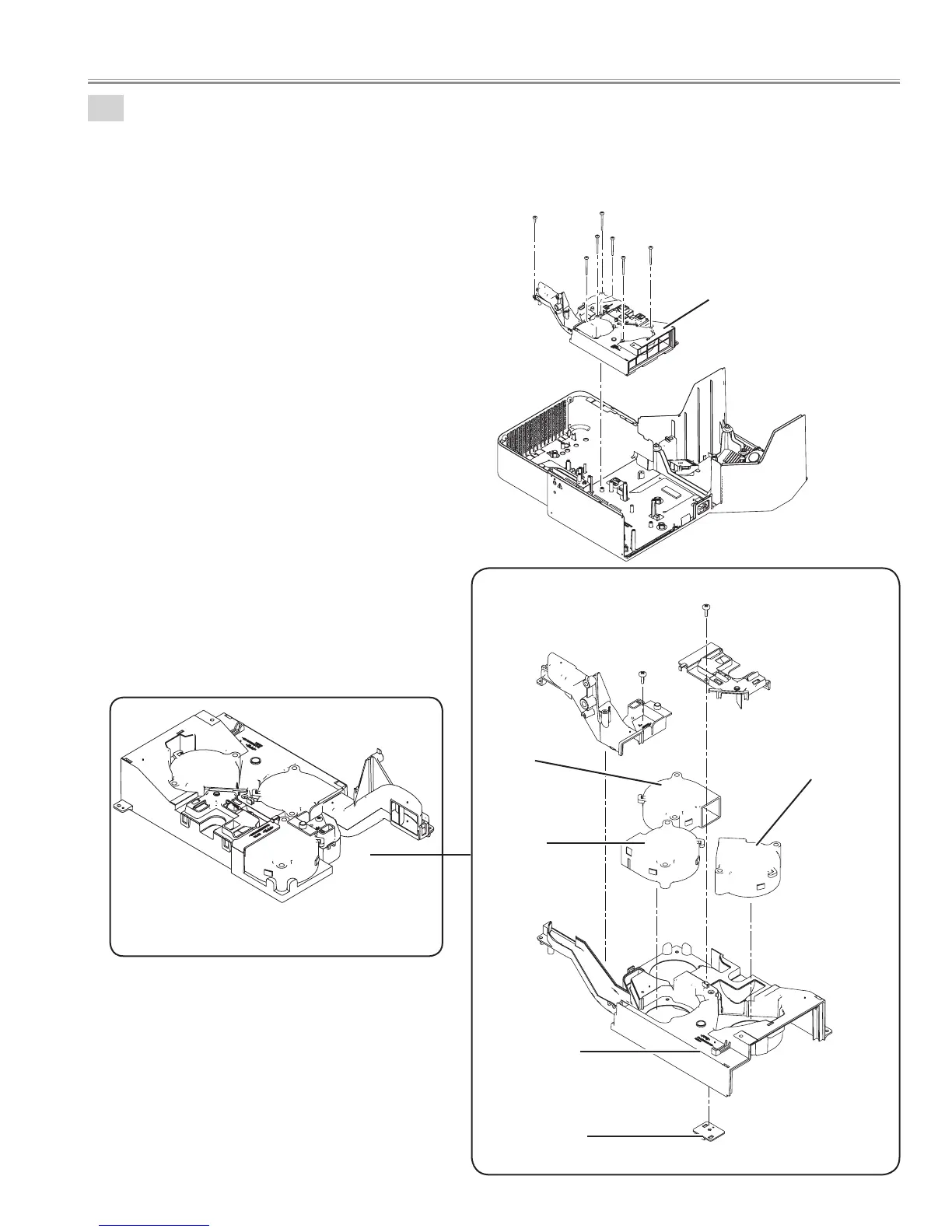

Duct ass'y removal.
1. Remove the 6 screws-A(T3x30), remove the screw-B(T3x8) and remove the Duct ass'y.
2. Remove the 2 screws-C(T3x8) and remove the Duct top-A, Duct top-B.
3. Remove the Fans(FN901, FN902, FN905) and Temp board.
A
A
A
A
A
A
B
C
Duct ass'y
Duct ass'y
Duct top-A
FN901
TEMP board
Duct bottom
FN902
FN905
Mechanical disassemblies
Duct top-B
C
