Sanyo PLC-XL51A Service Manual

- 32 -
9

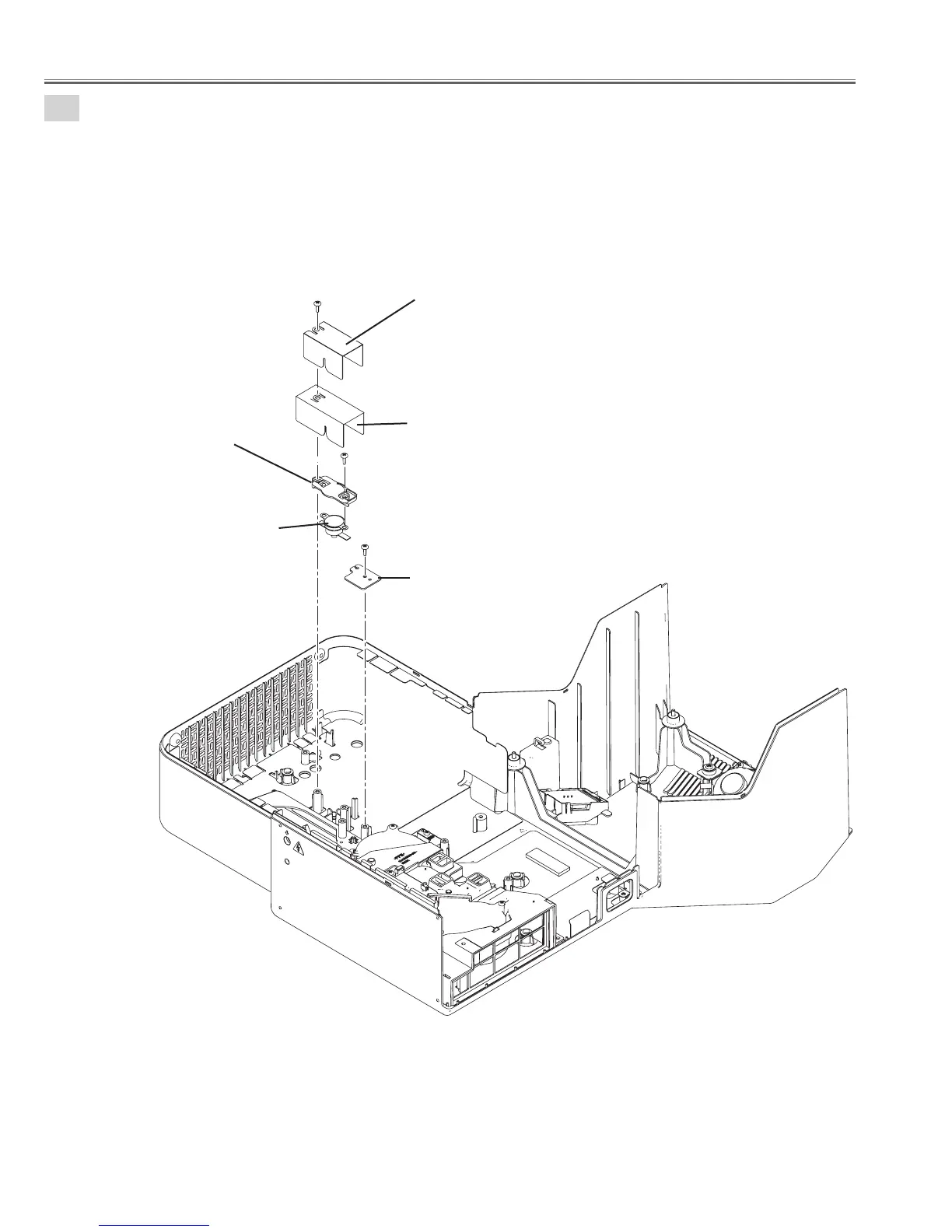

Lamp Cover Switch removal.
1. Remove the 2 screws-A(T3x8), remove the Spacer sheets, remove the Holder-SW and remove the
Thermal Switch (SW902)
2. Remove the screw-B(T3x8) and remove the Lamp cover switch (SW901).
A
Spacer sheet A
A
B
Holder -SW
Thermal SW(SW902)
Lamp cover SW(SW901)
Mechanical disassemblies
Spacer sheet B
