Sanyo PLC-XM100L Service Manual

-24-

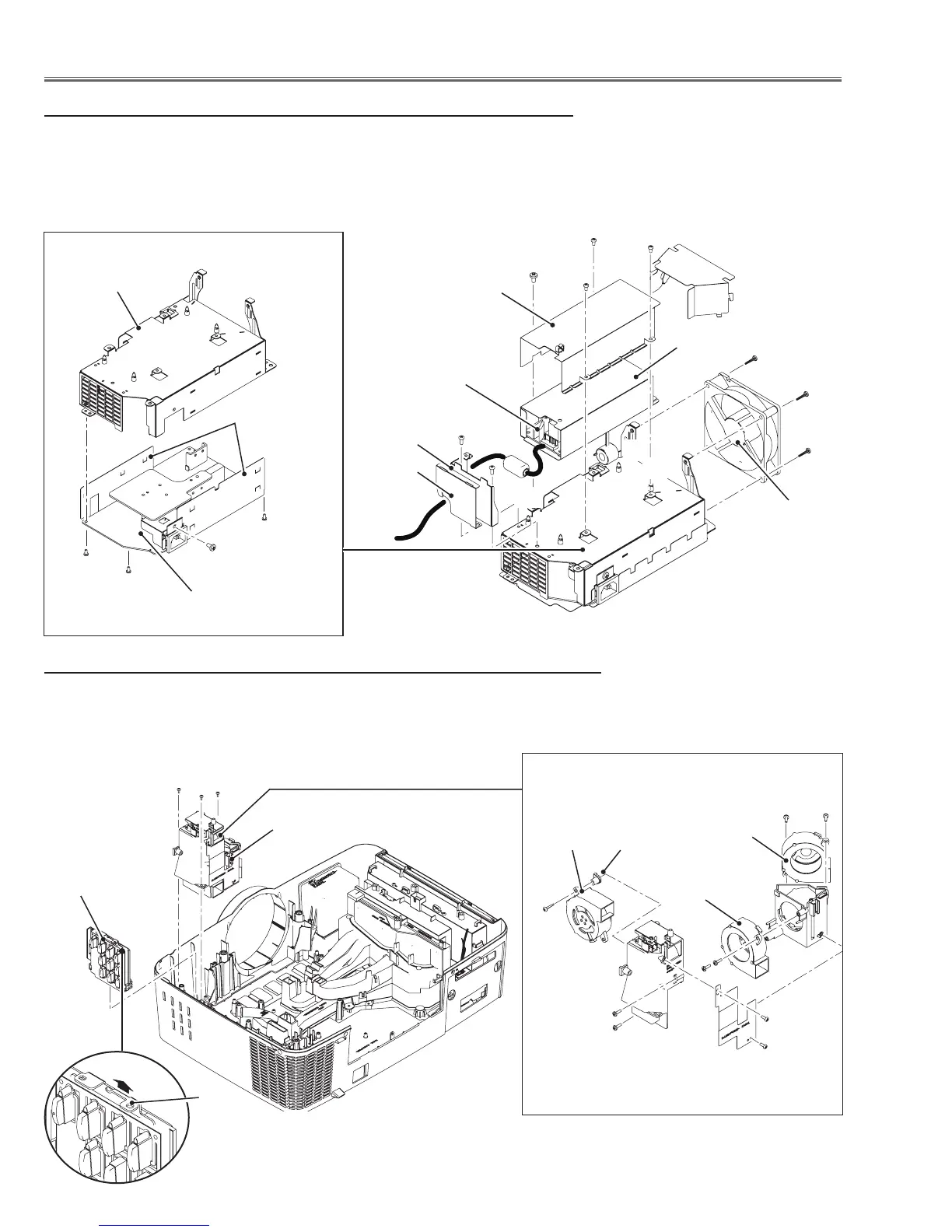

Mechanical Disassembly
8-1. Power Box disassembly and Fan (FN901) removal
1. Remove 1 screw-A (M4x8) and 3 screws-B(M3x8) and remove the Ballast
shield top.
2. Remove 2 screws-C (M3x8) to take the Holder. Unhook the 4 hooks-D and
take the Ballast board off.
3. Remove 3 screws-E (T3x28) to take the Fan (FN901) off.
C
Ballast shield top
C
A
B
B
B
E
E
E
Ballast Board
Spacer
D
D
D
D
Holder
M3x8
M4x8
M3x8
M3x8
Power board
Power holder
9. Control board and Fans (FN902,FN903,FN904) removal
1. Remove 3 screws-A (T3x8) to take the Lamp fan assy off.
2. Pull the holder on the Control board up to release the hook and remove the
Control board assy upward off.
A
A
A
Lamp fan assy
Control board assy
M3x8
M3x8
T3x10
T3x10
T3x10
T3x10
T3x10
T3x22
FN902
FN904
FN903
Spacer
Holder
Spacer
FN901
Spacer

Sanyo PLC-XM100L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
