-30-

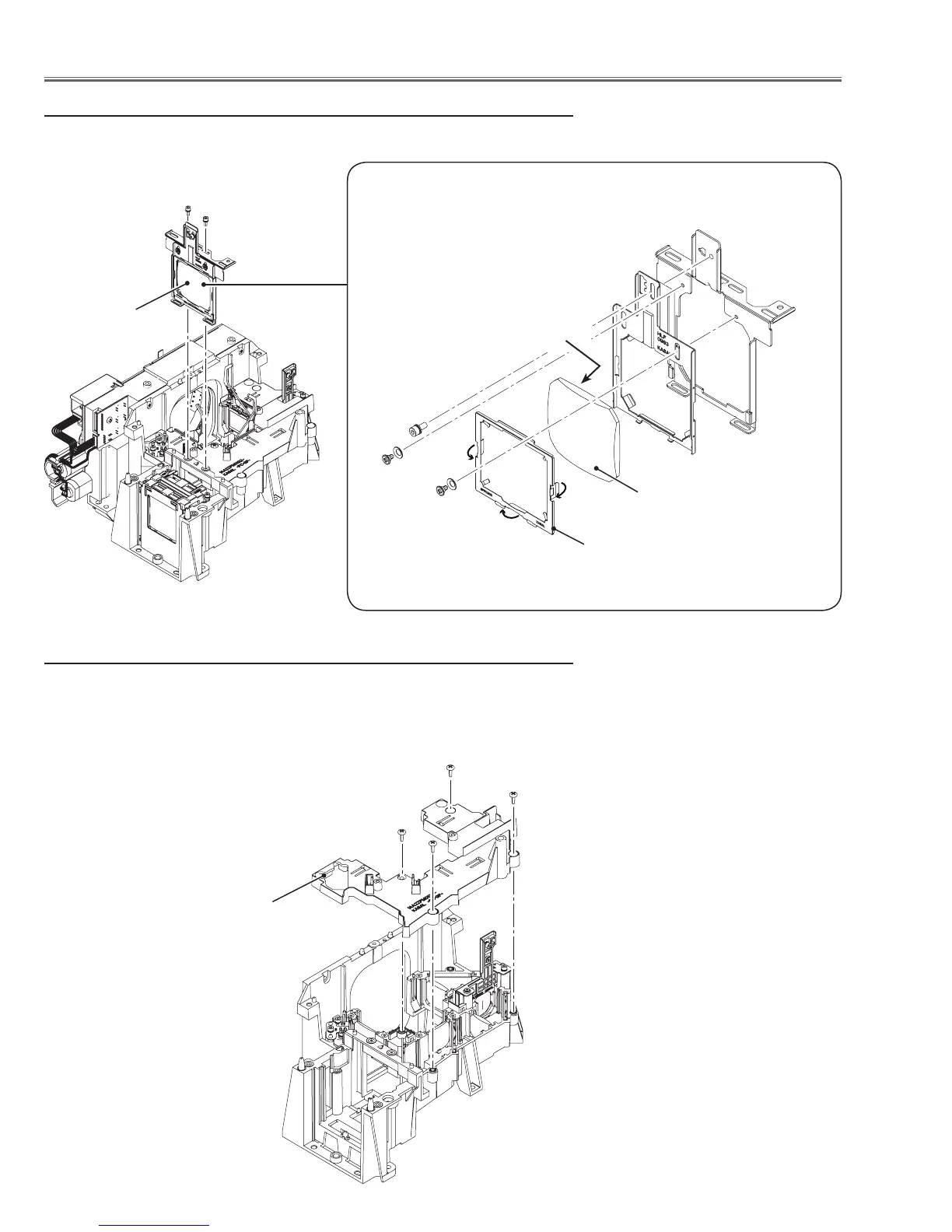

Optical Parts Disassembly
4. Condenser Lens Assy removal
1. Remove 2 screws-A (M2.5x6) and pull the Condenser Lens Assy upward.
Condenser lens
assy
Condenser
lens
Stopper
M2x4
M2x4
M2.5x6
A
A
5. Optical Parts in the Optical Unit removal
1. Remove 4 screws-A (T3x10) to take the Optical Unit Top off.
A
A
A
A
Optical unit top
Flat surface
side
