-29-

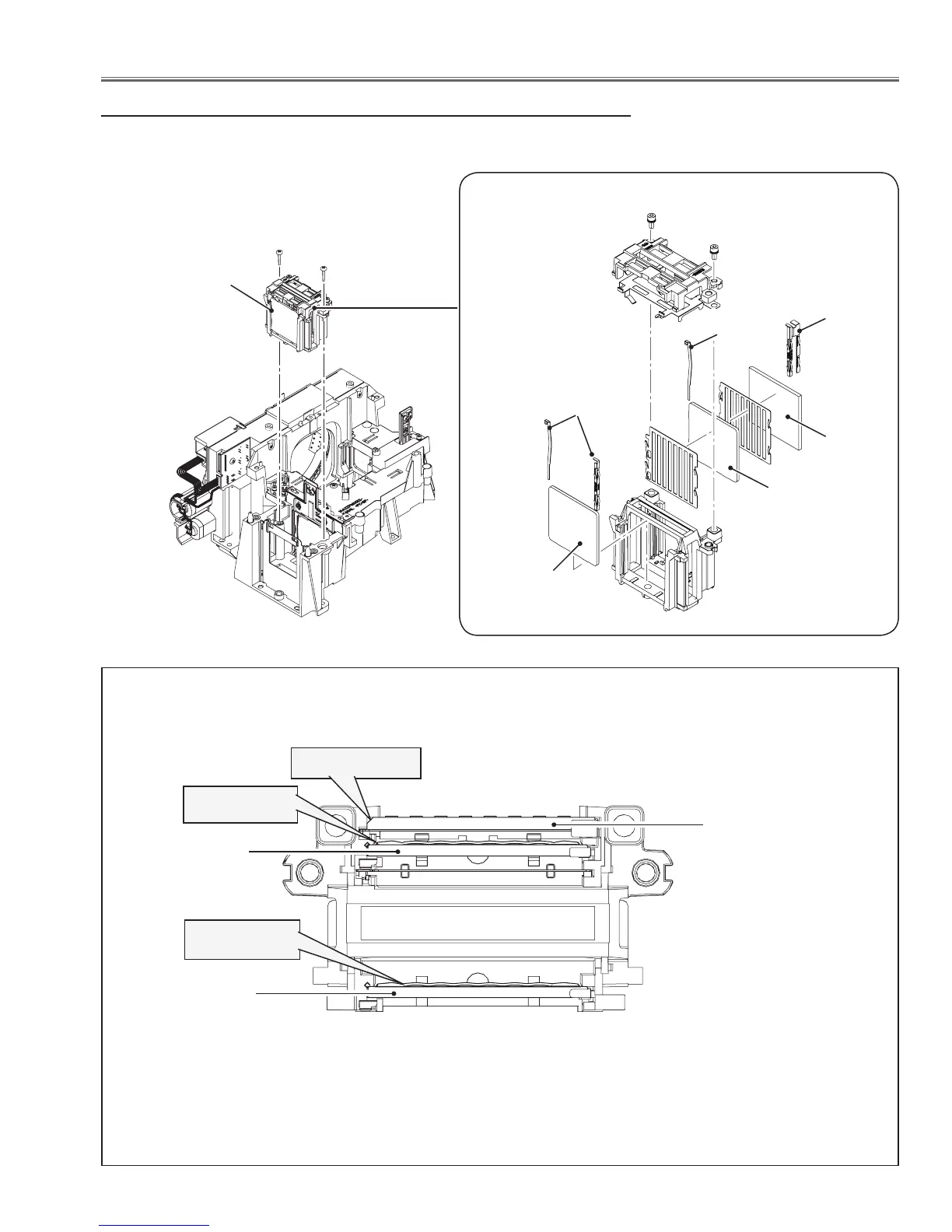

Optical Parts Disassembly
PBS and Integrator
lens assy
3. PBS and Integrator Lens Assy removal
1. Remove 2 screws-A (M3x14) and pull the PBS and Integrator lens assy
upward.
Stopper
M2.5x6
A
A
M2.5x6
Integrator
lens-out
Integrator
lens-in
Stopper
Stopper
PBS
Integrator lens-out
Integrator lens-in
Cutting corner
Rugged surface
Rugged surface
PBS
Top view of PBS and Integrator lens assy
