-39-
Optical Adjustment

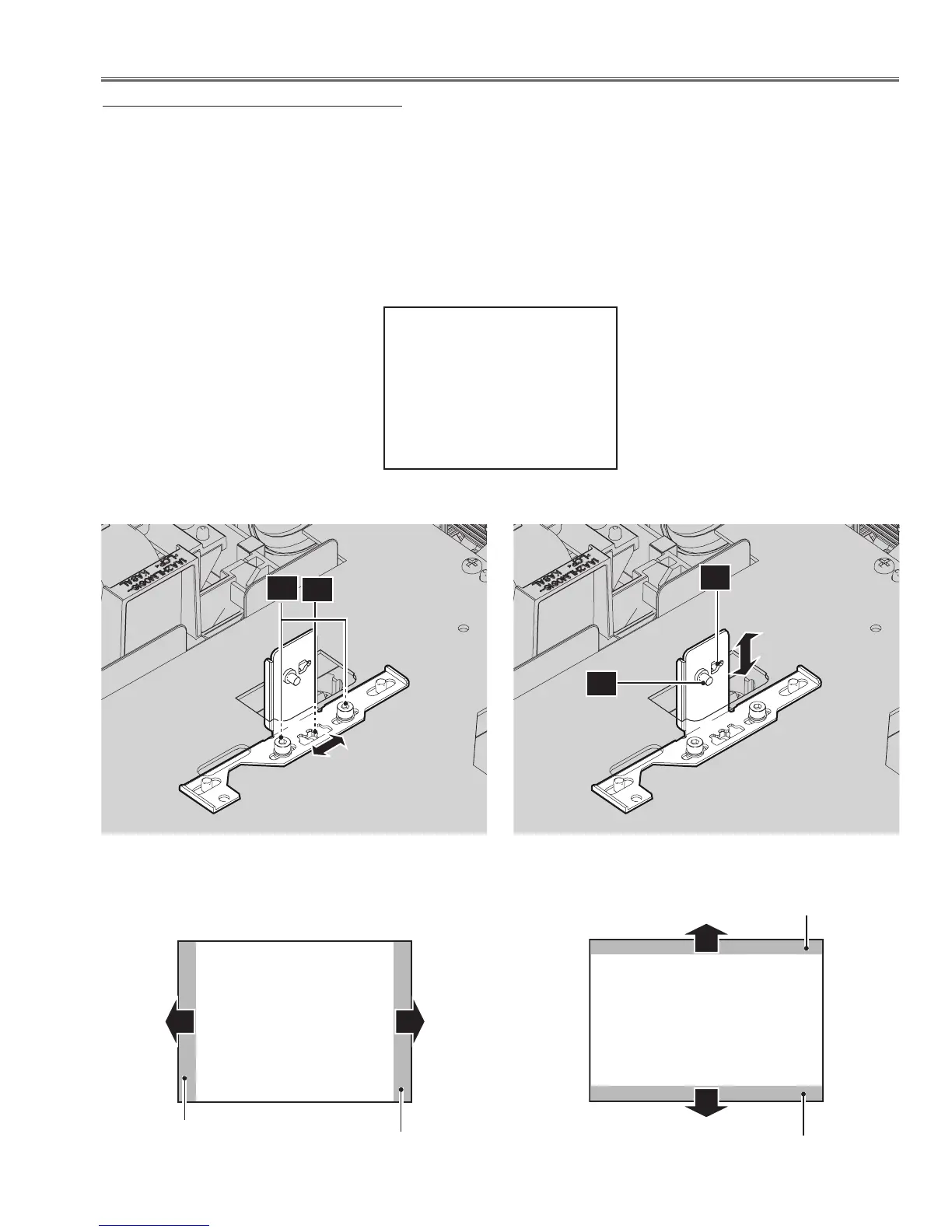

1-4. Condenser lens adjustment-2
1
Move the condenser lens to remove the color shading on the top/bottom or
left/right of the screen.
1) Insert a slot driver into the slot B and turn it to move the image horizon-
tally as shown in Fig.1-5.
2) Insert a slot driver into the slot D and turn it to move the image vertically
as shown in Fig.1-6.
2 Tighten screws A and C to fix the Condenser lens.
(Target screen image)
Fig.1-7 Fig.1-8
White
Cyan/Magenta Magenta/Cyan
Magenta/Cyan
Cyan/Magenta
A
B
C
D
