Sanyo PLC-XM100L Service Manual

-32-
Optical Parts Disassembly

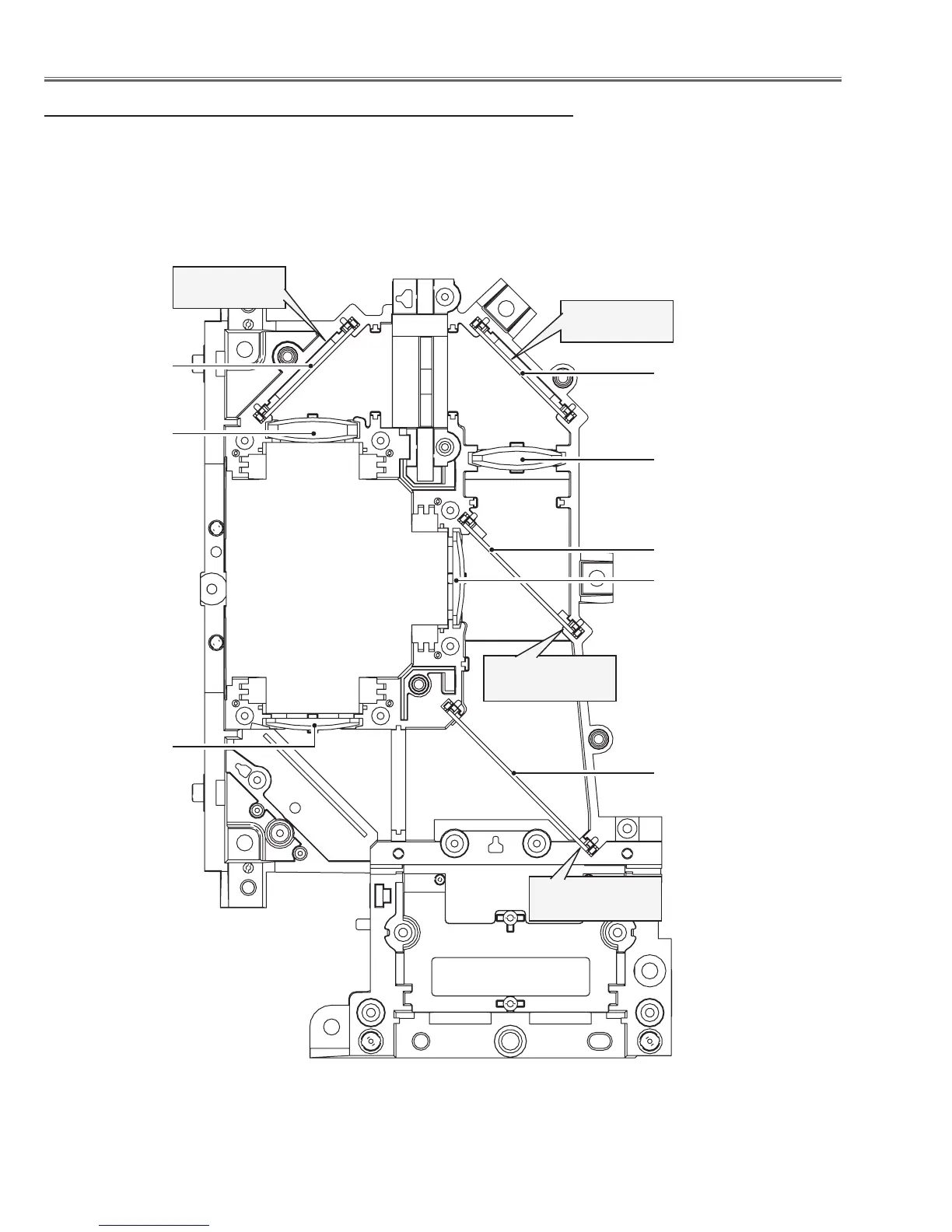

5-2. Optical Parts in the Optical Unit
Condenser lens(R)
Dichroic mirror(B)
Mirror(R)
Condenser lens(B)
Mirror(R)
Relay lens(In)
Condenser lens(G)
Dichroic mirror(G)
When mounting or assembling the optical parts in the optical unit, the parts must be mounted in the specified location
and direction as shown in the figure below.
Point marker
comes this side up
Point marker
comes this side up
Marking behind
the mirror
Marking behind
the mirror

Sanyo PLC-XM100L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
