Sanyo PLC-XP46 Service Manual

-15-
Optical Parts Disassemblies

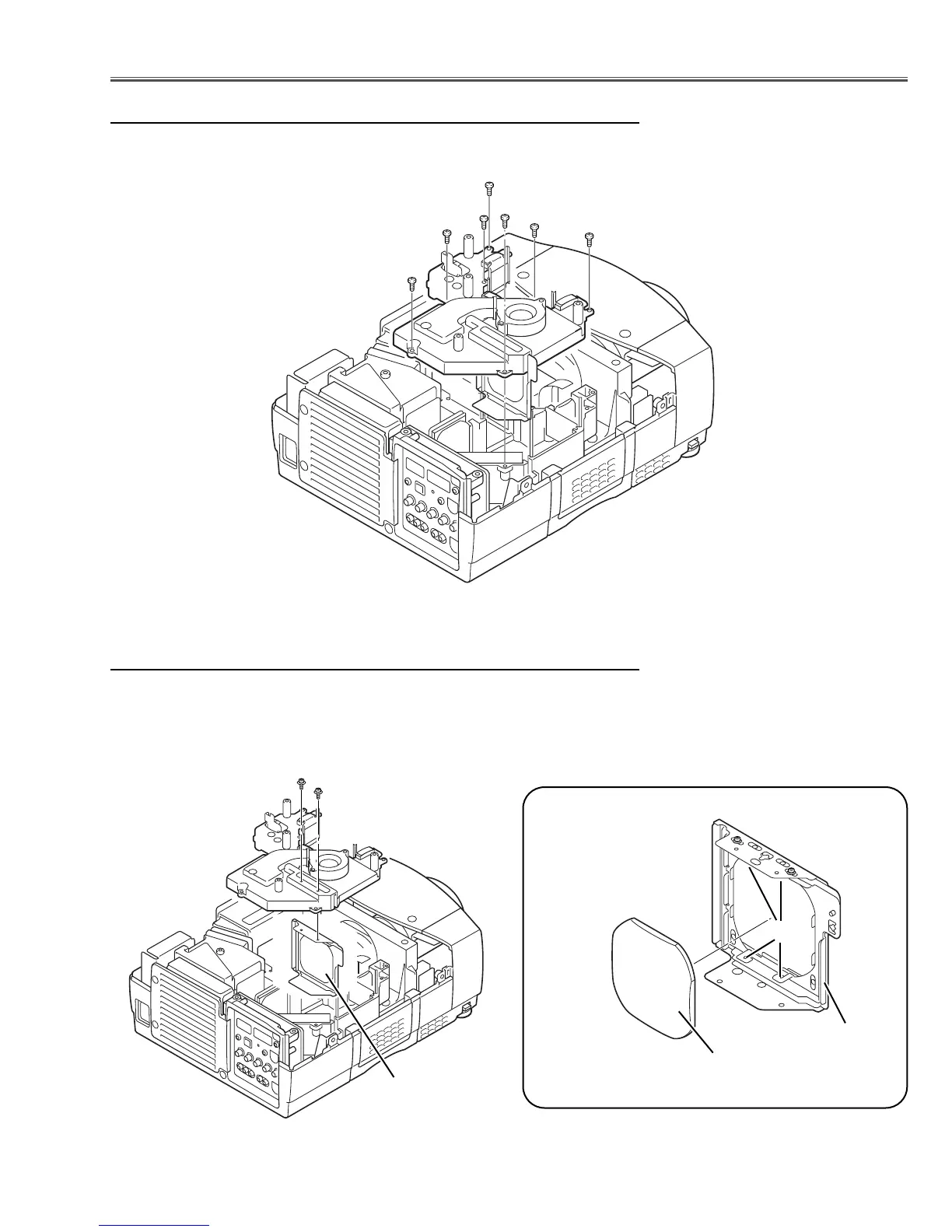

1 Remove 7 screws to take the Optical Unit Top off upward.
Optical Unit Top removal
1 Remove 2 hex screws A and take the Condenser Lens ass’y.
2 Release 4 hooks B to take the Lens off from the holder.
A
Fig.6-2
Fig.6-
1
B
Holder
Condenser Lens
A
Condenser Lens disassembly
* Lens should be placed
as the flat surface side
comes to the holder
side.
Condenser Lens
Fig.5
