Installation
Connecting to a Computer
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting
cables.

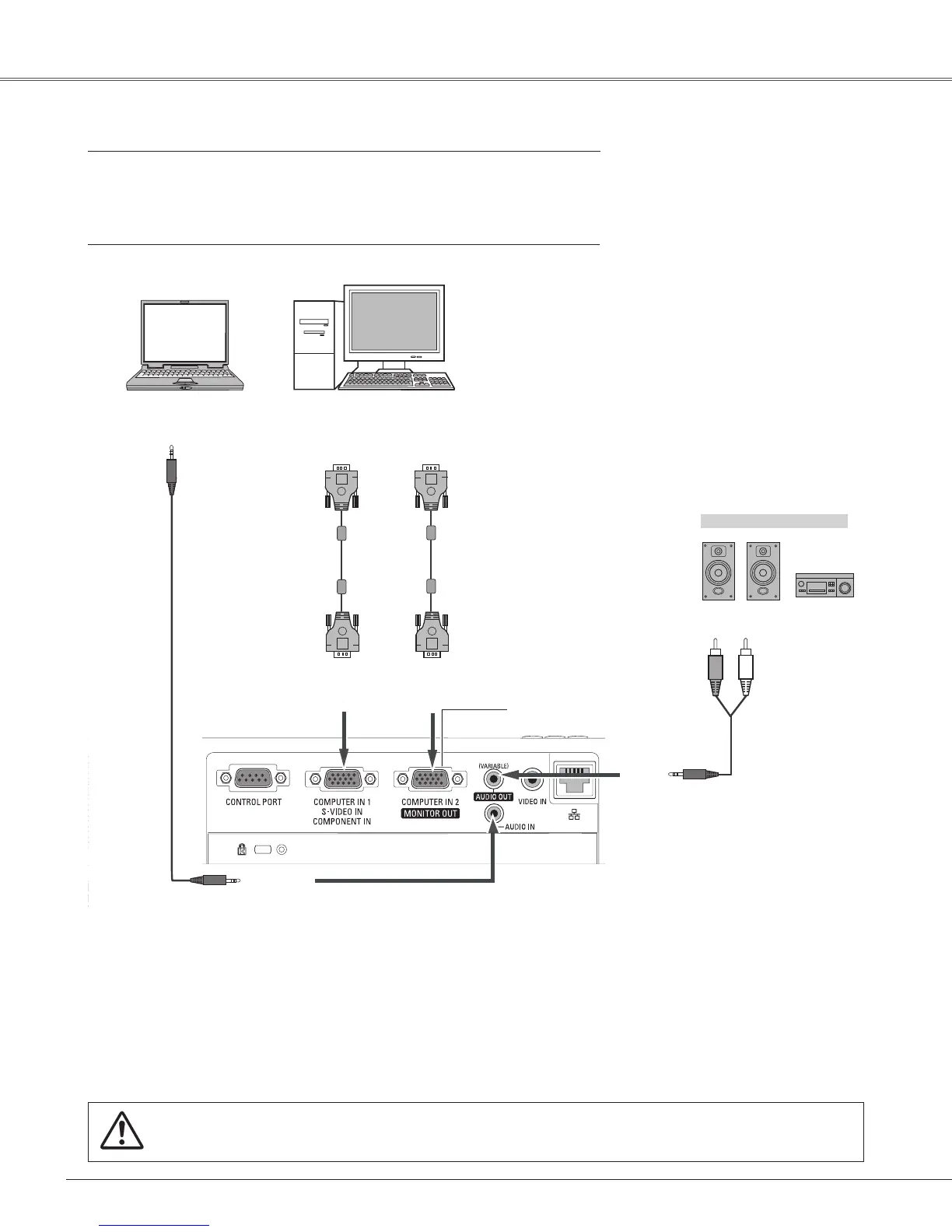

Cables used for connection
•VGACables(MiniD-sub15pin)*(Only one cable is supplied.)
•AudioCables
(*One cable is supplied; other cables are not supplied with the projector.)
Note:
 •InputsoundtotheAUDIOINterminalwhenusingtheCOMPUTERIN1/S-VIDEOIN/COMPONENTIN
and the COMPUTER IN 2/MONITOR OUT terminals as input.
 •WhentheAUDIOOUTisplugged-in,theprojector'sbuilt-inspeakerisnotavailable.
•Whenthecableisofthelongervariety,itisadvisabletousetheCOMPUTERIN1/S-VIDEOIN/COMPONENTINand
not the COMPUTER IN 2/MONITOR OUT.
External Audio Equipment
Audio cable
(stereo)
Audio cable
(stereo)
Audio Output
AUDIO IN
AUDIO OUT
(stereo)
Audio Input
Monitor Input
or
Monitor Output
COMPUTER IN 2 /
MONITOR OUT
VGA
cable
COMPUTER IN 1
/ S-VIDEO IN
/COMPONENT IN
VGA
cable
Monitor
Output
This terminal is switchable.
Set up the terminal as
either Computer input or
Monitor output. (See Page
49.)
