Part Names and Functions

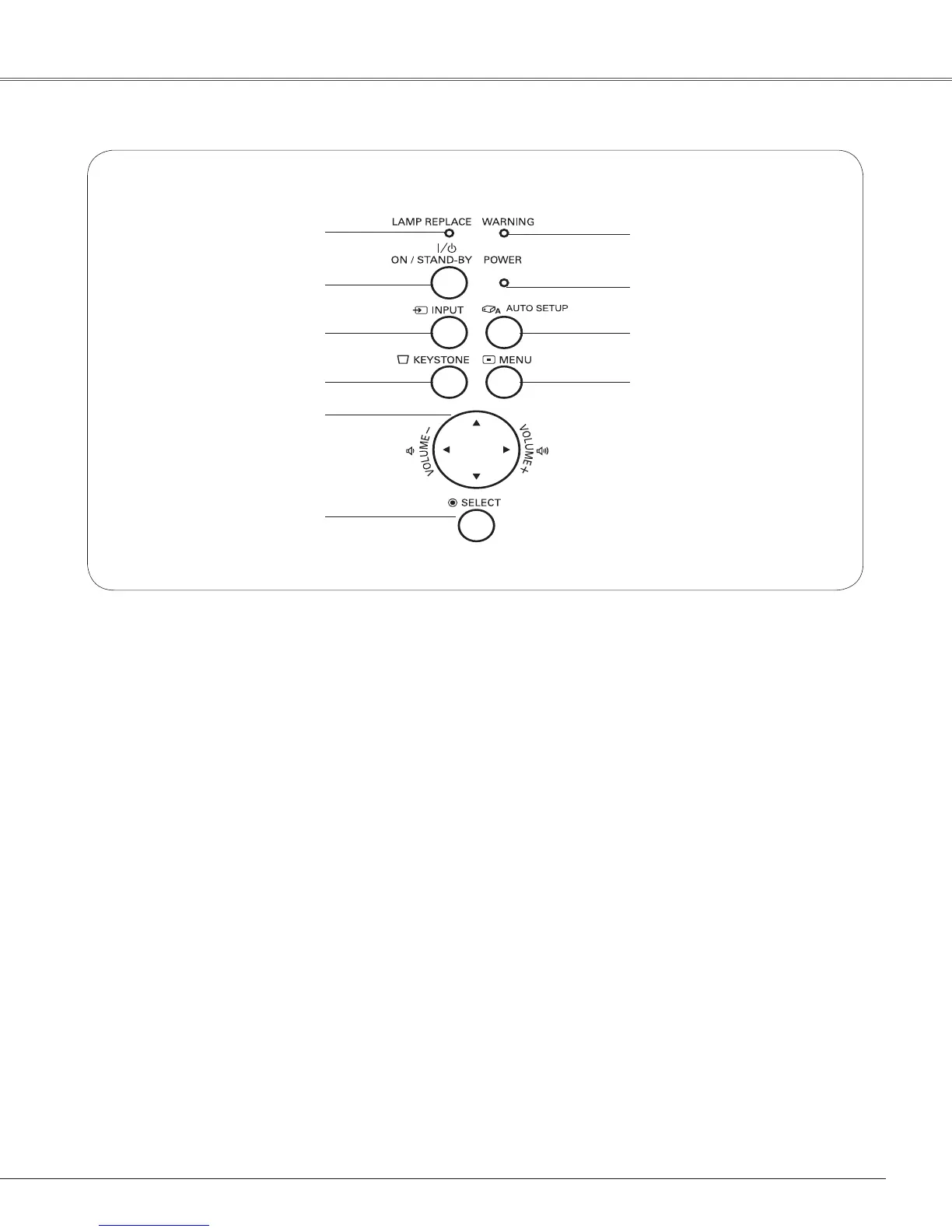

Top Control
①
②
④
⑥
⑦
⑧
① LAMP REPLACE indicator
Lights yellow when the projection lamp reaches its
end of life (pp.57, 65).
⑦ WARNING indicator
– Lights red when the projector detects an abnormal
condition.
– Blinks red when the internal temperature of the
projector exceeds the operating range (pp.54, 65).
② ON/STAND–BY button
Turn the projector on or off (pp.19–20).
⑧ POWER indicator
– Lights red when the projector is in stand-by mode.
– Lights green during operations.
– Blinks green in the Power management mode (p.48).
③ INPUT button
Select an input source (pp.27, 36–37).
⑩ MENU button
Open or close the On-Screen Menu (p.21).
⑤ POINT▲▼◄► (VOLUME +/–) buttons
– Select an item or adjust the value in the On-Screen
Menu (p.21).
– Pan the image in the Digital zoom + mode (p.35).
– Adjust the volume level (Point ◄► buttons) (p.24).
③
⑤
⑨ AUTO SETUP button
Correct vertical keystone distortion and adjust
computer display parameters such as Fine sync.,
Total dots, and Picture position (pp.23, 43).
⑨
⑩
⑥ SELECT button
– Execute the selected item (p.21).
– Expand or compress the image in the Digital zoom
mode (p.35).
④ KEYSTONE button
Correct keystone distortion (pp.23, 44).
