9
Kensington Security Slot
This slot is for a Kensington lock used to deter
theft of the projector.
* Kensington is a registered trademark of ACCO Brands
Corporation.
Bottom
Back
① Infrared Remote Receiver
② Focus Ring
③ Projection Lens
④ Zoom Lever
⑤ Lens Cap
⑥ Top Controls and Indicators
⑦ Air Intake Vent
⑧ Exhaust vent
⑨ Speaker
⑩ Air Intake Vent (back and bottom)
⑪ Terminals and Connectors
⑫ Power Cord Connector
⑬ Lamp Cover
⑭ Filters
⑮ Adjustable Feet
⑬
⑫⑩
CAUTION
Hot air is exhausted from the exhaust
vents. Do not put heat-sensitive objects
near this side.

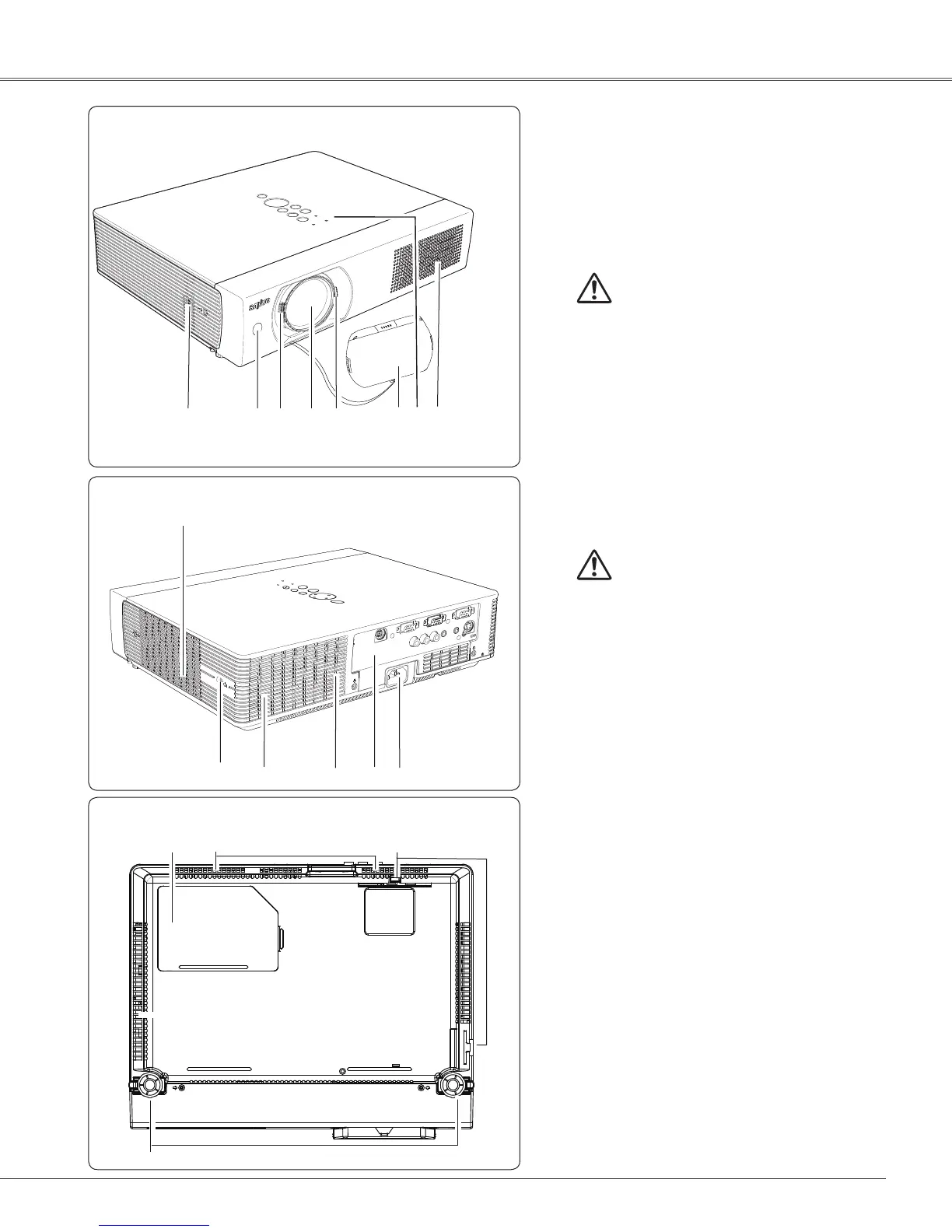

Part Names and Functions
⑪
⑭
⑧
⑨
⑩
CAUTION
Do not turn on a projector with lens cap
attached. High temperature from light
beam may damage lens cap and result in
fire hazard.
⑮
Front
⑤② ③ ④① ⑥ ⑦⑦
