Installation

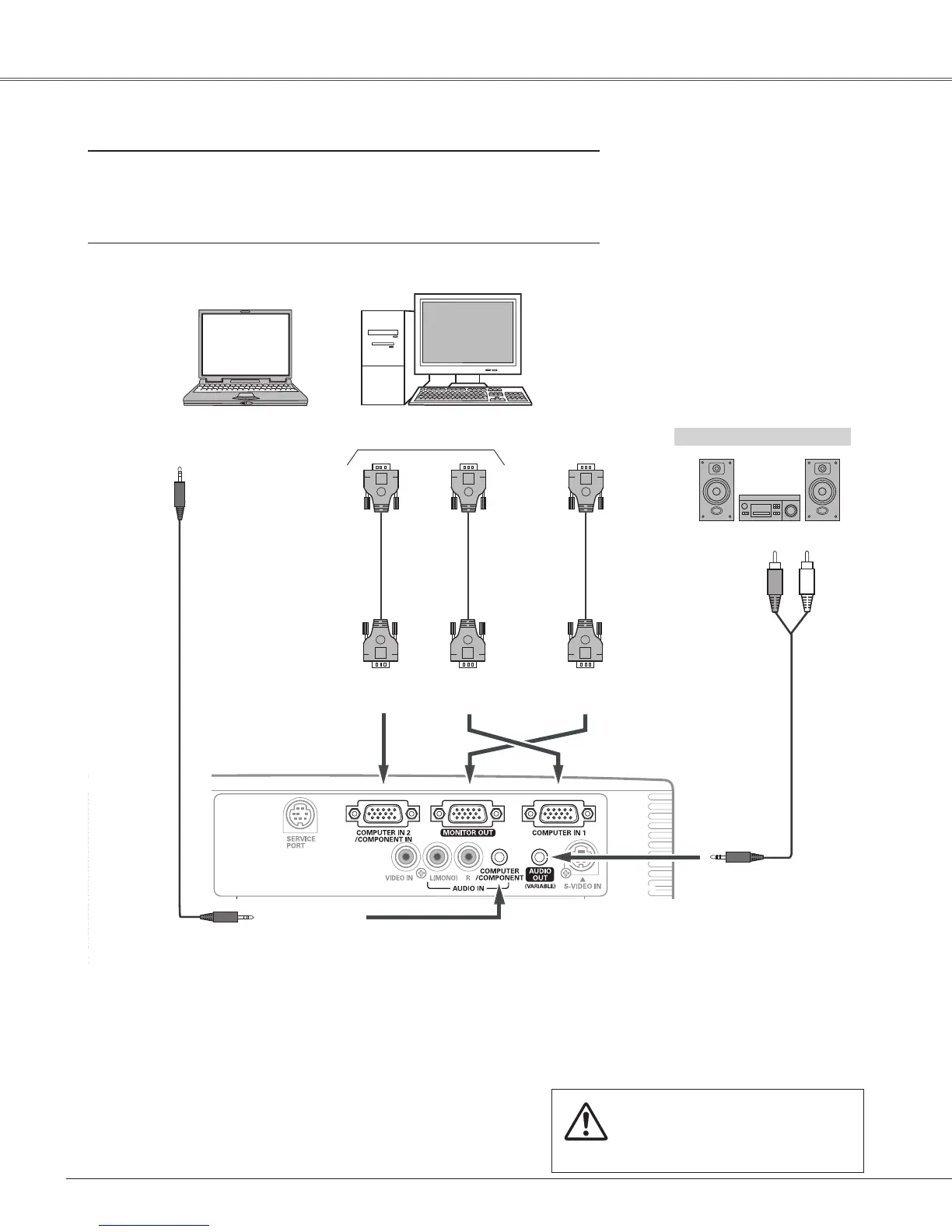

Connecting to a Computer
Cables used for connection
• VGA Cable (Mini D-sub 15 pin)*
• Audio Cables
(*One cable is supplied; other cables are not supplied with the projector.)
External Audio Equipment
Audio cable
(stereo)
Audio Output
COMPUTER
/COMPONENT
AUDIO IN
AUDIO OUT
(stereo)
Audio Input
COMPUTER IN 1
Notes:
• Input sound to the COMPUTER/COMPONENT
AUDIO IN terminal when using the COMPUTER IN 1
and the COMPUTER IN 2 / COMPONENT IN terminal
as input.
• When the AUDIO OUT is plugged-in, the projector’s
built-in speaker is not available.
Monitor Output Monitor Input
COMPUTER IN 2/
COMPONENT IN
VGA cable
MONITOR
OUT
Audio cable
(stereo)
Unplug the power cords of
both the projector and external
equipment from the AC outlet
before connecting cables.
VGA cable VGA cable
