17
,QVWDOODWLRQ

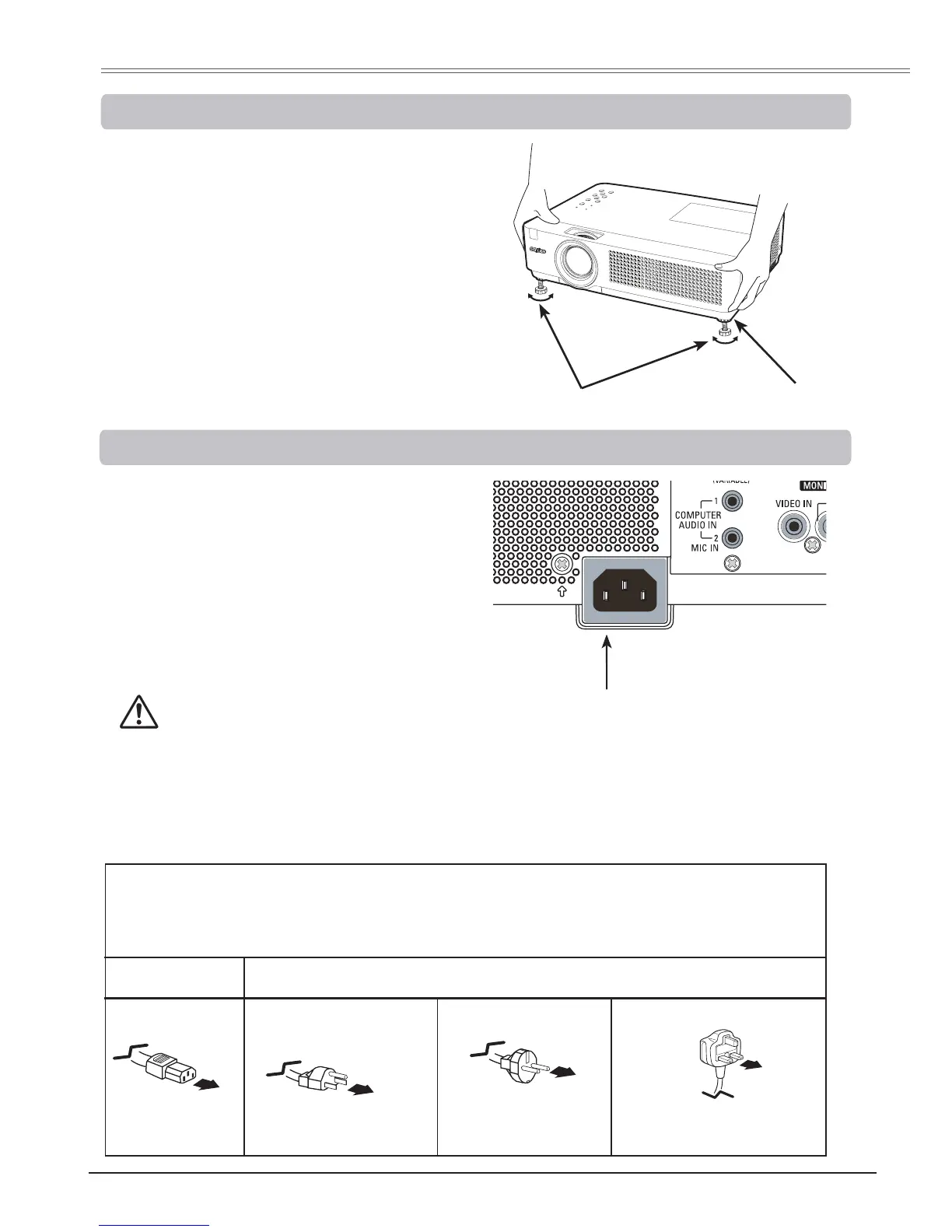

&RQQHFWLQJWKH$&3RZHU&RUG
This projector uses nominal input voltages of
100-240 V AC and it automatically selects the
correct input voltage. It is designed to work with
single-phase power systems having a grounded
neutral conductor. To reduce the risk of electrical
shock, do not plug into any other type of power
system.
If you are not sure of the type of power being
supplied, consult your authorized dealer or
service center.
Connect the projector with all peripheral
equipment before turning the projector on.
To the AC outlet.
9$&
To power cord
connector on your
projector.
Projector side
$&RXWOHWVLGH
To the AC outlet.
9$&
)RUWKH86$DQG&DQDGD
To the AC outlet.
9$&
For Continental Europe
Ground
)RUWKH8.
Ë
Ë
Ground
The AC outlet must be near this equipment
and must be easily accessible.
&$87,21
Connect the AC power cord
(supplied) to the projector.
3Note:
Unplug the AC power cord when the projector is not in use. When this projector is connected
to an outlet with the AC power cord, it is in Stand-by mode and consumes a little electric power.
127(217+(32:(5&25'
AC power cord must meet requirement of the country where you use the projector.
Confirm the AC plug type with the chart below and proper AC power cord must be used.
If supplied AC power cord does not match your AC outlet, contact your sales dealer.
$GMXVWDEOH)HHW
Projection angle can be adjusted up to 12.0
degrees with the adjustable feet.
Lift the front of the projector and press the feet
lock latches on both side of the projector.
Release the feet lock latches to lock the
adjustable feet and rotate the adjustable feet to
a proper height and tilt.
Keystone distortion can be adjusted
automatically with the Auto setup function or
manually by using the remote control or the
menu operation (see pages 23, 35, 43).
Adjustable Feet
Feet Lock Latches
