Maintenance and Cleaning
5(&200(1'$7,21
 :HUHFRPPHQGDYRLGLQJGXVW\VPRN\
HQYLURQPHQWVZKHQ\RXRSHUDWHWKH
SURMHFWRU8VDJHLQWKHVHHQYLURQPHQWV
PD\FDXVHSRRULPDJHTXDOLW\
When using the projector under dusty or
smoky conditions, dust may accumulate
on a lens, LCD panels, or optical elements
inside the projector degrading the quality of a
projected image. When the symptoms above
are noticed, contact your authorized dealer or
service center for proper cleaning.
Be sure to reset the Filter counter after replacing
the filter.
Press the MENU button to display the
2Q6FUHHQ0HQX8VHWKH3RLQWŸź
buttons to select Setting and then press the
3RLQWŹEXWWRQRUWKH6(/(&7EXWWRQ
Use the Point Ÿź buttons to select Filter
counter and then press the Point Ź or the
SELECT button. Use the Point Ÿź buttons
or the SELECT button to select Filter
counter reset and then press the SELECT
button. )LOWHUFRXQWHU5HVHW" appears.
Select <HV to continue.
5HVHWWLQJWKH)LOWHU&RXQWHU
Filter counter reset
)LOWHUFRXQWHU5HVHW"
appears.
Select <HV, then
another confirmation
box appears.
Select <HV again
to reset the Filter
counter.
Another confirmation dialog box appears,
select <HV to reset the Filter counter.

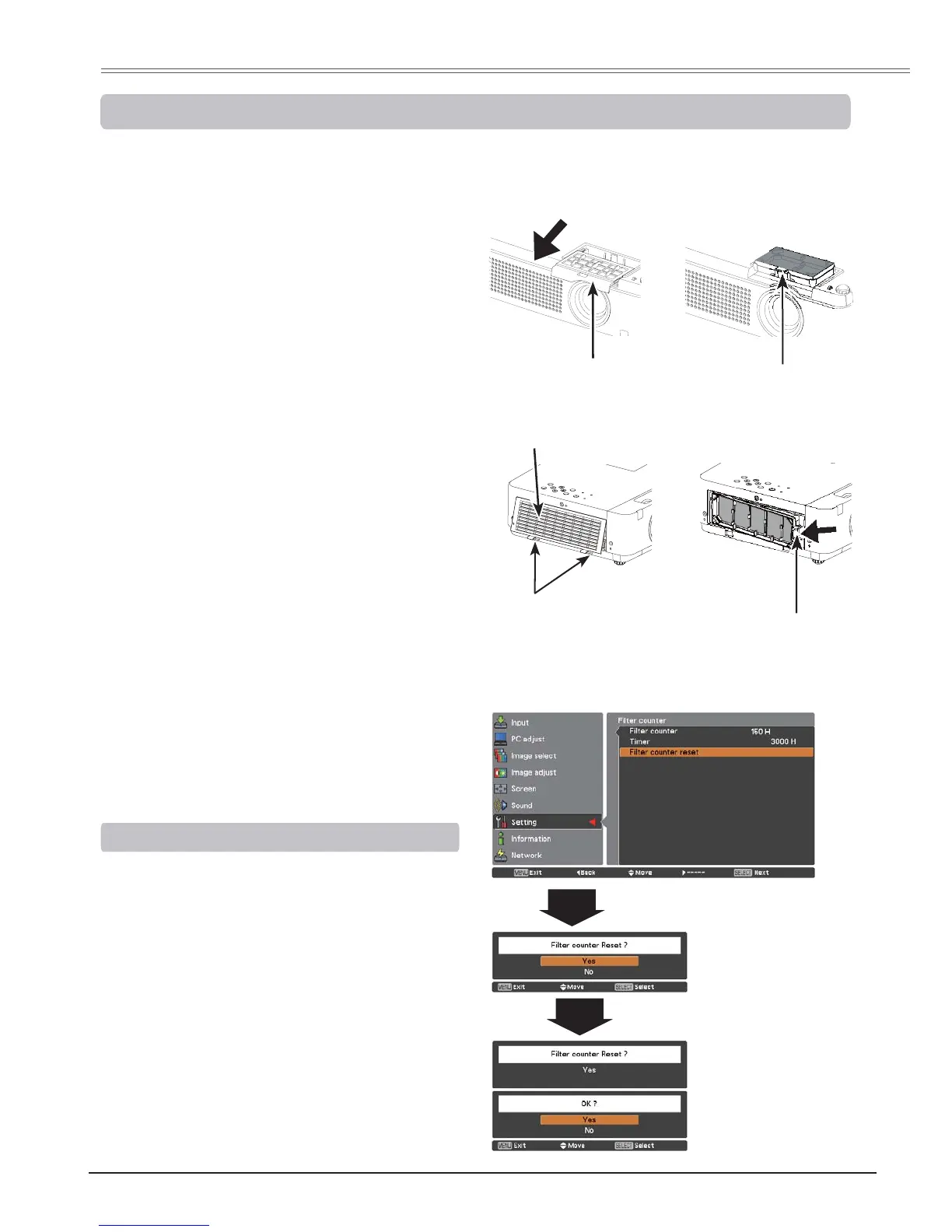

5HSODFLQJWKH)LOWHUV
Turn off the projector and unplug the AC
power cord from the AC outlet.
Turn over the projector and pull out the filter
cover (bottom); pull up the handle and take
out the whole filter (bottom.)
Press up the latches and pull out the filter
cover (side); pull out the handle and take
out the side filter.
1
2
Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter
become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal
heat buildup and adversely affect the life of the projector. If a “Filter warning” icon appears on the
screen, replace the filters immediately. Replace the filters by following the steps below.
Put new filters back into the position. Make
sure that the filters are fully inserted to the
projector.
3
&$87,21
– Do not operate the projector with the
filters removed. Dust may accumulate
on the optical elements degrading
picture quality.
– Do not put anything into the air vents.
Doing so may result in malfunction of
the projector.
– Do not wash the filters with water or
any other liquid matter. Otherwise the
filters may be damaged.
Filter cover (bottom)
Filter cover (side)
Connect the AC power cord to the projector
and turn on the projector.
Latches (press up)
Handle (pull out)
4
Handle (pull up)
1
2
3
Æ
Æ
