-10-

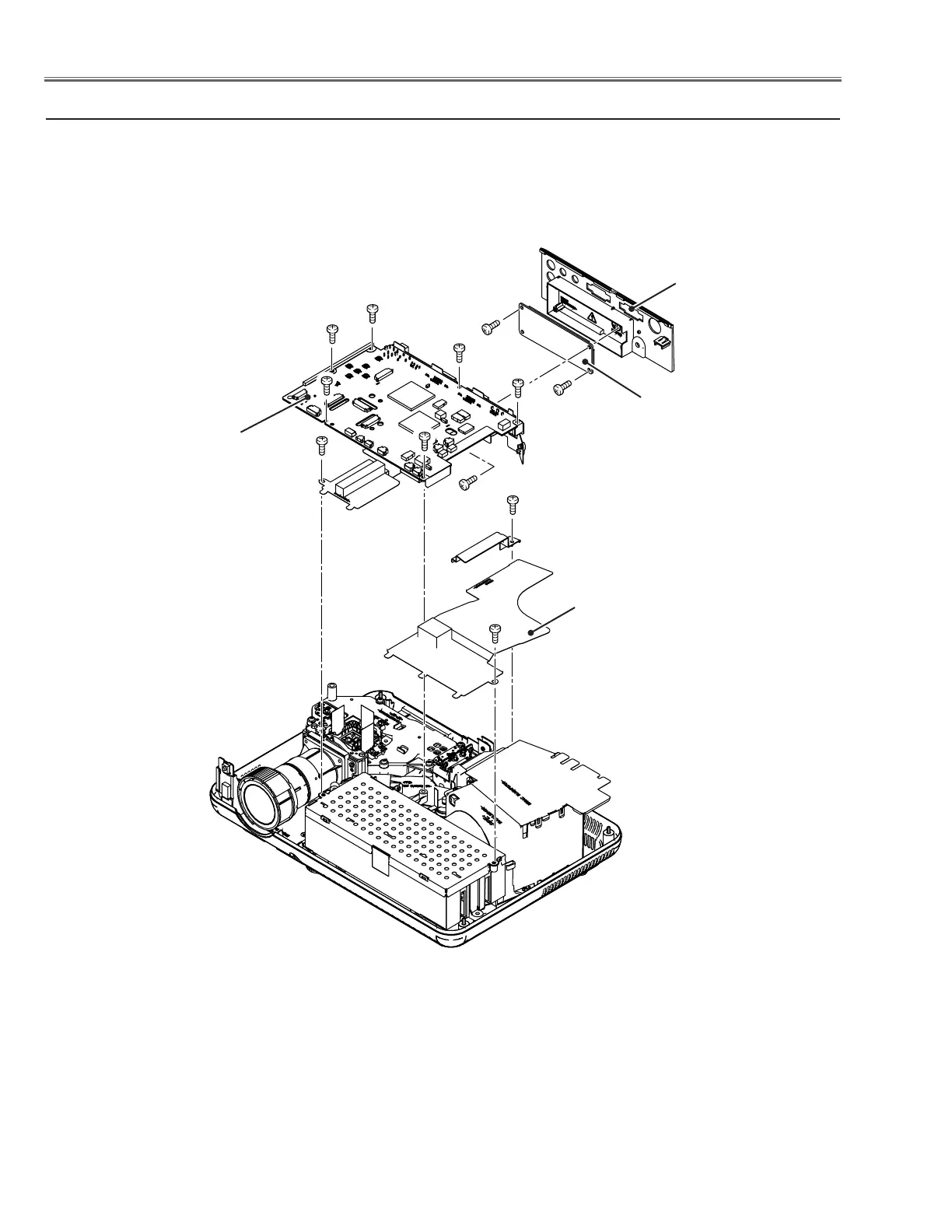

x Main Board, Filter Board removal
Mechanical Disassembly
Main board
AV Panel
(M2.5x6)x6
(T3x8)
Fig.2
Filter Board
(T3x6)x2
(M3x6)
(T3x6)
Shield Plate
(M3x6)
