-11-
Mechanical Disassembly
c Power Board, Ballast Board, Thermal Sw(SW902), Fan(FN902) removal

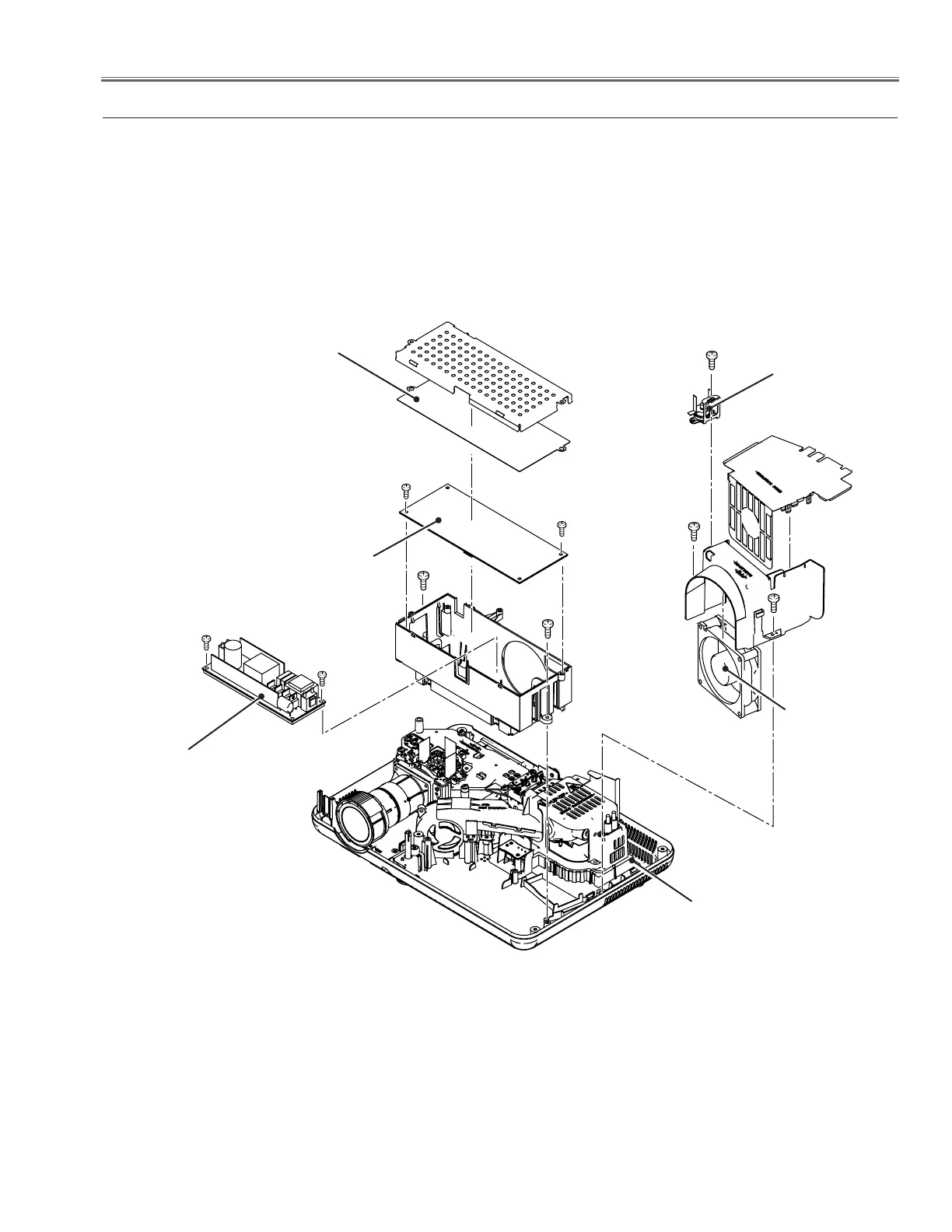

Fig.3
Power board
Ballast board
Isolation sheet
Ballast socket
Thermal switch
(SW902)
(M3x8)
(T3x8)x2
(T3x6)x2
(T3x8)
(T3x6)x2
(T3x8)
FN902
