Installation
Connecting to a Computer
Cables used for connection
• VGA Cables (Mini D-sub 15 pin)*
• Audio Cables (Mini Plug: stereo)
(*One cable is supplied; other cables are not supplied with the projector.)

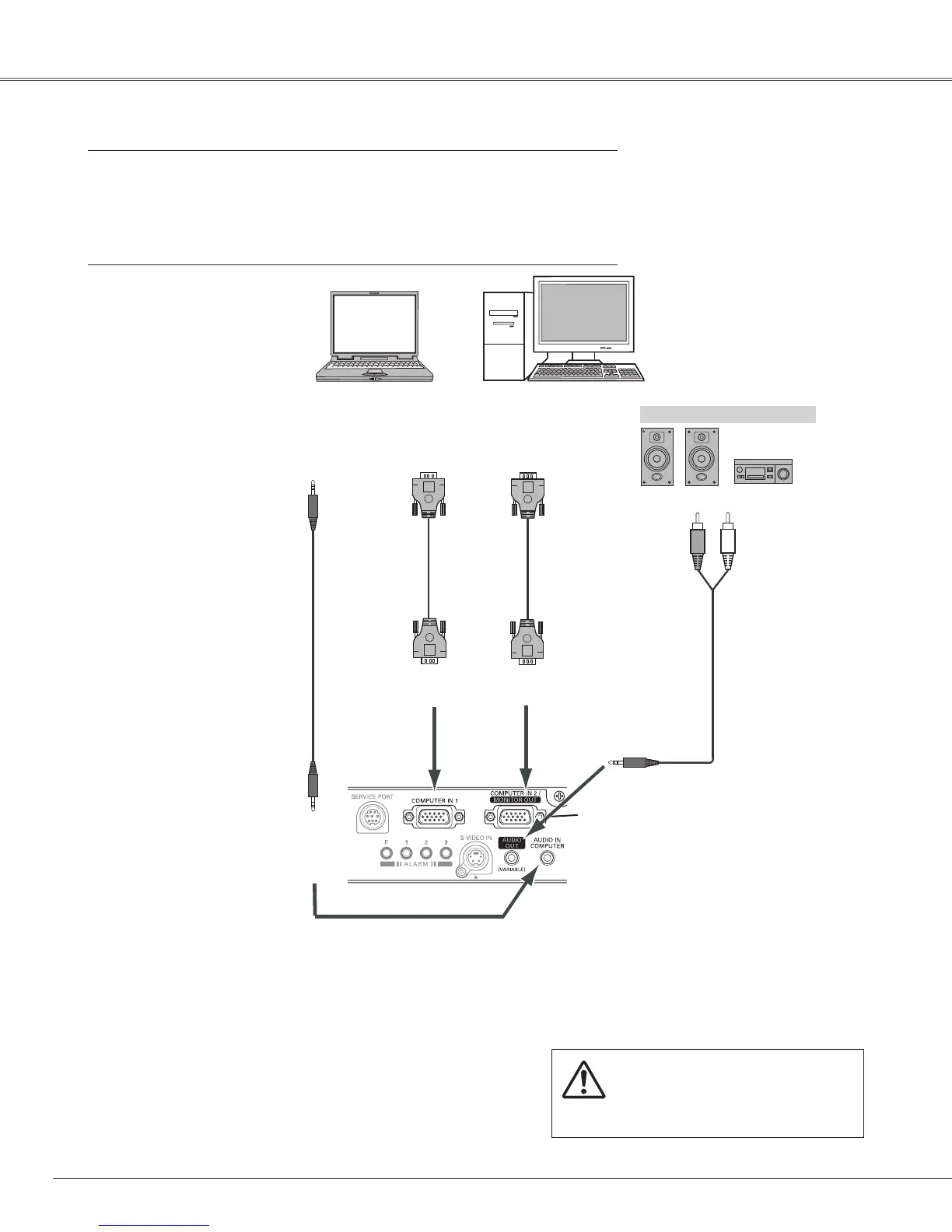

External Audio Equipment
VGA cable
Audio cable
(stereo)
Audio cable
(stereo)
Monitor Output
or
Monitor Input
Audio Output
AUDIO IN
COMPUTER
AUDIO OUT
(stereo)
Audio Input
COMPUTER IN 2/
MONITOR OUT
Unplug the power cords of
both the projector and external
equipment from the AC outlet
before connecting the cables.
✔Note:
• Input sound to the AUDIO IN COMPUTER terminal when
using the COMPUTER IN 1 and the COMPUTER IN 2/
MONITOR OUT terminal as input.
• When the AUDIO OUT is plugged-in, the projector’s
built-in speaker is not available.
• When the cable is of the longer variety, it is advisable to
use the COMPUTER IN 1 and not the COMPUTER IN 2
/MONITOR OUT.
•See page 73 for ordering optional cables.
Monitor Output
COMPUTER IN 1
VGA cable
This terminal is switchable. Set up the
terminal as either Computer input or
Monitor output (see page 49).
