Installation
Connecting to Video Equipment (Component and RGB Scart)
Cables used for connection
• Audio Cables (Mini Plug: stereo, RCA x 2)
• Scart-VGA Cable
• Component Cable
(Cables are not supplied with the projector.)
✔Note:
• When the AUDIO OUT is plugged-in, the projector’s
built-in speaker is not available.
•See page 73 for ordering optional cables.

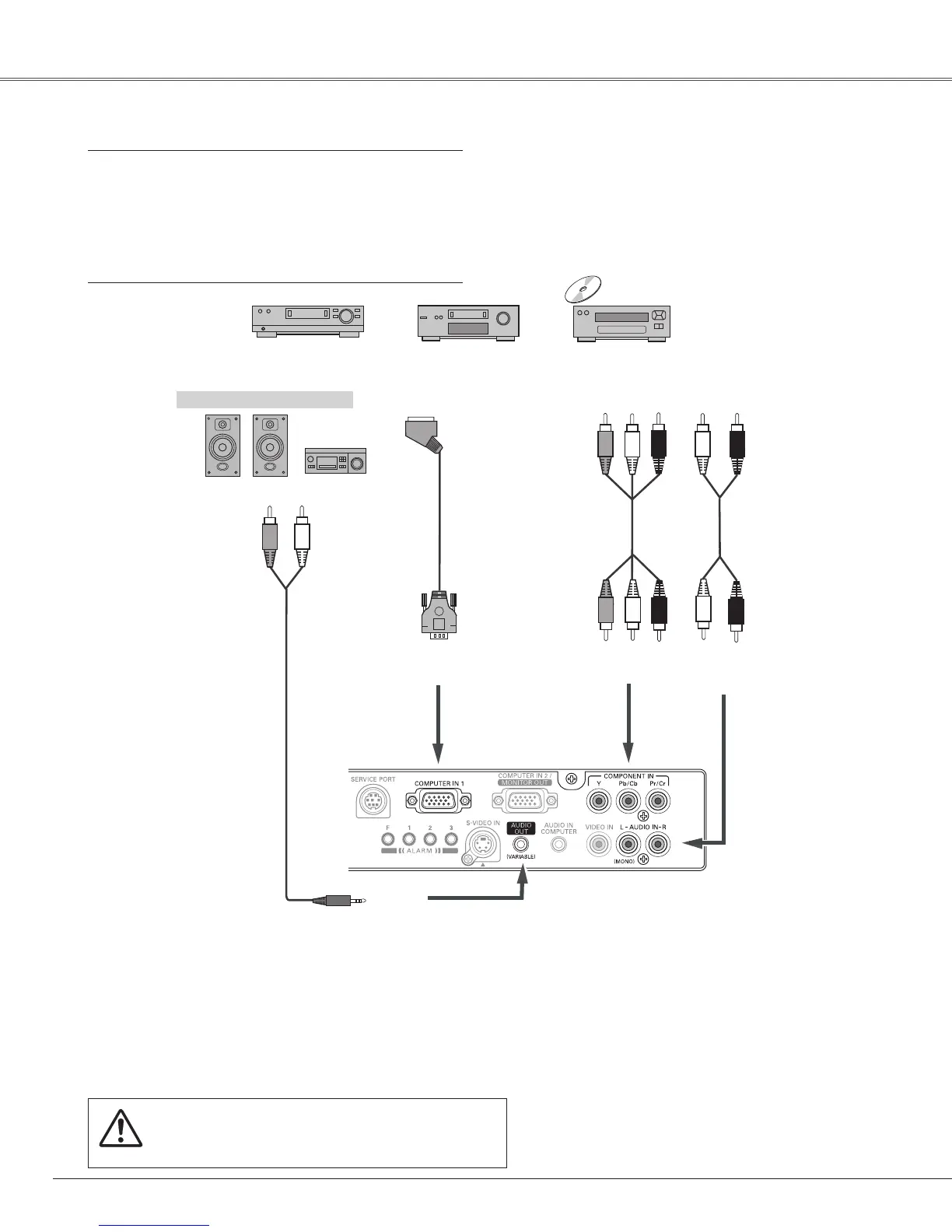

External Audio Equipment
COMPUTER IN 1
Audio cable
(stereo)
Audio cable
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
RGB Scart 21-
pin Output
Audio Output
Scart-VGA
cable
AUDIO OUT
(stereo)
Component
cable
Unplug the power cords of both the projector
and external equipment from the AC outlet
before connecting the cables.
